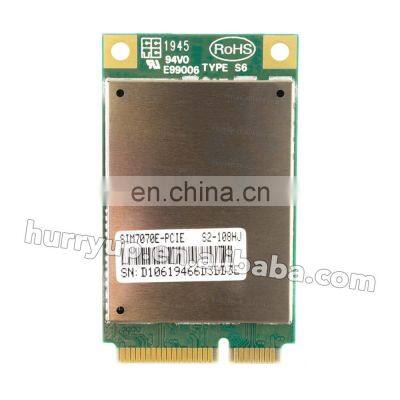

SIMCOM SIM7070 LPWA Module, 4G SIM7070E LTE Module SIM7070G photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Hurryup Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Description
SIM7070-PCIE Series
SIMCom LPWA Module

Product Description
The SIM7070-PCIE series is the LPWA module which supports wireless communication modes of Cat-M/ Cat-NB/GPRS/EDGE.The SIM7070-PCIE series adopts Mini PCIe form factor. It is easy for customers to integrate.
The SIM7070-PCIE series has powerful expansibility with abundant interfaces including UART, USB etc. The SIM7070 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

Key Benefits ● The SIM7070-PCIE series provides deeper coverage enhancement compared to GSM ● The form factor and AT commands of the SIM7070-PCIE series are compatible with SIM7000/SIM900/SIM800F
Module Variant
SIM7070G-PCIE
SIM7070E-PCIE
Form Factor
Mini PCIe
Mini PCIe
Dimensions(mm)
50.8*30*4.9
50.8*30*4.9
Frequency Bands
Cat-M
B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B31/B66/B72/B85
Cat-NB
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B26/B28/B66/B71/B85
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B31/B66/B85
GSM
850/900/1800/1900MHz
850/900/1800/1900MHz
LTE RF Power Class
Class 5 (Typ. 21dbm)
Class 5 (Typ. 21dbm) Class 2@B31&72
GNSS
o
o
Temperature
-40℃ ~ +85℃
-40℃ ~ +85℃
Electrical Features
Supply Voltage Range(V)
3.3~ 4.3, Typ 3.8
3.3~ 4.3, Typ 3.8
Power Consumption (mA)
@Sleep
2
2
@Idle
15
15
Data Transfer
Cat-M(Kbps)
589(DL)/1119(UL)
589(DL)/1119(UL)
Cat-NB(Kbps)
127(DL)/158.5(UL)
127(DL)/158.5(UL)
EGPRS(Kbps)
296(DL)/236.8(UL)
296(DL)/236.8(UL)
Software Features
Protocol
TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTT
TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTT
FOTA
●
●
Firmware Upgrade
USB/FOTA
USB/FOTA
Interfaces
SIM Card
1.8V
1.8V
UART
●
●
USB
●
●
Certification
Regulatory
FCC/IC/CE/RCM/JATE*/TELEC*/NCC*/ ANATEL*/GCF*/PTCRB*/RoHS/REACH
CE/RCM/RoHS/REACH
Carrier
AT&T*/VERIZON*/TMOBILE-US*/SPRINT*/ ROGERS*/TELSTRA*/VDF*/SoftBank*/ DoCoMo*/KDDI*
●: support       o: optional        * : on going
