Home > Industrial Equipment & Components > Fastener & Fitting > Bolts > Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10

Name: Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10
Brand: FLRS
SKU: 171047435

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 thumbnail-1

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 thumbnail-2

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 thumbnail-3

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 photo-1

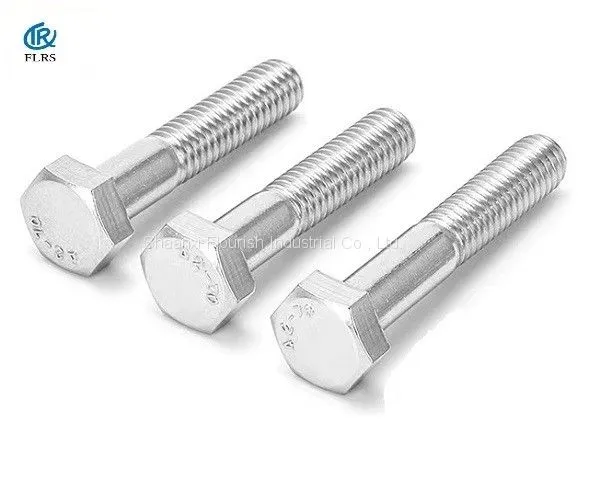

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 photo-2

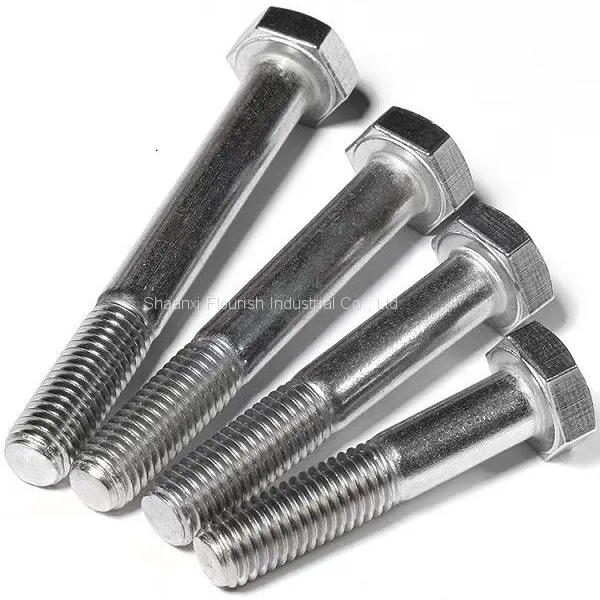

Stainless Steel Hexagon Head Bolts Half Thread DIN931 / M10 photo-3

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

FLRS

Place of Origin:

China

Model Number:

B-078

Contact Supplier Request Quote Chat Now

Shaanxi Flourish Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name FLRS

Place of Origin China

Model Number B-078

Standard Other, DIN,ISO, JIS, EN, BS, SH,ASME Or Customized As Your Request

Product Name:	Hex Head Bolt	Standard:	DIN931
Head Type:	Hex Head	Thread:	Half Thread
Material:	A2-50、A2-70、A4-70、A4-80	Size:	M3-M39
High Light:	Hexagon Head Bolts M10, Half Thread Hexagon Head Bolts, Stainless Steel M10 Hex Head Bolt

Stainless Steel Hexagon Head Bolts Half Thread In Standard DIN931 / M10 Hex Head Bolt

DIN931 hexagonal bolts, also known as external hexagonal bolts, are fasteners consisting of two parts: a hexagonal head and a screw with external threads, which are generally used in conjunction with nuts and are commonly used to fasten connections between two parts with through holes.

DIN931 hexagonal bolts are half thread. partly threaded and partly bare rod. The thread include coarse and fine teeth.

Drawing:

d	P	b	C		da	dw		ds		k						e
		b	C		da	A	B	A	B	A		B		A	B	A	B
		L≤125mm	min	max	max	min		min		min	max	min	max	min		min
M1.6	0.35	9	0.1	0.25	2	2.4	-	1.46	-	0.98	1.22	-	-	3.02	-	3.41	-
M2	0.4	10	0.1	0.25	2.6	3.2	-	1.86	-	1.28	1.52	-	-	3.82	-	4.32	-
M2.5	0.45	11	0.1	0.25	3.1	4.1	-	2.36	-	1.58	1.82	-	-	4.82	-	5.45	-
M3	0.5	12	0.15	0.4	3.6	4.6	-	2.86	-	1.88	2.12	-	-	5.32	-	6.01	-
M3.5	0.6	13	0.15	0.4	4.1	5.1	-	3.32	-	2.28	2.52	-	-	5.82	-	6.58	-
M4	0.7	14	0.15	0.4	4.7	5.9	-	3.82	-	2.68	2.92	-	-	6.78	-	7.66	-
M5	0.8	16	0.15	0.5	5.7	6.9	-	4.82	-	3.35	3.65	-	-	7.78	-	8.79	-
M6	1	18	0.15	0.5	6.8	8.9	-	5.82	-	3.85	4.15	-	-	9.78	-	11.05	-
M7	1	20	0.15	0.5	7.8	9.6	-	6.78	-	4.65	4.95	-	-	10.73	-	12.12	-
M8	1.25	22	0.15	0.6	9.2	11.6	-	7.78	-	5.15	5.45	-	-	12.73	-	14.38	-
M10	1.5	26	0.15	0.6	11.2	15.6	-	9.78	-	6.22	6.58	-	-	16.73	-	18.9	-
M12	1.75	30	0.15	0.6	13.7	17.4	-	11.7	-	7.32	7.68	-	-	18.67	-	21.1	-
M14	2	34	0.15	0.6	15.7	20.5	-	13.7	-	8.62	8.98	-	-	21.67	-	24.49	-
M16	2	38	0.2	0.8	17.7	22.5	22	15.7	15.6	9.82	10.2	9.71	10.3	23.67	23.16	26.75	26.17
M18	2.5	42	0.2	0.8	20.2	25.3	24.8	17.7	17.6	11.3	11.7	11.2	11.9	26.67	26.16	30.14	29.56
M20	2.5	46	0.2	0.8	22.4	28.2	27.7	19.7	19.5	12.3	12.7	12.2	12.9	29.67	29.16	33.53	32.95
M22	2.5	50	0.2	0.8	24.4	30	29.5	21.7	21.5	13.8	14.2	13.7	14.4	31.61	31	35.72	35.03
M24	3	54	0.2	0.8	26.4	33.6	33.2	23.7	23.5	14.8	15.2	14.7	15.4	35.38	35	39.98	39.55
M27	3	60	0.2	0.8	30.4	-	38		26.5	-	-	16.7	17.4	-	40	-	45.2
M30	3.5	66	0.2	0.8	33.4	-	42.7		29.5	-	-	18.3	19.1	-	45	-	50.85
M33	3.5	72	0.2	0.8	36.4	-	46.6		32.4	-	-	20.6	21.4	-	49	-	55.37
M36	4	78	0.2	0.8	39.4	-	51.1		35.4	-	-	22.1	22.9	-	53.8	-	60.79
M39	4	84	0.3	1	42.4	-	55.9		38.4	-	-	24.6	25.4	-	58.8	-	66.44

Marking method of DIN931 hexagonal bolts:

Example of marking of DIN931 external hexagon bolts.

The hexagon head bolts with thread size d=M12, nominal length L=80, performance grade A4-80 and product grade A are marked as

SUS316 hexagon bolts DIN931-M12*80-A

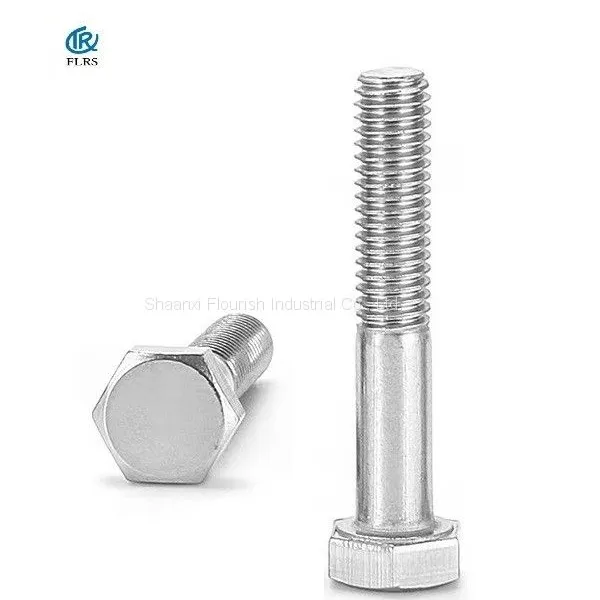

Product photo:

Application:

Hexagonal bolt connection, simple assembly, easy disassembly, high efficiency, and wide application, mainly used in various mechanical equipment, electronic products, communication equipment, furniture equipment, construction industry and other industries of production, installation, maintenance, etc..
