Help CenterHot Dip Galvanized Hex Head Bolt High Strength Carbon Steel Bolt Full Thread
Related Products
-
M52 Carbon Steel Fully Threaded Hex Flange Bolt With WasherNegotiableMOQ: 100 Pieces -
DIN931 Zinc Plated Carbon Steel Hex Head Bolt Grade 4.8NegotiableMOQ: 100 Pieces
-
DIN931 Grade 8.8 Hexagon Head Bolt Fluorocarbon CoatingNegotiableMOQ: 100 Pieces
-
Carbon Steel Zinc Plated Threaded Hex Head Cap Screw DIN933NegotiableMOQ: 100 Pieces
-
Carbon Steel DIN933 M20 Hex Head Cap Screw HDG SurfaceNegotiableMOQ: 100 Pieces
| Name: | Hex Head Bolt | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Hot Dip Galvanized | Standard: | ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO |
| Head Type: | Hex. Head | Thread: | Full Thread |
| High Light: | Hot Dip Galvanized Hex Head Bolt, Full Thread Hex Head Cap Bolt, Hex Carbon Steel Bolt | ||

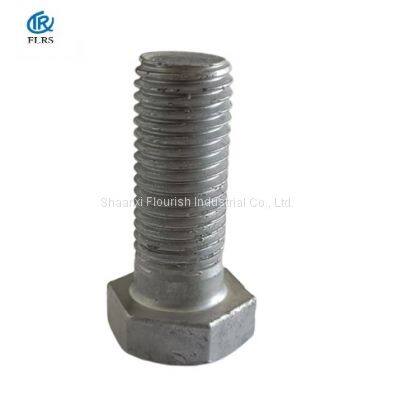

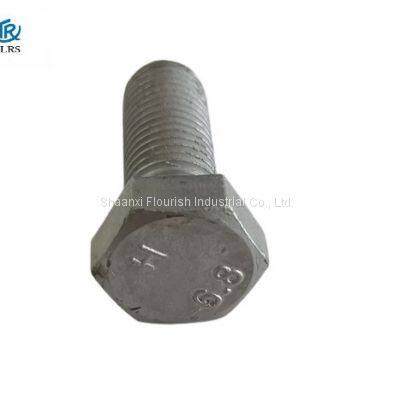

Hot Dip Galvanized Hex Head Bolt For High Strength / HDG. Carbon Steel Hex Head Bolt Full Thread
Hex. bolt: A type of fastener consisting of two parts: the head and the screw (cylinder with external thread), which is used to fasten two parts with through holes in conjunction with a nut.
Hex. bolts
This form of connection is called a bolt connection. If the nut is screwed off the bolt, the two parts can be separated, so the bolt connection is a removable connection.
The performance level of bolts for steel connection is 3.6, 4.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 and other 10 levels, of which 8.8 and above bolts are made of low carbon alloy steel or medium carbon steel and heat treated (quenched and tempered), commonly known as high strength bolts, and the rest are commonly known as ordinary bolts.
| d | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 |
| P | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
| s | 7 | 8 | 10 | 13 | 16 | 18 | 22 | 24 | 30 | 36 | 46 | 55 |
| k | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 12.5 | 15 | 18.7 | 22.5 |
