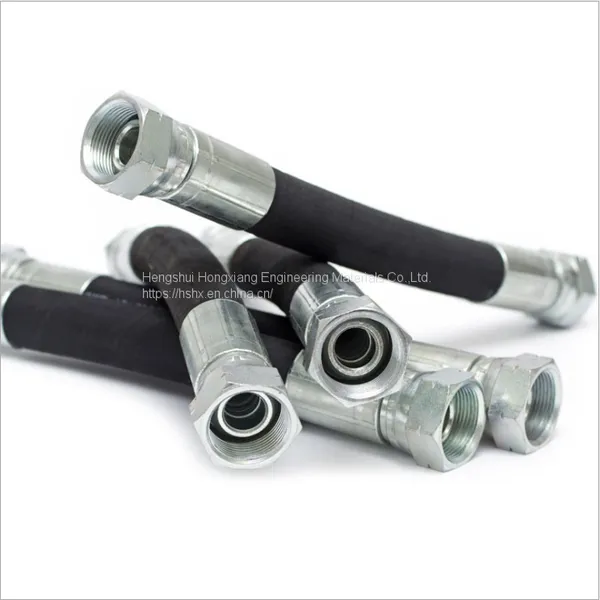

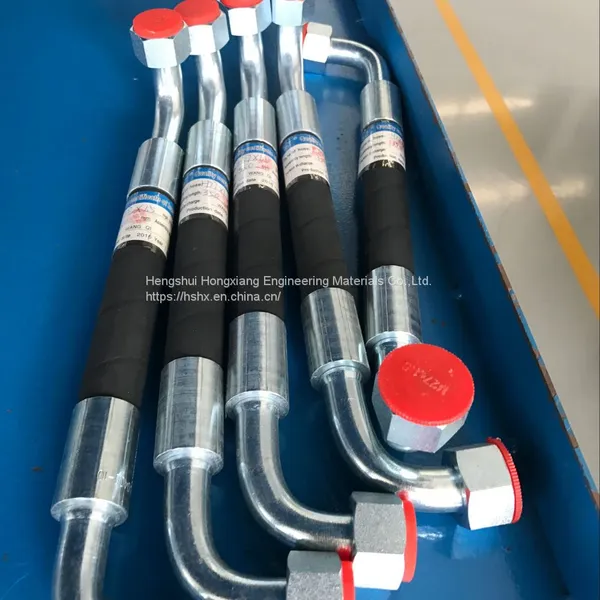

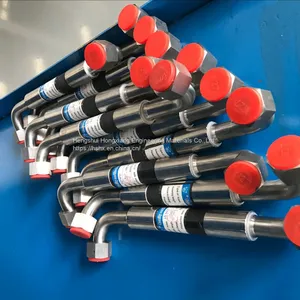

SAE 100 R13 Steel Wire Spiraled Hydraulic Hose
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | Hongxiang | Place of Origin | China | |
| Model Number | SAE 100 R13 |
Product Description

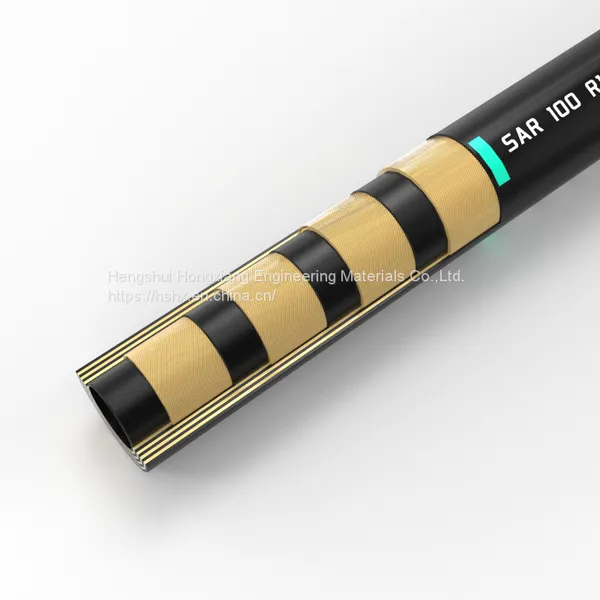

SAE 100 R13 steel wire spiral hydraulic hose consists of three parts: inner tube, reinforcement layer and outer cover layer.
The inner tube is made of high-quality oil-resistant synthetic rubber, which enables it to convey petroleum-based hydraulic oil;
The reinforcement layer is made of six layers of high-strength thick helical steel wires in alternating directions, so that the hose can withstand extremely high pressure;
The outer cover is made of high-quality synthetic rubber, which is wear-resistant, corrosion-resistant, weather-resistant, ozone-resistant, cutting-resistant, aging-resistant and sun-resistant.
With high working pressure, it is usually used for conveying hydraulic fluids, such as hydraulic oil, lubricating oil, emulsion, glycol and water.
Applicable Specification: SAE 100 R13
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight | ||||
| DN | inch | mm | mm | mm | bar | psi | bar | psi | mm | Kg/mt |
| -12 | 3/4 " | 19.1 | 28.7 | 32.0 | 350 | 5075 | 1400 | 20300 | 240 | 1.64 |
| -16 | 1 " | 25.4 | 35.8 | 39.0 | 350 | 5075 | 1400 | 20300 | 300 | 2.13 |
| -20 | 1-1/4 " | 31.8 | 47.8 | 50.8 | 350 | 5075 | 1400 | 20300 | 420 | 3.87 |
| -24 | 1-1/2 " | 38.1 | 54.8 | 58.0 | 350 | 5075 | 1400 | 10152 | 500 | 4.74 |
| -32 | 2 " | 50.8 | 67.8 | 72.0 | 350 | 5075 | 1400 | 10152 | 640 | 6.75 |
