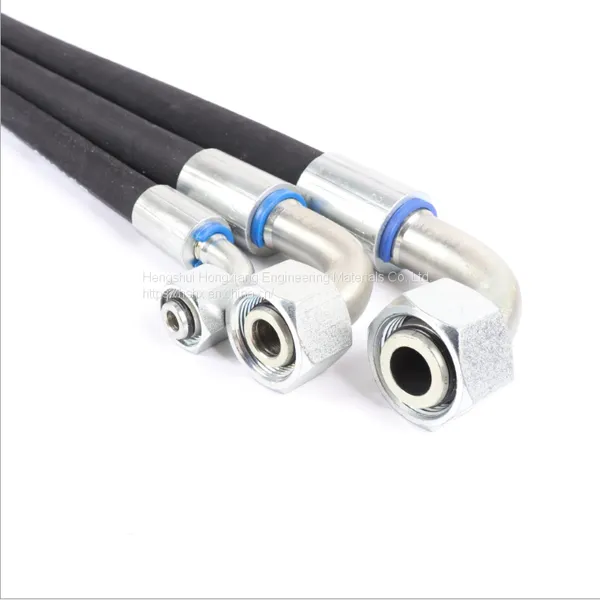

Help CenterDIN EN853 1SN/ SAE100 R1AT Steel Wire Braided Hydraulic Hose
Related Products
-
DIN EN853 2SN/ SAE100 R2AT Steel Wire Braided Hydraulic HoseUS$ 1 - 30MOQ: 100 Meters -
DIN EN857 1SC Steel Wire Braided Hydraulic HoseUS$ 1 - 30MOQ: 100 Meters
-
DIN EN857 2SC Steel Wire Braided Hydraulic HoseUS$ 2 - 30MOQ: 100 Meters
-
SAE 100 R5 Hydraulic Flexible Rubber HoseNegotiableMOQ: 100 Meters
-
SAE 100 R16 Steel Wire Reinforced Hydraulic HoseNegotiableMOQ: 100 Meters
The high pressure steel wire braided hose is mainly used in medium and high pressure hydraulic systems. The EN853 1SN steel wire reinforced hydraulic hose is reinforced by a layer of high-strength steel wire, which can work well in high pressure environments.
High pressure one steel wire braided hydraulic hose can be used in mining hydraulic fluids, cranes, mining equipment, injection molding machinery, agricultural machinery and various machinery fields.
High pressure one steel wire braided hydraulic hose is also commonly used for conveying glycol, mineral oil, fuel, lubricating oil, emulsion, etc.
In addition, since the surface of the steel wire braided hydraulic hose can be divided into two types: smooth surface and fabric surface, it has weather resistance, ozone resistance, aging resistance and sunlight resistance.
Applicable Specification: DIN EN853 1SN/ SAE100 R1AT/ ISO 1436-1SN
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight | ||||
| DN | inch | mm | mm | mm | bar | psi | bar | psi | mm | Kg/mt |
| -03 | 3/16 " | 5.0 | 9.4 | 11.4 | 250 | 3625 | 1000 | 14500 | 90 | 0.17 |
| -04 | 1/4 " | 6.3 | 11.0 | 13.0 | 225 | 3263 | 900 | 13052 | 100 | 0.21 |
| -05 | 5/16 " | 7.9 | 12.8 | 14.8 | 215 | 3118 | 860 | 12472 | 115 | 0.26 |
| -06 | 3/8 " | 9.5 | 14.8 | 17.2 | 180 | 2610 | 720 | 10440 | 130 | 0.33 |
| -08 | 1/2 " | 12.7 | 18.0 | 20.2 | 160 | 2320 | 640 | 9280 | 180 | 0.42 |
| -10 | 5/8 " | 15.9 | 21.3 | 23.8 | 130 | 1885 | 520 | 7540 | 200 | 0.50 |
| -12 | 3/4 " | 19.1 | 25.0 | 27.8 | 105 | 1523 | 420 | 6092 | 240 | 0.64 |
| -16 | 1 " | 25.4 | 32.5 | 35.5 | 88 | 1276 | 352 | 5104 | 300 | 0.86 |
| -20 | 1-1/4 " | 31.8 | 41.3 | 44.0 | 63 | 914 | 252 | 3656 | 420 | 1.26 |
| -24 | 1-1/2 " | 38.1 | 47.7 | 51.0 | 50 | 725 | 200 | 2900 | 500 | 1.55 |
| -32 | 2 " | 50.8 | 60.4 | 64.0 | 40 | 580 | 160 | 2320 | 630 | 2.02 |
| -40 | 2-1/2 " | 63.5 | 73.0 | 77.0 | 40 | 580 | 160 | 2320 | 800 | 2.53 |
| -48 | 3 " | 76.2 | 83.5 | 88.0 | 35 | 508 | 140 | 2032 | 920 | 2.74 |
