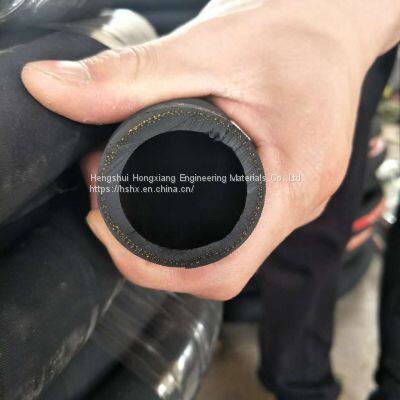

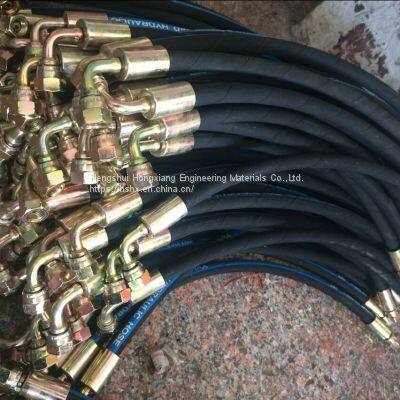

DIN EN857 1SC steel wire braided hydraulic hose is similar in construction to DIN EN853 1SN hydraulic hoses. It consists of an inner tube, a reinforcement layer and an outer cover. EN857 1SC Steel Wire Reinforced Hydraulic Hose works well in high pressure environments due to its high strength steel wire reinforcement.
The outer diameter of the DIN EN857 1SC steel wire braided hydraulic hose is smaller, which can effectively solve the problems of compact piping and narrow installation space for some equipment.
The steel wire braided rubber hose can be used in mining hydraulic fluid, petroleum exploration, cranes, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various other construction machine and agricultural fields mineral oil, fuel, lubricating oil, emulsion, etc.
In addition, since the surface of the steel wire braided hydraulic hose can be divided into two types, the smooth surface and the fabric surface, it has weather resistance, ozone resistance, aging resistance and sunlight resistance.
Applicable Specification：DIN EN857 1SC
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight | ||||
| DN | inch | mm | mm | mm | bar | psi | bar | psi | mm | Kg/mt |
| -04 | 1/4 " | 6.3 | 10.0 | 12.5 | 225 | 3263 | 900 | 13050 | 75 | 0.19 |
| -05 | 5/16 " | 7.9 | 11.7 | 13.8 | 215 | 3118 | 860 | 12470 | 85 | 0.21 |
| -06 | 3/8 " | 9.5 | 13.6 | 16.0 | 180 | 2610 | 720 | 10440 | 90 | 0.26 |
| -08 | 1/2 " | 12.7 | 17.0 | 19.3 | 160 | 2320 | 640 | 9280 | 130 | 0.35 |
| -10 | 5/8 " | 15.9 | 20.4 | 22.7 | 130 | 1885 | 520 | 7540 | 150 | 0.44 |
| -12 | 3/4 " | 19.1 | 23.9 | 26.2 | 105 | 1523 | 420 | 6090 | 180 | 0.53 |
| -16 | 1 " | 25.4 | 31.2 | 33.5 | 88 | 1276 | 352 | 5104 | 330 | 0.76 |
