Automatic dual-purpose flatbed die cutting machine with waste stripping
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Manual-Automatic dual-purpose flatbed die cutting machine with waste stripping
AEM-1500SQ
★ Complete design, accurate installation, high stability, high security, low noise.
★ High strength gripper, advanced gripper device can apply all kinds of corrugated paper. Positioning device ensure the cutting precision.
★ Worm, worm gear and special designed crankshaft connecting device is linked by bearing bush, reduce the movement clearance, avoid impact between worm and worm gear. Running steadily, high cutting pressure. It has a function of high point pressure hold. Worm gear is made of high wear-resisting aluminum bronze, it has long durability.
★ Non-stop feeding and delivery device can shorten the auxiliary time, improve the efficiency.
★ Adopt advance cam mechanism, pressure adjusting device, pneumatic die locking, pneumatic sampling, overload protection device. Adopt imported high precision chain, imported pneumatic clutch.
★ Adopt manual-automatic feeding method (automatic feeder and manual), apply secondary positioning device, reduce the requirement about paper. Keep worker’s hand far away from the cutting section, guarantee the safety.
★ Pneumatic die locking mechanism makes changing of die, make ready more convenient, die frame fix firmer, more accurate, time saving.
★ Programmable controller and man-machine interface. Digital display the working speed, processing umber, total running time. The display of trouble makes trouble shooting more convenient. Automatic control and real time monitor feeding, cutting and delivery parts, cooperate with the safety device in each part. Make the operation more reliable, machine adjustment and trouble shooting more convenient.
★ Automatic paper delivery, arranging device makes delivery more convenient and neat.
★ Floating function of cutting plate make inserting and pulling out the plate more convenient.
★ Double sheet, crooked sheet, empty sheet optoelectronic detecting device, ensure the paper in the right position, reduce waste. ★ Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Imported pneumatic clutch, joint and withdraw conveniently, with small brake angle, it can transmit high torque high torque.
★ Front and rear cutting pressure can be adjust separately, manual wheel makes it convenient.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
★ High precision interval mechanism, high cutting precision, running steadily.
★ 3 waste stripping frames work together, human-friendly design, easy to install and uninstall the waste stripping plate.
★ Automatic waste stripping device can remove the waste easily.
Specification
Max paper size: | 1500x1100mm |
Min paper size: | 440x470mm |
Max cutting size: | 1490x1090mm |
Die frame inner size: | 1540x1100mm |
Cutting plate size: | 1500x1100mm |
Cutting precision: | ≤±0.25mm |
Max cutting pressure: | 300N/cmPP2 |
Max cutting speed: | 4800s/h |
Pre-stacking height: | 1400mm |
Delivery stack height: | 1350mm |
Application: | Cardboard:0.25～2mm |
Corrugated paper:＜8mm | |
Main motor power: | Main motor power: |
Total power: | 18.5KW |
Dimension : | 7700(+2000)x2600(+2200)x2250mm |
AEM-1500SQ weight: | 20T |
Product Configuration

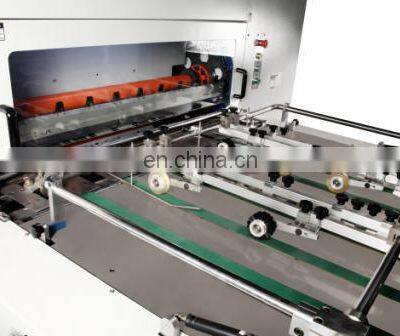

Feeding section：

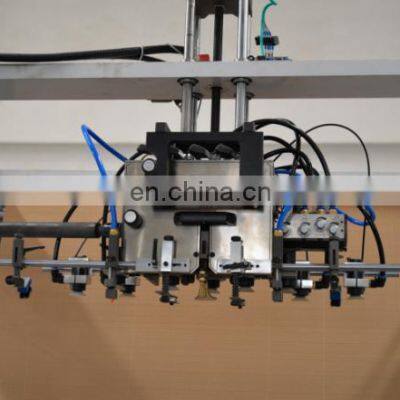

★Automatic feeder.
★Manual feeding mechanism
★Manual/auto conversion

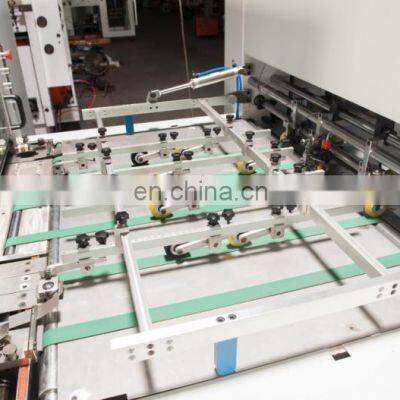

★Double side lay (pull and push).
★Feeding fine tuning device, non-stop adjust.
★Electronic double detector.
★Wear resisting PU feeding wheel.
★Feeding timing fine tuning device.
★Adjust the rubber wheel and brush wheel to help front and side lay poisoning.
★Front lay detector to ensure the paper in the right position。
★Adopt double side lay to meet the requirement of different printing register.
Host machine section：
★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
★Alloy crankshaft with special process treatment.
★Wear resisting worm, worm gear.
★Convenient die flipping device.
★Cycling lubrication oil supply system with high pressure oil pump from Taiwan
★High precision interval mechanism.
★Pneumatic brake clutch device from Italy
★Japanese SMC rotary joint.

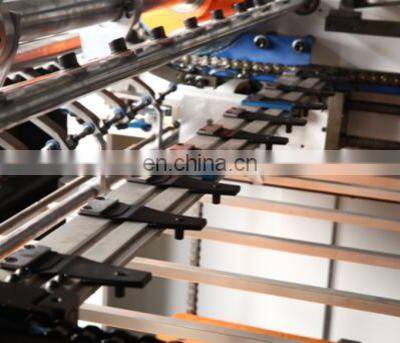

★Import gripper bar chain.
★Pneumatic die locking device.
★High hardness, strength Ti-Al alloy gripper.
★Precise pressure adjust device.
★PLC and man-machine interface from Taiwan.
★Additional gripper 1set,cutting die 1set,die frame 1 set.
Waste stripping section：
★High strength Ti-Al waste stripping frame.
★Light waste stripping needle.
Delivery section：
★Automatic arrange device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.
★Delivery section with control panel, more human-friendly.
★Optoelectronic sensor ensure better Delivery.
★Automatic Delivery board control system.
★Manual Delivery device
★Main chain protection device
★Rolling back preventing device
Packing & Delivery
export wooden case
