4&6 Corner Smart Automatic Folder Gluer Machine
- T/T Credit Card
You May Like
-

                        XS-850 Automatic Lock Crash Bottom 4 6 Corner Folder Gluer Machine
-

                        850 Corrugated Paper Lock Bottom Smart Folder Gluer ,Crash Lock Bottom Folder Gluer
-

                        Latest Design Box FG-580LB Lock Bottom Box Automatic Folder Gluer Carton Machine
-

                        Newest Box FG-580LB Automatic Lock Bottom Box Folder Gluer Gluing Machine
-

                        Newest Box FG-580LB Automatic Lock Bottom Folder Gluer Gluing Machine
-

                        FG-580 Automatic Folder Gluer Paper Box Carton Gluing Machine
Product Description
Product Features:
Intelligent design,give a paper(calibration),folding,lock the bottom,the folding,output pressing section six parts modular design,an be completely ferr to choose configuration,four/bexagonal boxes,and has set aside special box design,and convenience.
A new generation of high speed machine adopt wedge belt wheel transmission,speed up to 400m/min.
Apply to the card paper and corrugated paper boxes,multi-purpose machines.
Box Size & Specification:
| Model | GSF-850/950/1100C4&6 |
| Materials | Paperboard,A.B.C.D.F.F.Corrugated board.flat mouth box |
| Box | Straight line,double sided,lock bottom box,CD box,4&6 corner box,flat mouth box |
| Straight Line | GSF-850C4&6    Max:800*800mm    Min:126*60mm GSF-950C4&6 Max:900*800mm Min:126*60mm GSF-1100C4&6 Max:1050*800mm Min:126*60mm |
| Double Sided | GSF-850C4&6    Max:700*800mm    Min:126*126mm GSF-950C4&6 Max:800*800mm Min:126*126mm GSF-1100C4&6 Max:1050*800mm Min:126*126mm |
| Lock bottom box | GSF-850C4&6    Max:800*800mm    Min:146*280mm GSF-950C4&6 Max:900*800mm Min:146*280mm GSF-1100C4&6 Max:1050*800mm Min:146*280mm |
| 4 corner box | GSF-850C4&6    Max:800*800mm    Min:120*130mm GSF-950C4&6 Max:900*800mm Min:120*130mm GSF-1100C4&6 Max:1050*800mm Min:120*130mm |
| 6 corner box | GSF-850C4&6    Max:800*800mm     Min:250*130mm GSF-950C4&6 Max:900*800mm Min:250*130mm GSF-1100C4&6 Max:1050*800mm Min:250*130mm |
| CD box | GSF-850C4&6    Max:760*800mm     Min:134*150mm GSF-950C4&6 Max:860*800mm Min:134*150mm GSF-1100C4&6 Max:1050*800mm Min:134*150mm |
| Flat box size | GSF-850C4&6    Max:800*800mm GSF-950C4&6 Max:900*800mm GSF-1100C4&6 Max:1050*800mm |
| Max speed | 400m/min |
| Total Power | GSF-850C4&6:20KW;  GSF-950C4&6:20KW GSF-1100C4&6:22KW |
| Machine size | GSF-850C4&6:18*2.0*1.5m  8.5Tons GSF-950C4&6:18*2.1*1.5m 9.5Tons GSF-1100C4&6:18*2.3*1.5m 10.5Tons |
| Compressor pressure Energy and capacity | GSF-850C4&6:6bar,10m³/h,60L GSF-950C4&6:6bar,10m³/h,60L GSF-1100C4&6:6bar,10m³/h,60L |

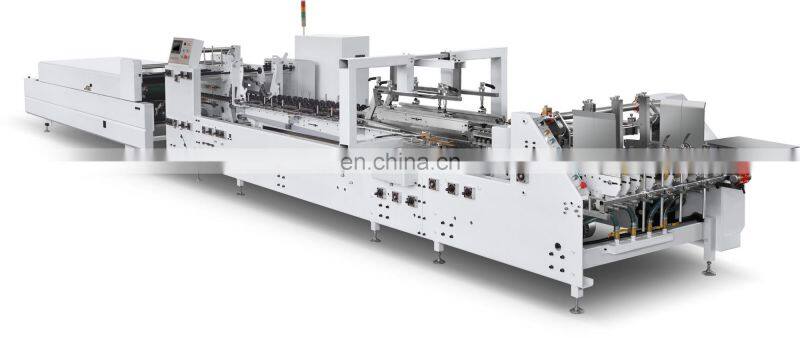

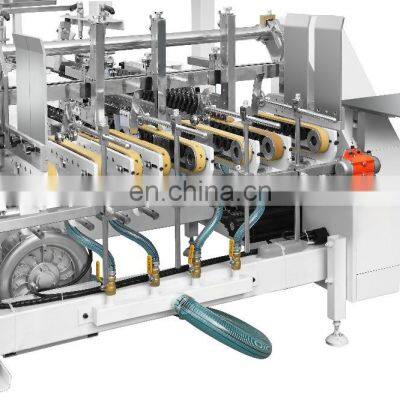

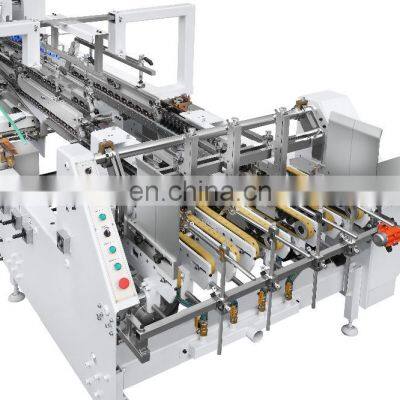

Products Image:

New Star Machinery International Limited, based on Wenzhou Fei Hua Printing Machinery Company, is engaged in the manufacture of all kinds of post-press machines and paper packaging equipment. Our main products are UV coating machines of big sizes or small sizes, manual or automatic laminating machines, spot UV coating machines, UV coating machines of small smart office use, automatic laminating machines and book binding machines (automatic or manual). We also deal with folding machines, hot stamping machines, punching machines, box making machines and machine parts, such as UV oil, Teflon belts and rings for binding.New Star manufactures advanced equipment with higher productivity, longer life, less maintenance and trouble free performance. Our main ideas for machines are "simple to use and they can be operated by non technical staff to give consistently higher performance". We also provide good after-sales services.New Star exports products worldwide and has an extensive service network. We are engaged in the design, engineering, marketing and service of our equipment. In order to remain the leading position in this field, we maintain the highest quality control standards and continuously invest capitals in research and development. We warmly welcome all friends from this field to cooperate with us to improve our standards.
package
Our packaging protects the product from damage as much as possible on the road, the packaging is tight and clean, and each product is individually packaged.

Wooden case & vacuum plastic packaing
shipping by sea
Our Services
    1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
