HBM1000 Automatic 3D 3-dimensional 4 corner french fried chips hamburger Burger Paper box making machine
- 1000 per Month
- T/T Credit Card
- UK5 semi automatic Hot thermal glue spine book binder, hotmelt eva glue notebook binding machine
- UT4030S eco-friendly water wash flexo polymer plate making machine, UV light photopolymer resin exposure developing equipment
- UGS31S 3 plus 1 color Automatic portable apparel clothing label flexo Printing machine, Roll to roll fabric ribbon printer
- UGS42S Automatic roll to roll fabric washable label flexo Label Printing Machine, flexographic wash care cotton ribbon printer
- UGS42S Multiple Color Automatic Fabric barcode label Flexo Printer, Garment Organza Grosgrain cotton ribbon Printing Machine
- UGS42S double side coated nylon taffeta label flexo printer, barcode woven satin ribbon flexographic printing machine
Product Description

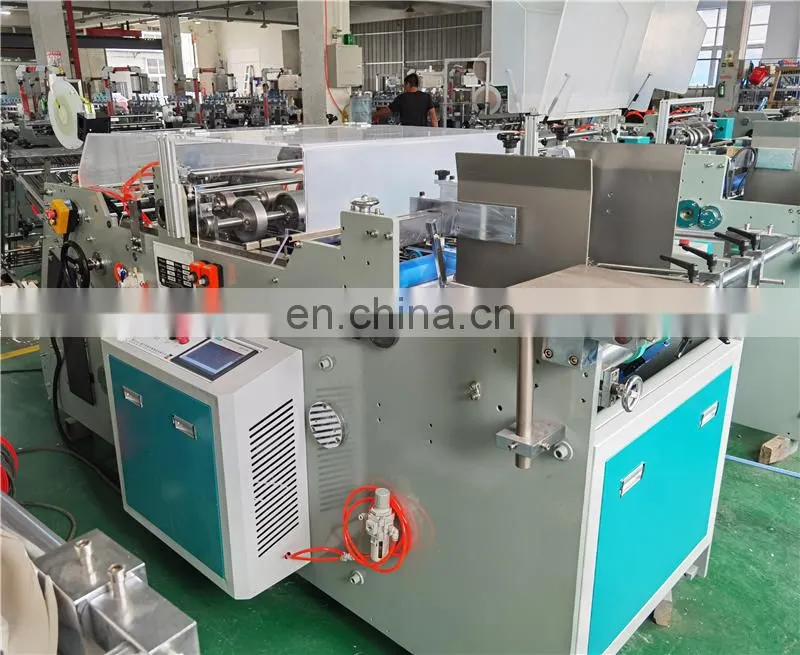

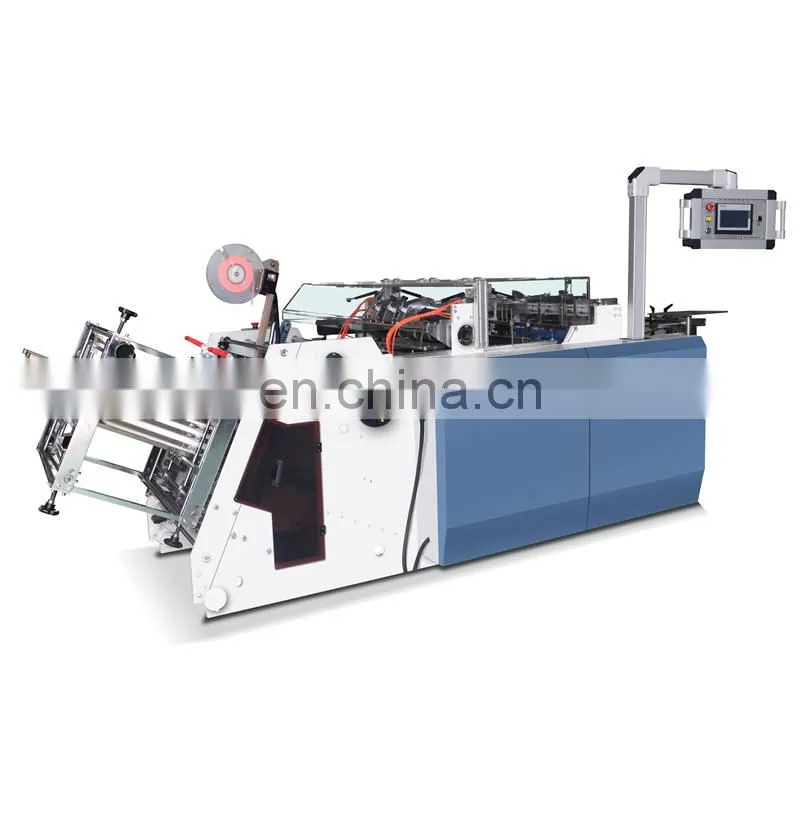

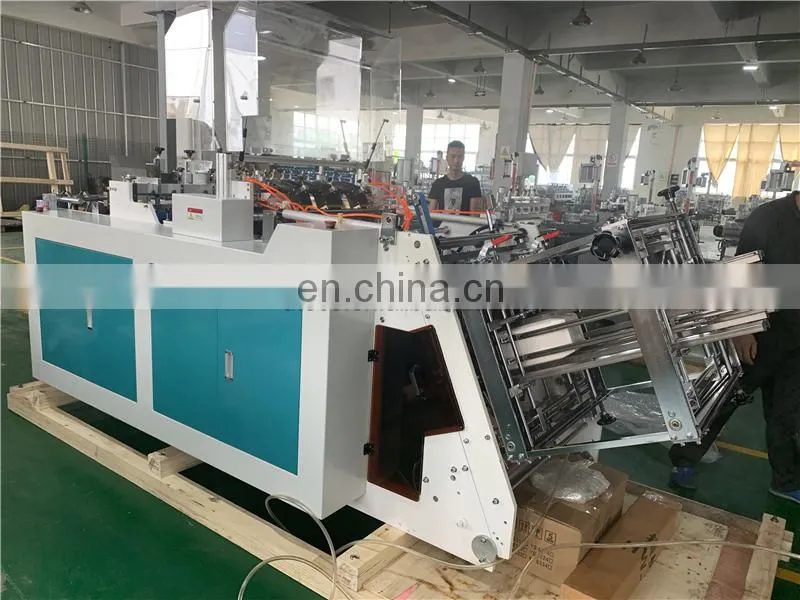

HBM1000 Automatic 3D 3-dimensional 4 corner french fried chips hamburger Burger Paper box making machine
Video demonstration only for reference
Video 01: /watch?v=4T4h_KUxidk
Video 02: /watch?v=9YUsw-F_A8Y
Description:

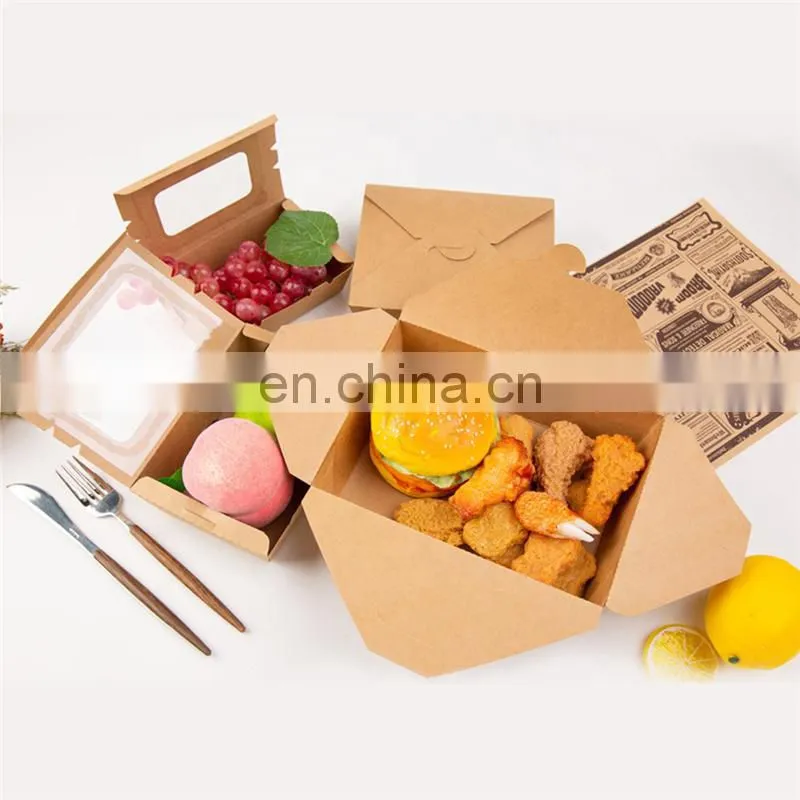

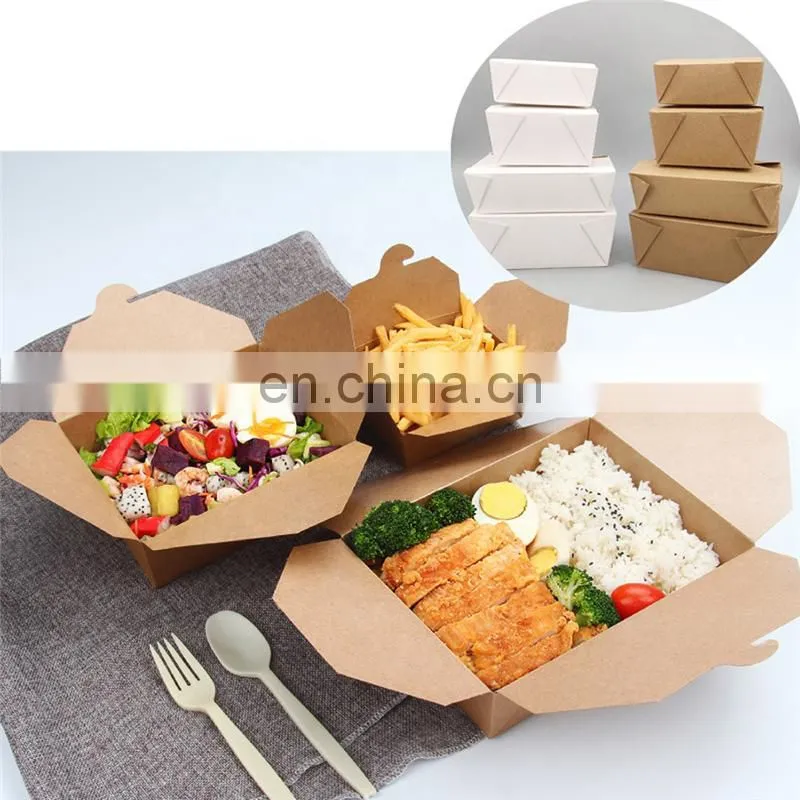

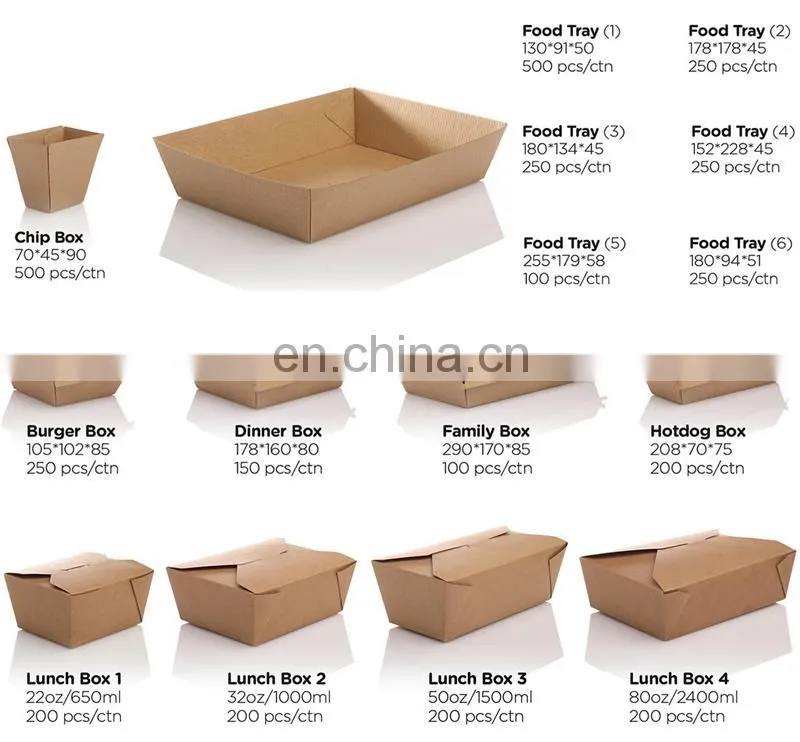

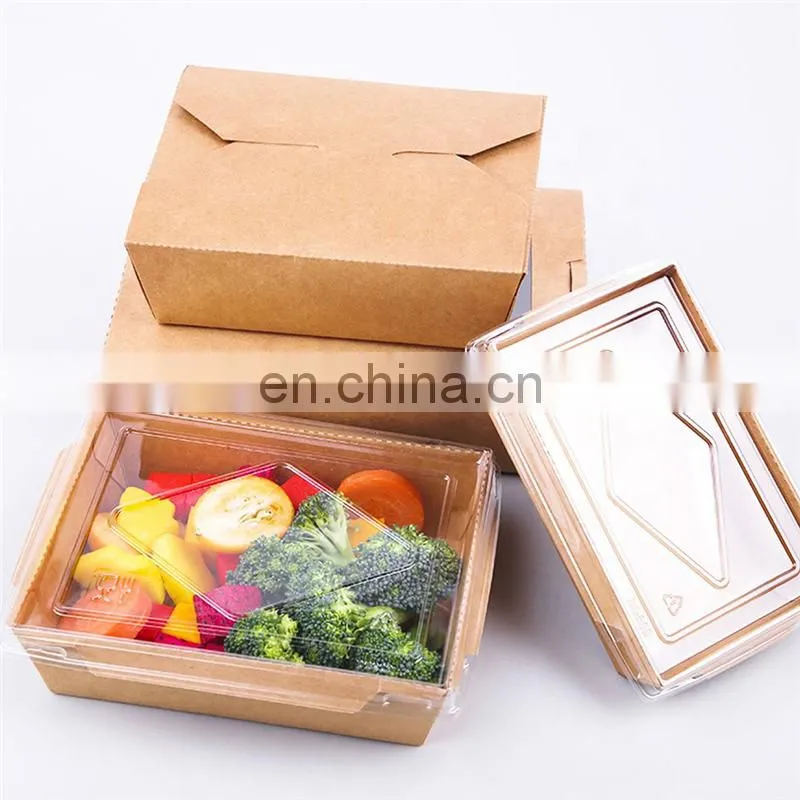

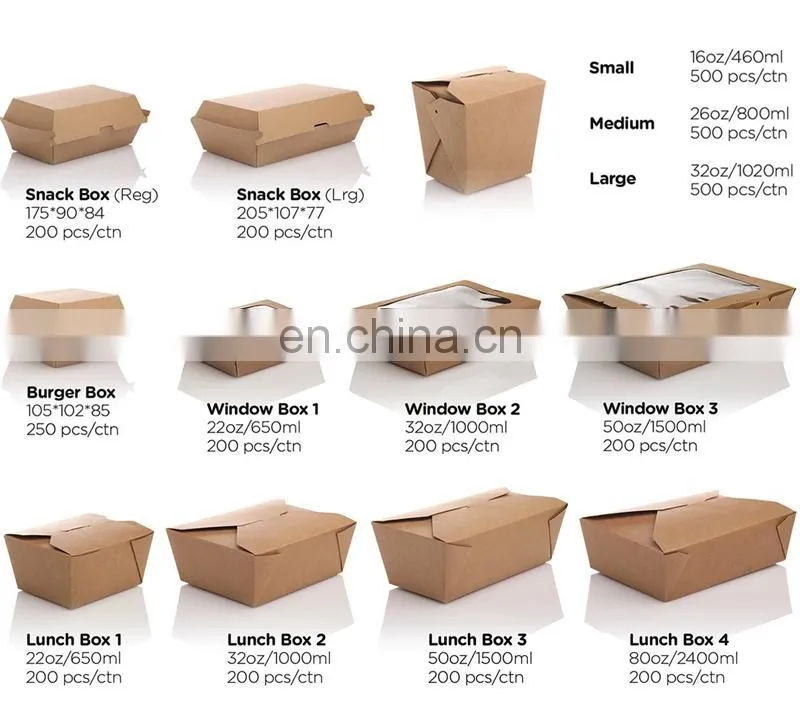

1, The machine is widely used to make different paper boxes such like hamburger box, chips box, fried chicken box, kids meal box, fast food box and noodles box etc

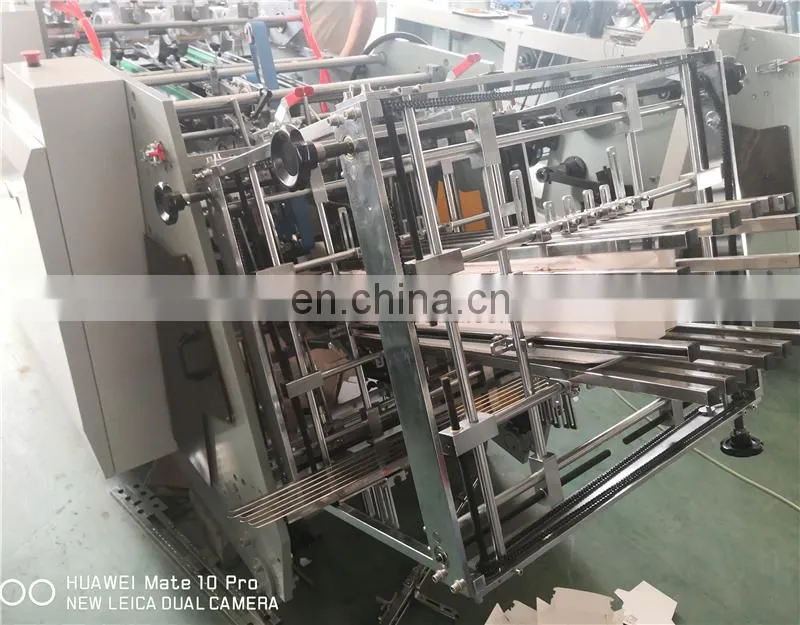

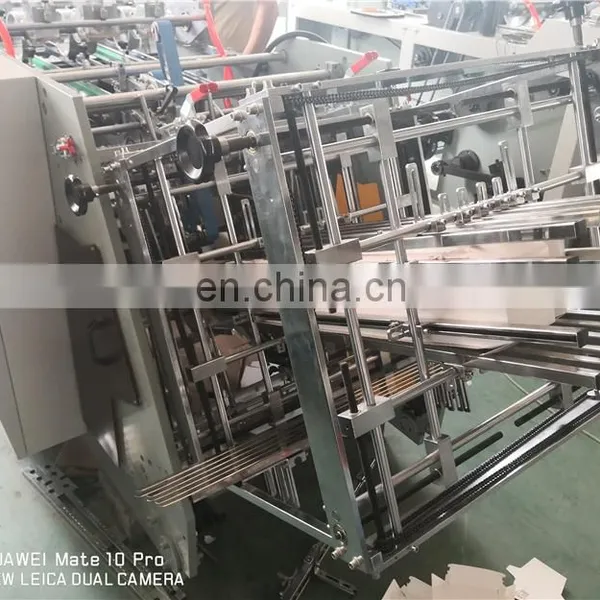

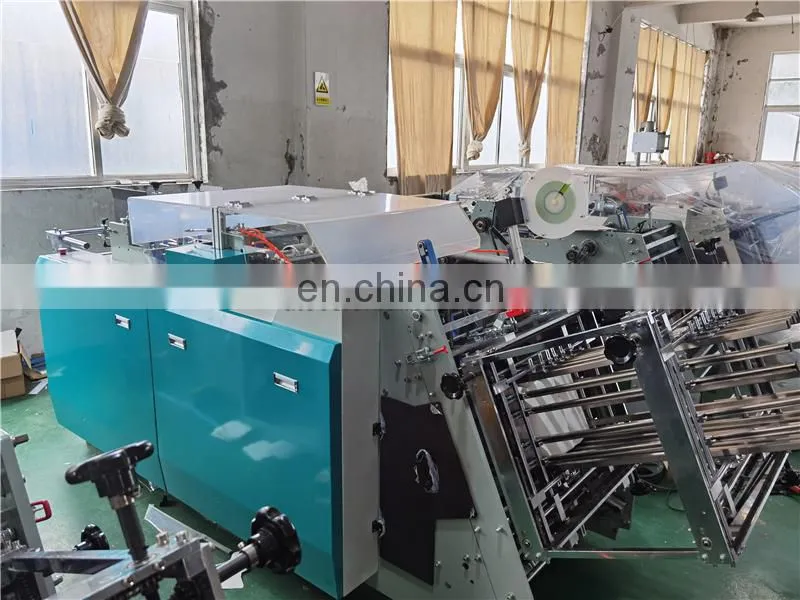

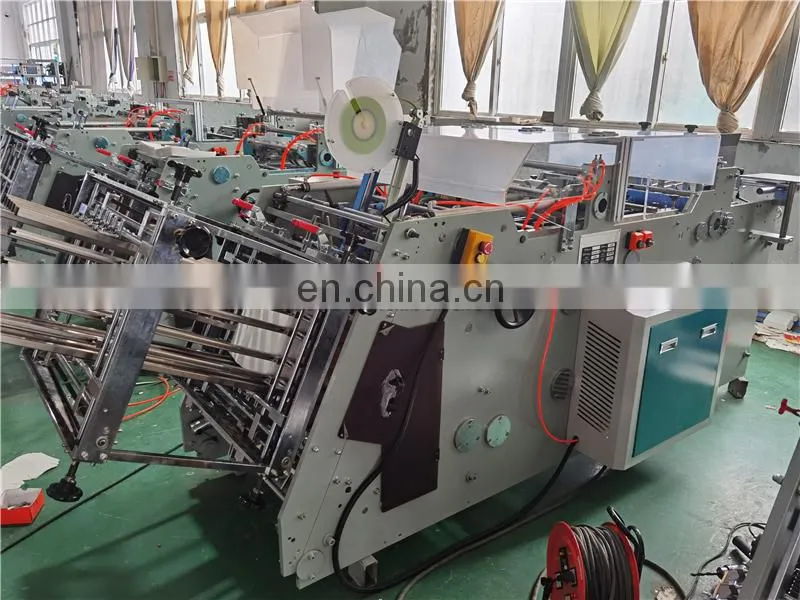

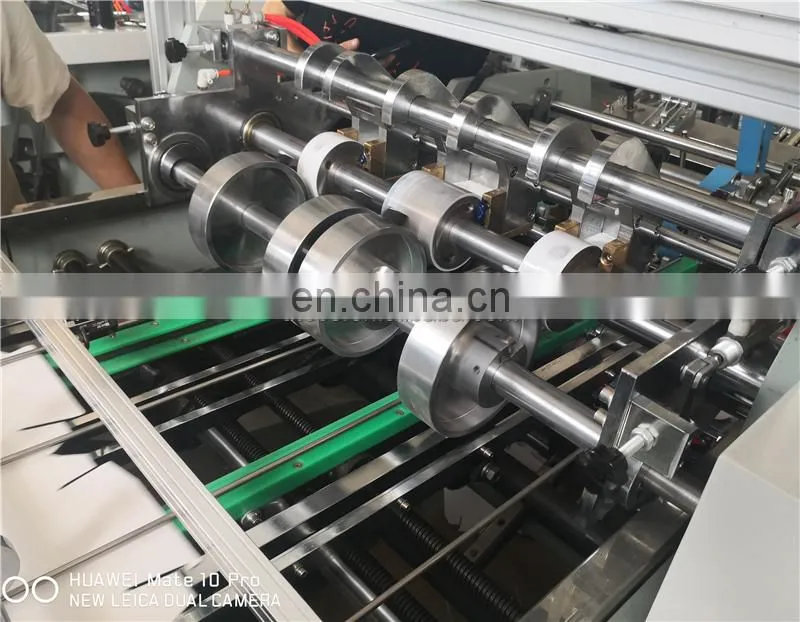

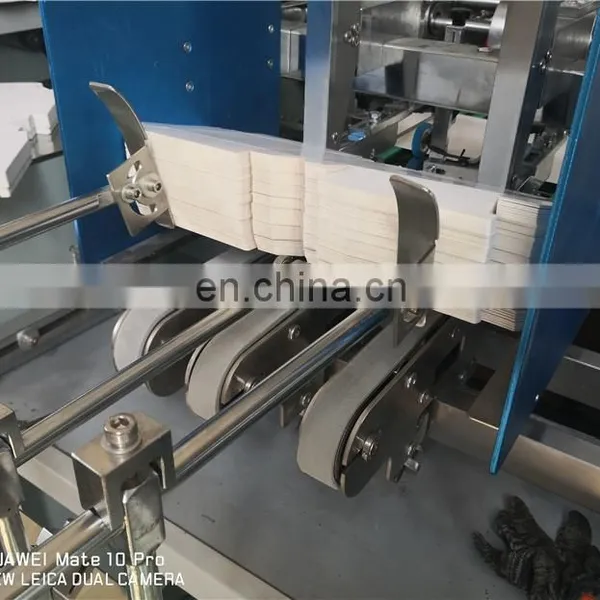

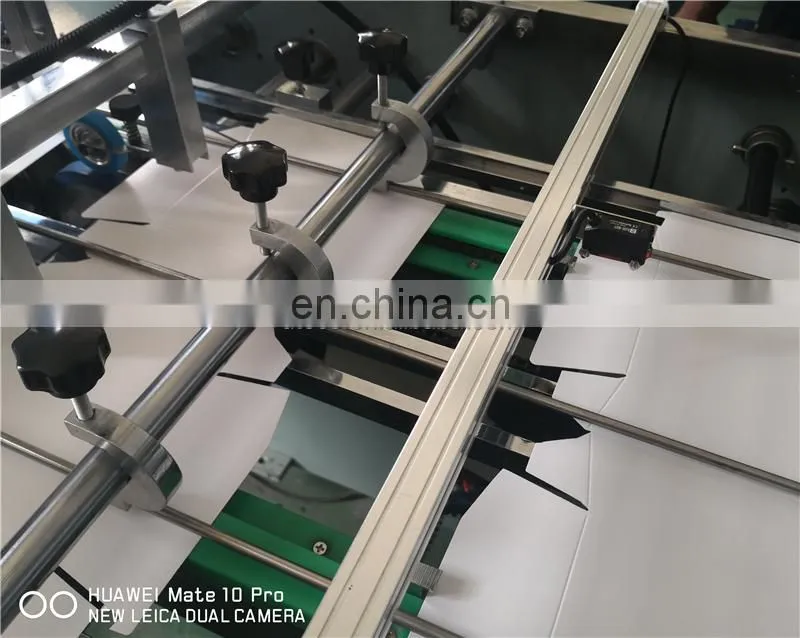

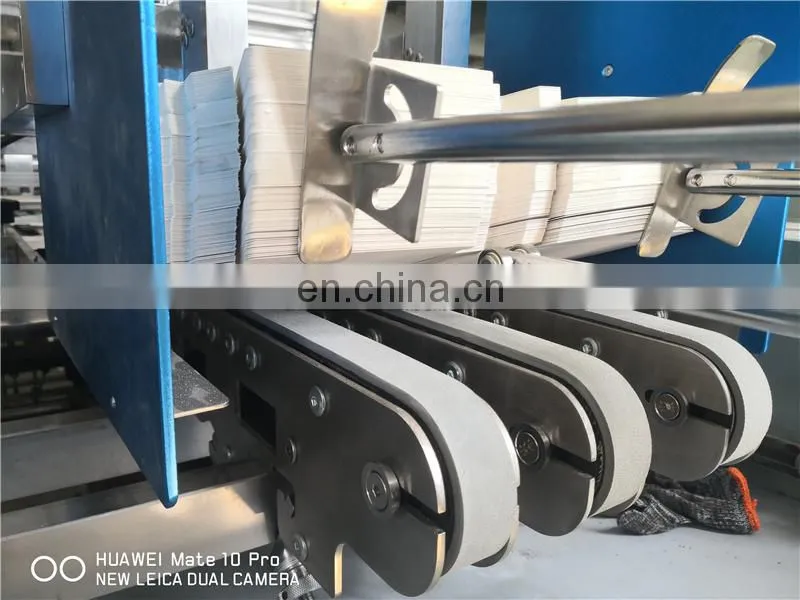

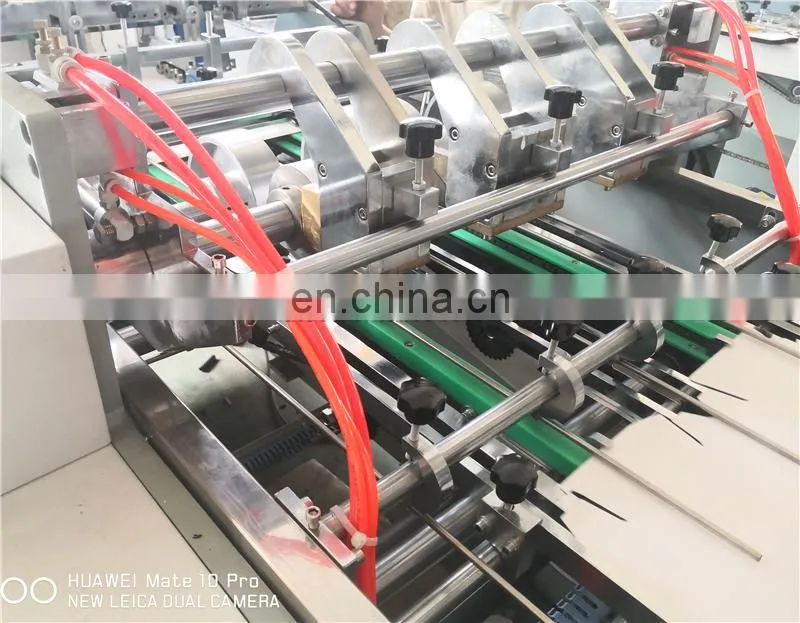

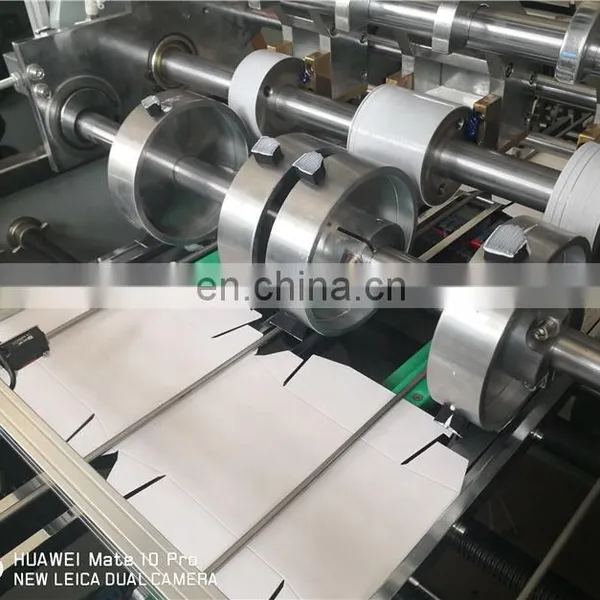

2, The machine includes paper sheet feeder, paper sheet conveyor, glue coating unit, forming unit and box stacker with counter.
3, Servo motor system to feed paper sheet more precisely
4, Improved swinging arm brings steady service for a long time.
5, Bigger and heavier gear sleeve instead of usual small gear sleeves let the machine run more stably.

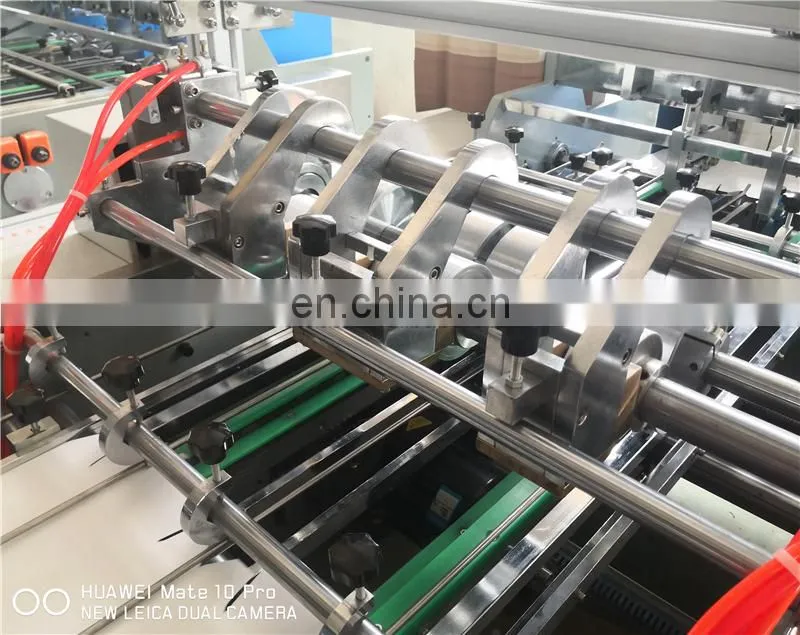

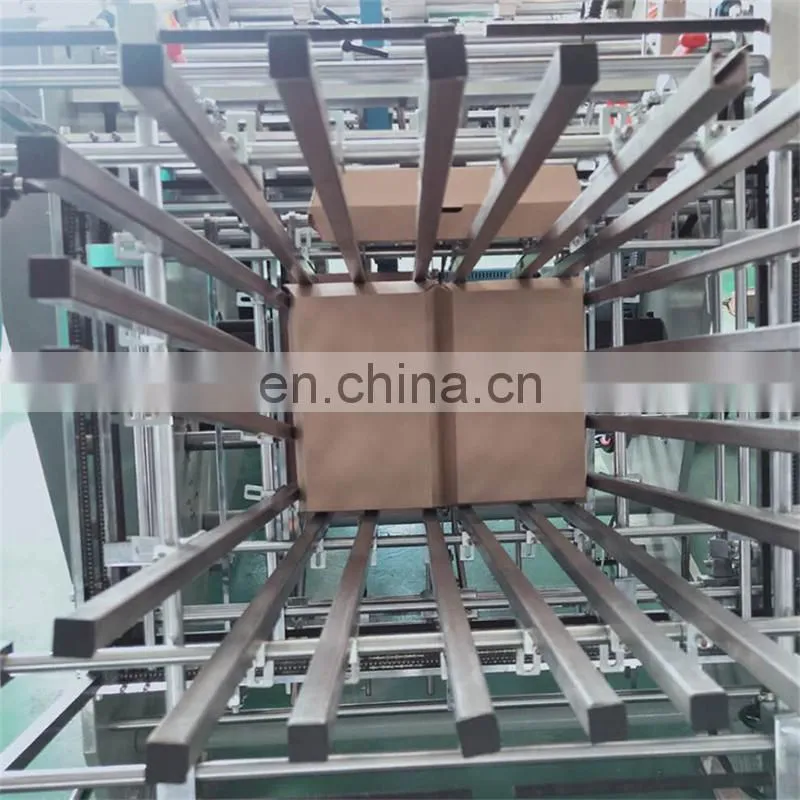

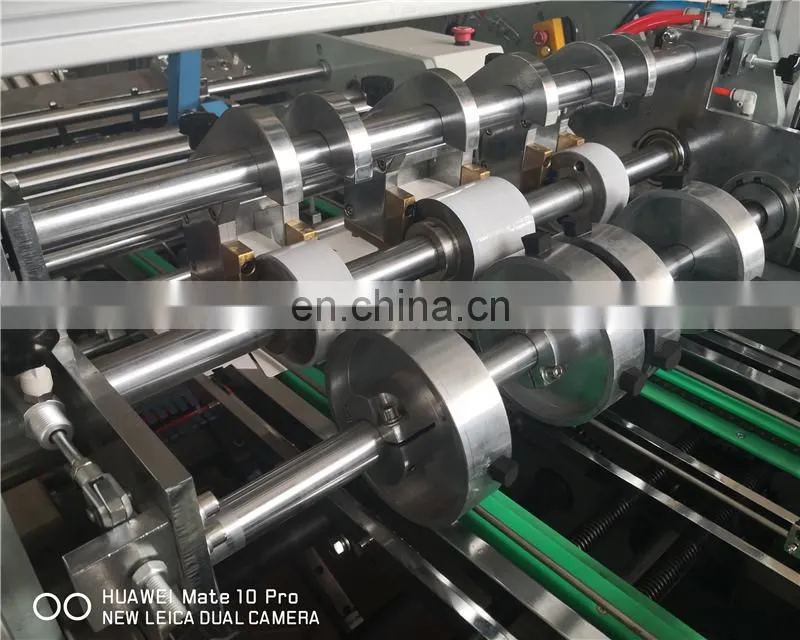

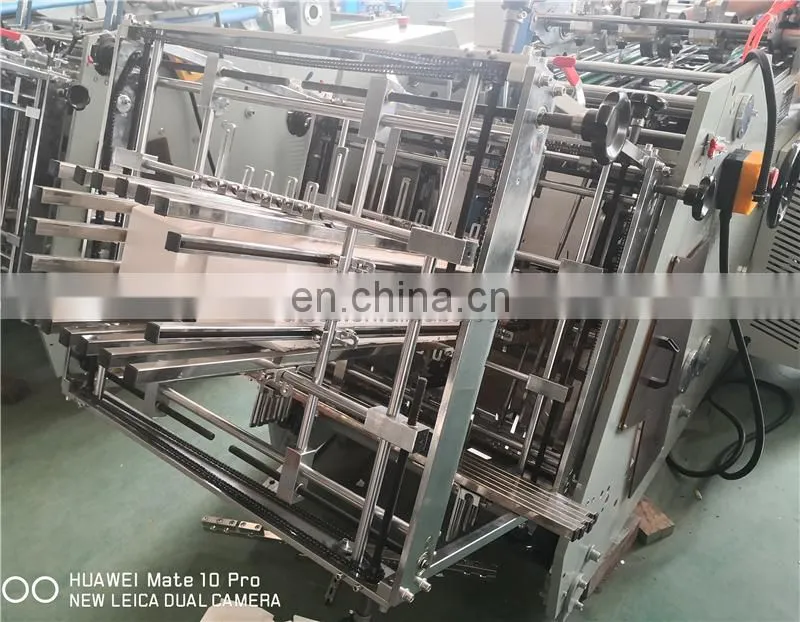

6, Each forming and collecting section can be adjusted according to the size of mold.
7, Machine features firm structure, high quality, low noise and high efficiency.
8, Plasma treater and hot melt spraying glue system can be mounted on the machine as optional parts.
Parameters:
Model |
HBW800 |
HBW1000 |
Speed |
50-150pcs/min (based on different box) |
50-150pcs/min (based on different box) |
Paper Thickness |
200-600GSM |
200-600GSM |
Corrugated Paper Thickness |
Maxi 3mm |
Maxi 3mm |
Paper Type |
white cardboard, PE coated paper, kraft paper board, corrugated paper |
white cardboard, PE coated paper, kraft paper board, corrugated paper |
Paper Blank Width |
100-600MM |
100-800MM |
Paper Blank Length |
100-470mm |
100-550mm |
Burger Box Height |
15-220mm |
15-300mm |
Box Degree |
5-40 degrees |
5-40 degrees |
Total Power: |
380V, 5.5KW |
380V, 5.5KW |
Weight |
2000 KG |
2400 KG |
Dimension |
3600*1400*1620mm |
3600*1600*1620mm |

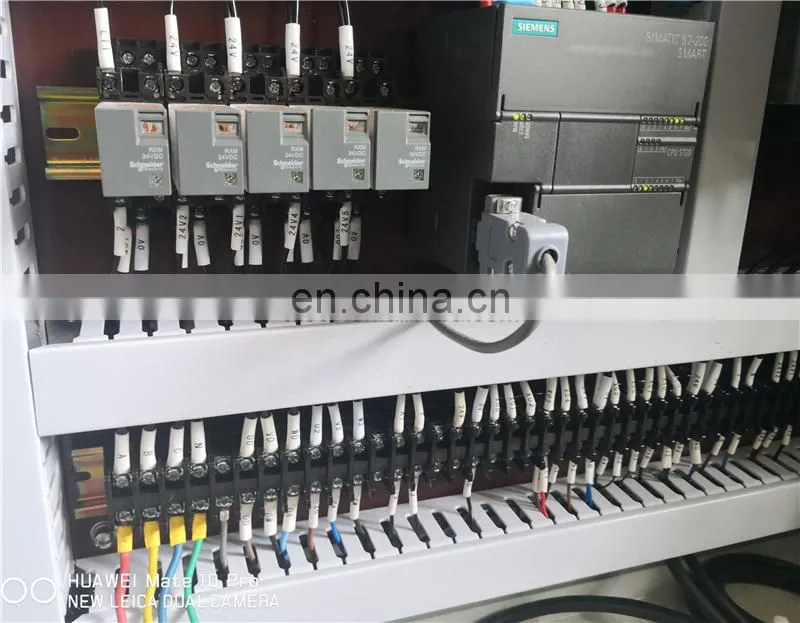

Components List:

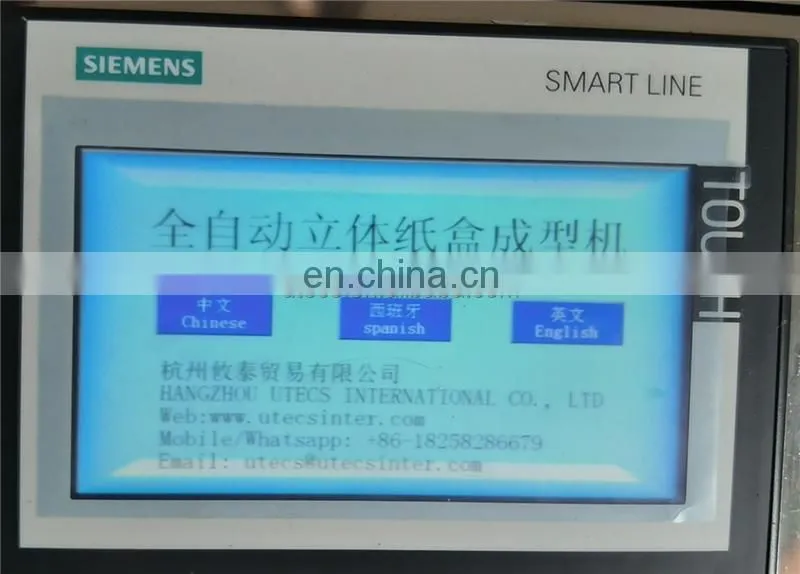

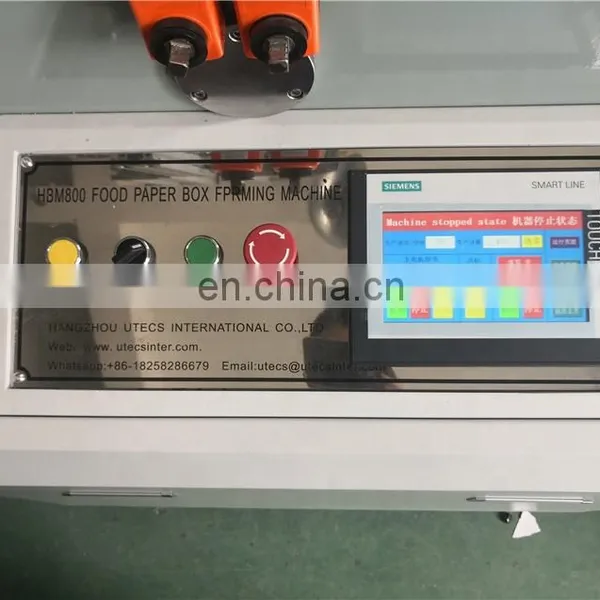

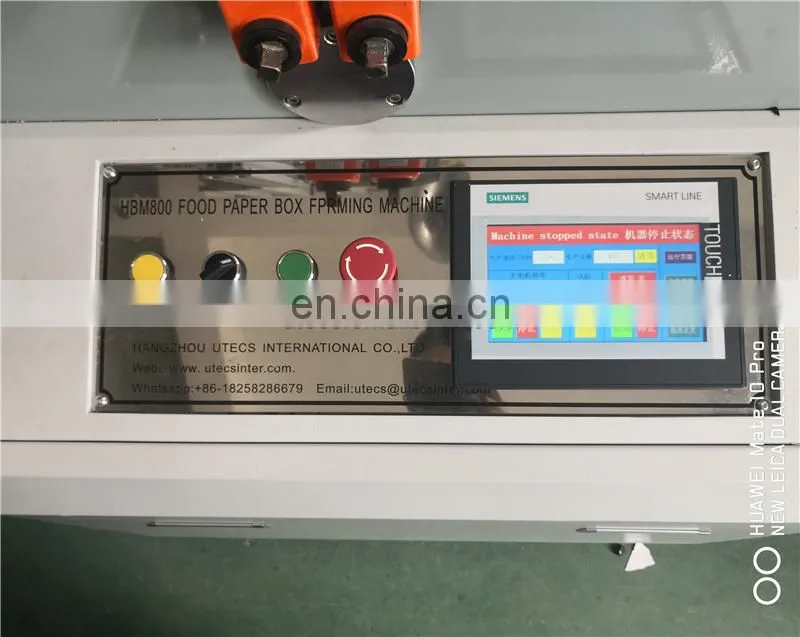

Touch Panel |
Siemens: Smart700IE V3 |
PLC |
Siemens: Smart ST20 |
Inverter |
Siemens: v20 |
Circuit Breaker |
Siemens: 5SY6332-7CC |
Contactor |
Siemens: 3TB4222-0XM0 |
Relay |
Siemens: ZY4N-J DC24V |
Switching Power Source |
Taiwan Mingwei: LRS-100-24 |
Photoelectric Switch |
Omron |
Proximity Switch |
Omron |
Bearing |
HRB |
We reserve the right to change the component brand without notice in advance.
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
