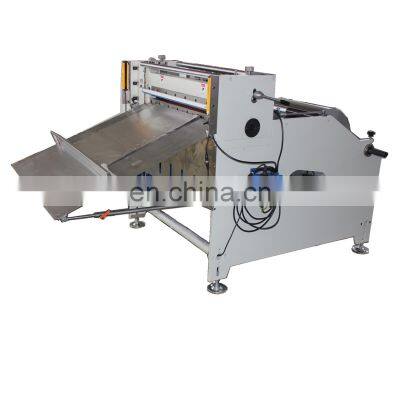

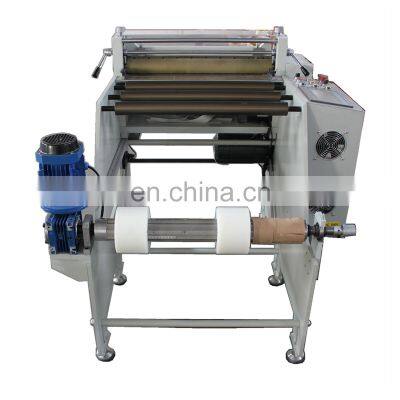

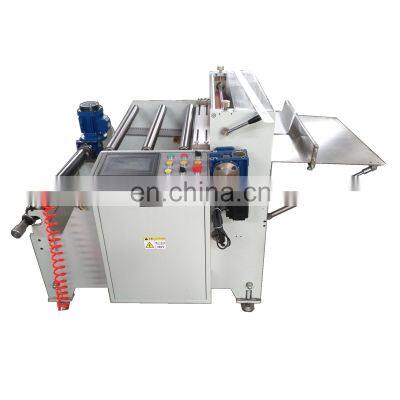

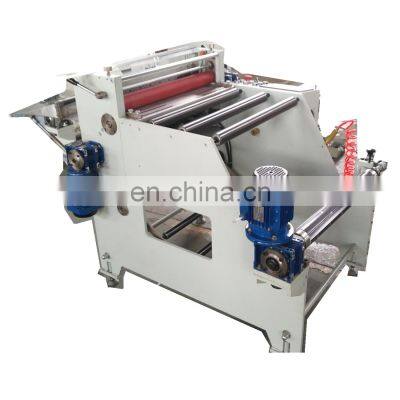

Automatic Nonwoven/textile/spunbond Roll Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Die Cutting Machine Kiss Cut Cutting MachineNegotiableMOQ: 1 Piece -
Computer Control Barley Release Paper Slitting Cross Cutting MachineNegotiableMOQ: 1
-
Max Working Width 360mm to 1000mm Paper Cutting Machine Automatic Roll to Sheet Cutting Machine Paper Sheeter MachineNegotiableMOQ: 1
-
DP-500 Automatic Label and Protective Film Sheet Cutting and Rewinding MachineNegotiableMOQ: 1
-
Paper Sheeting Machine With Computer Control Multi FunctionNegotiableMOQ: 1
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Product Description
Specification
automatic paper roll to sheet cutting machine Automatic nonwoven/textile/spunbond roll cutting machine
FUNCTIONAL CHARACTERSTICS This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and air shaft, which will be easy to load and unload. Purpose It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, rubber sheets, electronic tape and various inch setting, entirely broken and partially broken electronic materials. |
||
Item No |
DP-600CQ |
PRICE shipping term |
(FOB Shanghai) |
Max Feeding Width ( mm ) |
600mm |
Main Engineer Power ( w ) |
1500 |
Speed ( m/m ) |
120 |
Size ( mm ) |
1350*1150*1250 |
Weight ( kg ) |
550 |
Precision ( mm ) |
±0.10 |
Power |
380V 50HZ |
Shaft diameter |
3 inch / 76mm |
unwinding paper diameter |
600mm max (unwind like below) |
*the voltage can customize according to your country standards.
Features:
Taiwan brand or Japan brand mitsubishiservo motor & Japan brand mitsubishi PLC;
Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
Application:
Sizing cutting for paper,film,labels,aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal
foil,non-woven fabric,plastic bag,wire mesha and all kinds of material in roll form.
Features:
Taiwan brand or Japan brand mitsubishiservo motor & Japan brand mitsubishi PLC;
Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
Application:
Sizing cutting for paper,film,labels,aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal
foil,non-woven fabric,plastic bag,wire mesha and all kinds of material in roll form.
Training Service After Sales Service
1. Training Service
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.
2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible
for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
We can train your staffs how to run the machine efficiently and safely.
1.1 Free training in our factory available before delivering machines.
1.2 We also can arrange engineer to customer's plants for installation and training.
2. After Sales Service
We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible
for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
For all of our machines, we provide:
1. Operation Manual, Operation and repair Video.
2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine.
3.24hours Email technical support, we will do our best to help the clients solve problems.
4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Packing & Delivery
PACKAGE: we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard.
It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing
first before plywood case or pack it according to customers special .
SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent
order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first
time .
It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing
first before plywood case or pack it according to customers special .
SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent
order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first
time .
Company Profile
BUYING GUIDE
1, material name : |
|
2, material roll diameter : |
|
3, material roll width : |
|
4, material roll weight : |
|
5, maximum and minimum length required to cut |
