Home > Products > cutting machine > Automatic Paper Roll to Sheet Cutting Machine

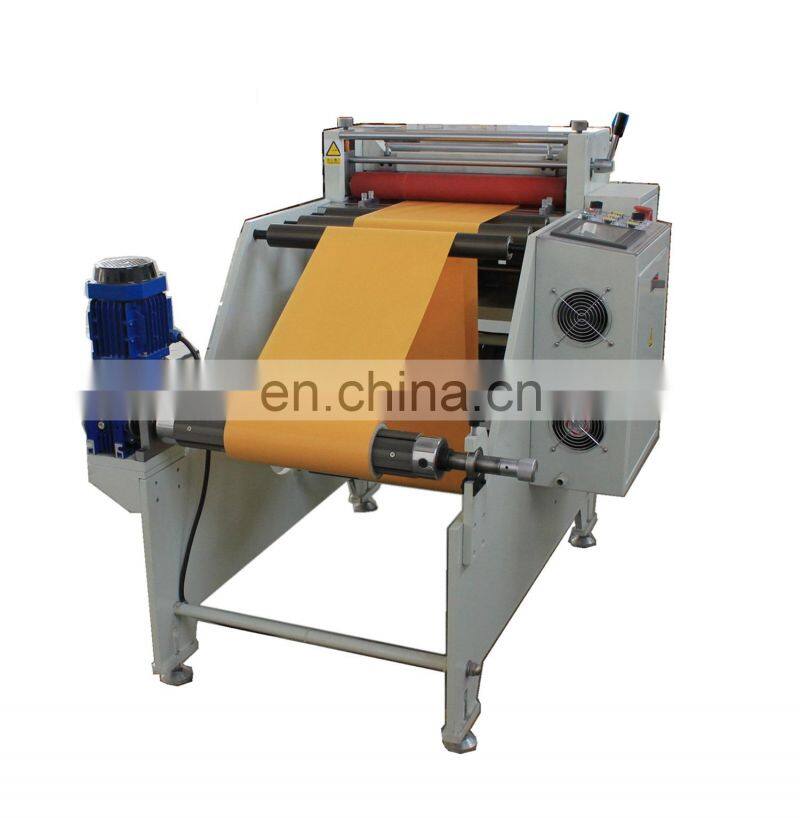

Automatic Paper Roll to Sheet Cutting Machine
- 1000 per Month
- T/T Credit Card
- PVC Face Mask Melt-blown Non Woven Fabric Computer Cutting Machine Manufactures Paper Roll To Sheet Cutter Machine
- automatic printed paper cutter machine roll to sheet cutting machine fabric roll cutting machine
- Professional Tape Sticker Kiss Cutting Machine
- Paper PVC film sheet cutter
- Printed paper Guillotine Cutter roll to sheet
- Printed non woven PP roll to sheet cutting machine
Product Description
Functional Characteristice:
Machine adopted imported PLC overall control with touch screen display ,simple and ease of operation. Fast cutting speed,high precision.
Scope Applicable:
It is applicable for the cutting of PVC film,insulation sheet,mylar,foam,industrial tape,electronic tape and various inch setting.through cutting and kiss cutting electronic materials.
Main Technical Parameters:
Model | Max feeding width(mm) | Power(kw) | Cutting speed(T/min) | Size(mm) | Weight(kg) | Position(mm) | Voltage |
DP-360CQ | 360 | 1 | 110 | 1150*1000*1230 | 400 | ±0.10 | 220V 50HZ |
DP-500CQ | 500 | 1.5 | 110 | 1250*1090*1230 | 500 | ±0.10 | 220V 50HZ |
DP-600CQ | 600 | 2.5 | 100 | 1300*1200*1250 | 700 | ±0.10 | 380V 50HZ |
DP-800CQ | 800 | 4 | 80 | 1400*1400*1250 | 1000 | ±0.10 | 380V 50HZ |
After sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :
1. Free sample testing and video for your reference
2. Prompt delivery within 24 hours
3. One year warranty ,whole life technical support
4. Free training in our factory available before delivering machines
5. Engineers available to service machinery overseas
6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
Technical parameters:
Item Number | DP-360CQ | DP-500CQ | DP-600CQ |
Web Width | 0-360mm | 0-500mm | 0-600mm |
Cutting length | 0-9999.99mm | 0-9999.99mm | 0-9999.99mm |
Cutting speed | 0-130 cut/min | 0-130 cut/min | 0-130 cut/min |
Cutting precision | ±0.05mm | ±0.05mm | ±0.05mm |
Voltage | 220V/380V | 220V/380V | 220V/380V |
Size | 1280*920*1300mm | 1280*1150*1070mm | 1500*1300*1200mm |
Weight | 240kg | 270kg | 320kg |
Total Power | 1.5kw | 1.5kw | 1.5kw |
*the voltage can customize according to your country standards.
Features:
Taiwan brand servo motor & Japan brand mitsubishi PLC;

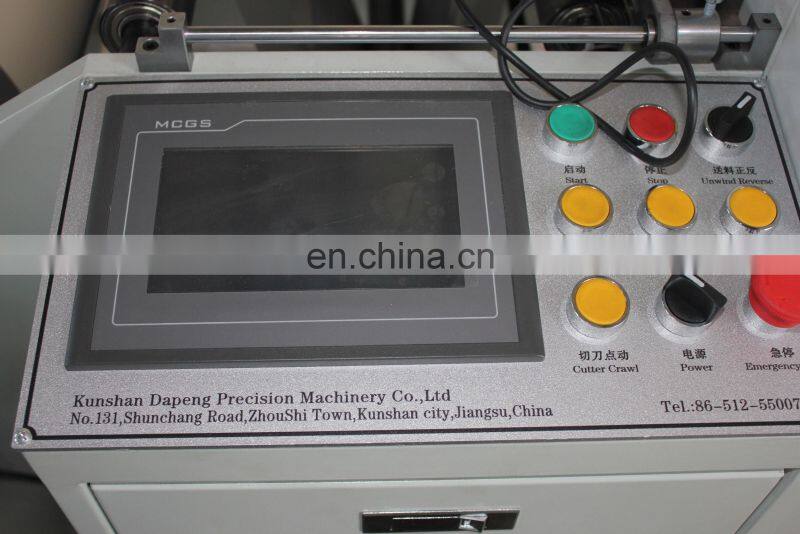

Touch screen control panel,easy to operate;
Can preset and adjust the cutting length ,total cutting quantity and speed;
Afer the machine shutting down,it still can remember the amount automatically;
Cutting tolerance can be reach ±0.1mm based on material;
Optional function:
Kiss cut (half-cut)
Hot cutting
Static electricity eliminator
Cutting with position sensor
Application:
Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Kiss cutting
Material:Utility knife and fixture
This unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.

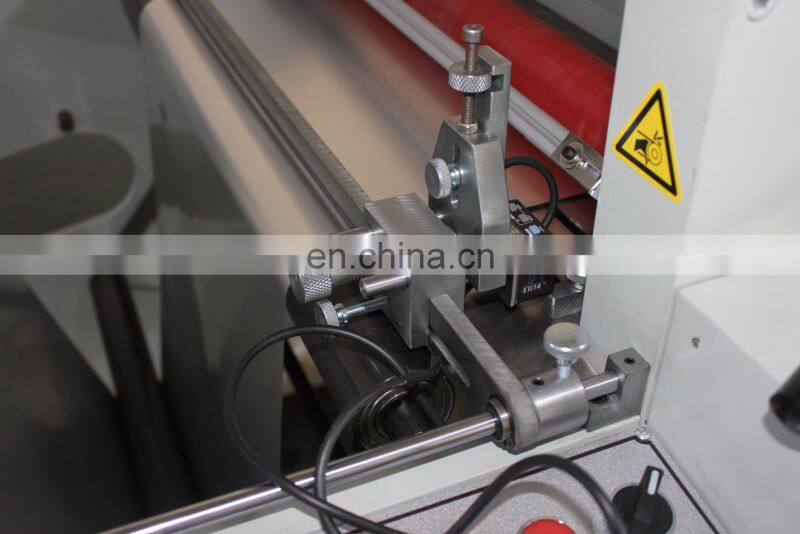

If added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.
ANTISTATIC SYSTEM
- Free sample testing and video for your reference
- Prompt delivery whthin 24 hours
- One year warranty ,whole life technical support
- Free training in our factory available before delivering machines
- Engineers available to service machinery overseas
- Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
- Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
If you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .
Material | Pictures are appreciated if possible |
Diameter | ID & OD |
Thickness | mm |
Weight | KG |
Length you want to cut | mm |
Width | mm |
