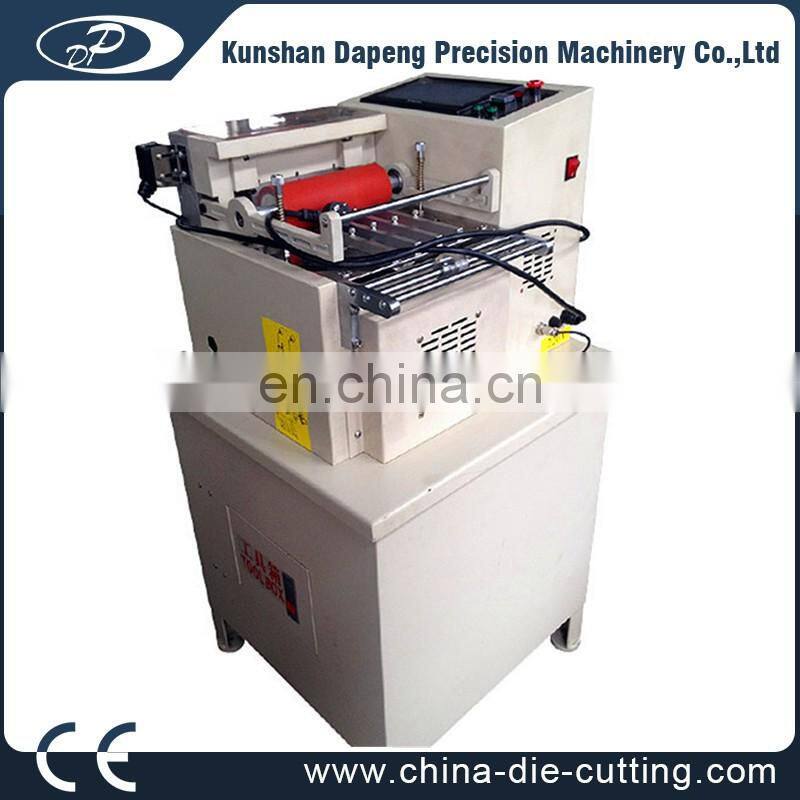

DP-160 Leather Belt Cutting Machine
1.Kiss cut or cut through available
2.Tolerance:0.05mm, Precision:0.1mm
3.Under SGS
Main Technical Parameter:
|
Model |
DP-160 |
|
Voltage |
220V |
|
Power |
1/2HP |
|
N.W. |
90kg |
|
G.W. |
140kg |
|
Cutting Length |
0.1~9999.9mm |
|
Cutting Width |
1~160mm |
|
Measurement |
550mmx550mmx1000mm |
Features:
1. The max width: 160mm
2. Tolerance: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under SGS.
6. Warranty for machine: 12months
7. Delivery time: 20-30days
Characteristics:
1. This machine employs microcomputer controller to set belt cutting length.
2. The cutting length is accurate.
3. Operation is easy.
4. Waste rate is low.
5. Manufacturing experience: 20 years
6. Export experience: 10 years
7. Cut through for standard machine
8. Kiss cut is for optional
Application:
Sizing cutting for heat shrinking tube, flat cable, PVC sleeve, insulation paper, two-sided tape, Hook and Loop fastern, cotton yarn belt, zipper, etc...
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
The machine is suitable for cutting with fastening belt , cotton yarn tape, elastic and plastic belt , zipper ,PVC or PET sleeves etc
Feeding side :

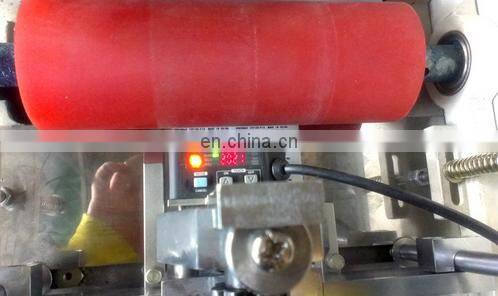

Mark Searching
PLC control

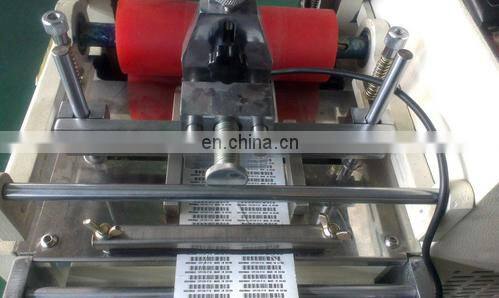

Upwards are the have printed label cutting to pieces
and our company have belt cutting machine below :
1, cold belt cutting machine , max width 100mm, desktop type
2, hot belt cutting machine , max width 100mm, desktop type
3, cold belt cutting machine , max width 160mm, have table type
4, hot belt cutting machine , max width 160mm, have table type , motor driven
5, hot and cold belt cutting machine, max width 160mm , have table type , Pneumatic cutting type
Please feel free contact with us
