DP-1300 Automatic High Speed Slitting Jumbo Paper Reel Slitter Rewinder Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Pvc Bopp Paper Roll Slitting Machine Nonwoven pe Plastic Film Thermal Paper Slitting MachineNegotiableMOQ: 1 -
Automatic Control Foam Slitting and Rewinding Machine With Differential ShaftNegotiableMOQ: 1
-
Automatic PU Leather Cut to Length and Slitting Line MachineNegotiableMOQ: 1
-
Factory Direct Sales Fabric Nonwoven Non-woven And Rewinding Non Woven Slitting MachineNegotiableMOQ: 1
-
Automatic Paper Plastic Film PVC PET BOPP Slitting and Rewinding MachineNegotiableMOQ: 1
Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Main Technical Parameter:
data as below is for reference only , you can customize to other data if required
Model |
DP-650FQ |
Max Feeding Width |
650mm |
Main Engineer Power |
2.2kw |
Speed |
80m/min |
Size |
2400x1700x1300mm |
Weight |
1000kg |
Rewinding Diameter |
600mm |
Winding Diameter |
450mm |
Precision |
±0.1mm |
Power |
220V 50HZ |
Model |
1300 slitting machine |
1600 slitting machine |
Max Feeding Width ( mm ) |
1300 |
1600 |
Main Engineer Power ( KW ) |
6 |
6 |
Speed (T/M ) |
120 |
120 |
Size ( mm ) |
2400*2000*1300 |
2400*2300*1300 |
Weight (kg) |
1200 |
1500 |
Rewinding diameter ( mm ) |
800 |
800 |
Winding diameter ( mm ) |
450 |
450 |
precision ( mm ) |
±0.10 |
±0.10 |
Power |
380V 50HZ |
380V 50HZ |
Charatertistics and Functions
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features for
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
Slitting part and waste trimming part
the blade size upwards is standard of 1300mm machine size , other larger diameter also optional
and down part can be Nylon roller optional when need slitting EVA sponge mterials
slitting blade 8 sets is standard , you can buy more when required
and minimum slitting width 10mm is optional
Rewinding part
2pcs 3 inch inflatable rewinding airshaft , magnetic powder clutch 50 N control the rewinding tension
double main motor
2 pneumatic arms to hold the rewinding shaft
the rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optional
With crank that can put the air-shaft easy on and off

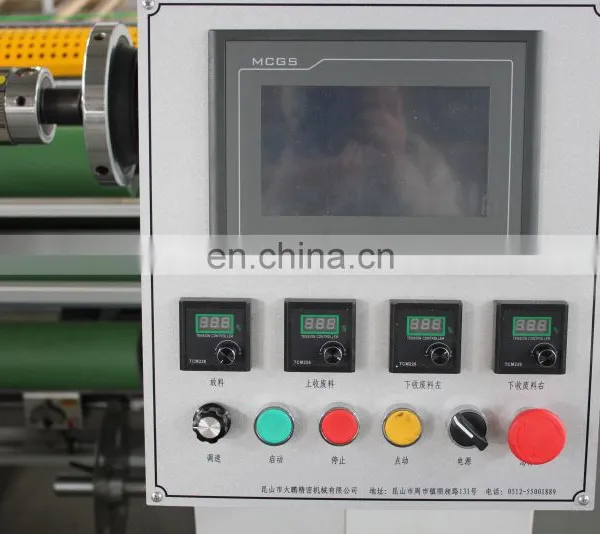

operation board
tension , meter counter are can be set in the touch screen , PLC control
OPTIONAL CAN PRODUCE MACHINE PARTS AS BELOW :
data as below is for reference only , you can customize to other data if required
waste rewinding motor part
this item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse
Anti-sticking guiding roller optional
when you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding roller
OPTIONAL PLC controlled
the slitting machine can choose PLC control
the PLC we use is Mitsubishi brand
with tension control board
with frequency control
cutting blade part have protective cover
to keep operation safety , when you setted well the cutting blade , please cover the protective cover
