Home > Packaging & Printing > Packing Machinery > Laminating Machine > Carbon Film Roll Shielding Film Heating Film Laminating Machine

Carbon Film Roll Shielding Film Heating Film Laminating Machine

Carbon Film Roll Shielding Film Heating Film Laminating Machine thumbnail-3

Carbon Film Roll Shielding Film Heating Film Laminating Machine thumbnail-4

Carbon Film Roll Shielding Film Heating Film Laminating Machine thumbnail-5

Carbon Film Roll Shielding Film Heating Film Laminating Machine photo-1

Carbon Film Roll Shielding Film Heating Film Laminating Machine photo-2

Carbon Film Roll Shielding Film Heating Film Laminating Machine photo-3

Carbon Film Roll Shielding Film Heating Film Laminating Machine photo-4

Carbon Film Roll Shielding Film Heating Film Laminating Machine photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Association

Year Established:

2000

Annual Export Value:

US$1.5 Million - US$2.5 Million

Contact Supplier Request Quote Chat Now

Kunshan Dapeng Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

SPECIFICATIONS FOR carbon film heating film laminating machine
Model	DP-1000RTH
laminating speed	1- 20m/min
Max. unwinding diameter	450mm
Max. web width	1000mm
Max. REWINDING DIAMETER	600MM OR CUSTOMIZED
Precision	±0.10mm
Power	11kw
Voltage	380v±10%
Machine weight	4000kg

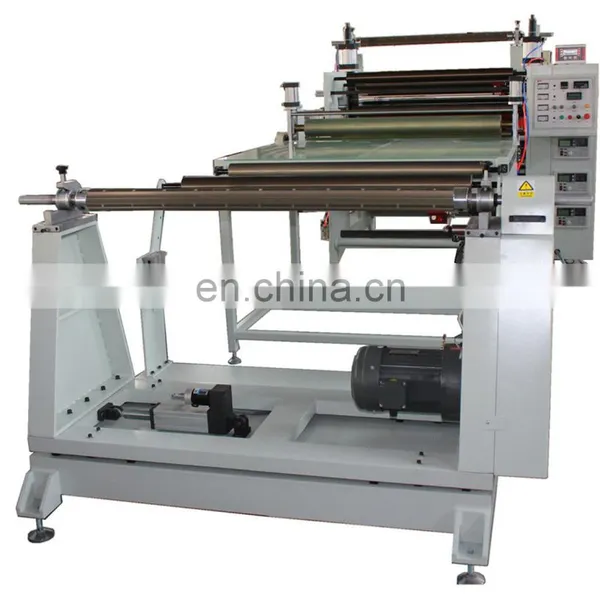

unwinding part

this is unwinding part , with rectification function , 3 inch air-shaft , bearing at least 300KG each roll no pproblem

hot heating roller

hot heating roller now are use the Mold temperature controller to control the heating degree , let the carbon film , heating film , copper strip can laminating more stick and smooth， and not stratch material

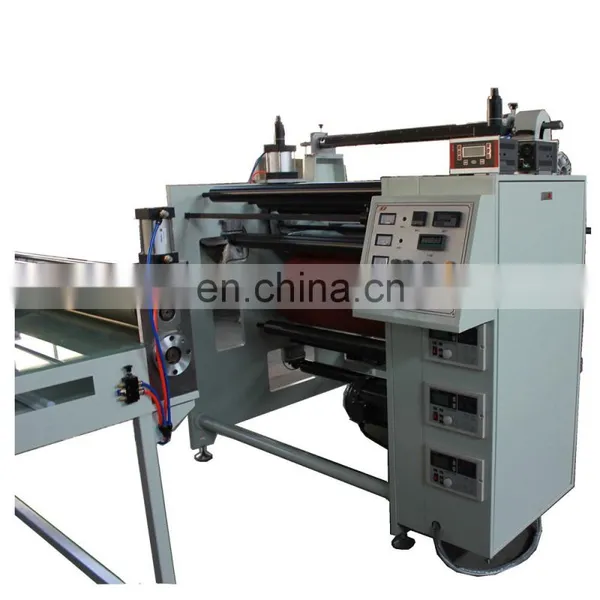

operation control board

all part can be controlled at here , degree , tension , meter control , speed control etc , all are use English and let your operator use good

RECTIFICATION SYSTEM

ULTRASONIC CONTROL

INSPECTION PART AND REWINDING PART

after laminating , the carbon film, heating film , and the copper strip laminating together , there is lamp to inspection and drying , then rewinding

the rewinding part also with Ultrasonic edge guide

BELOW IS THE LAMINATING MACHINE WHOLE PICTURE ,

MAIN MACHINE LAMINATING , WITH SHAFT OF UNWINDING FILM, COPPER STRIP , CARBON FILM, HEATING FILM ETC

AFTER LAMINATING , GOING THROUGH THE GLASS TABLE , THIS TABLE WITH LIGHT THAT CAN SEE THE AFTER LAMINATING PART CLEARLY

AND AT LAST REWINDING TO A ROLL

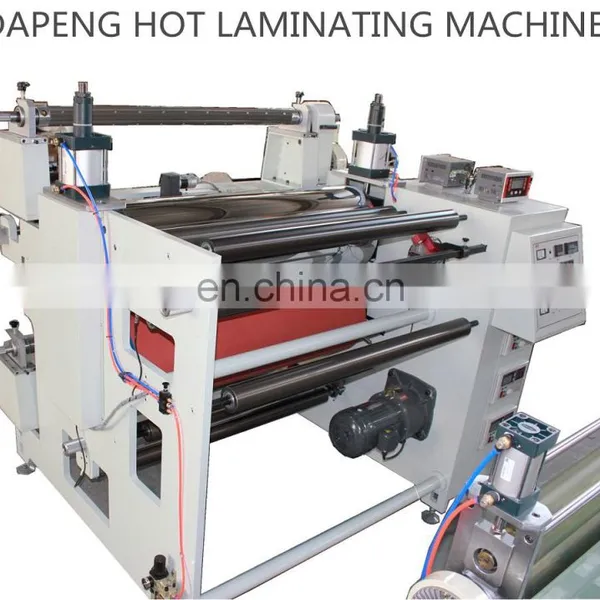

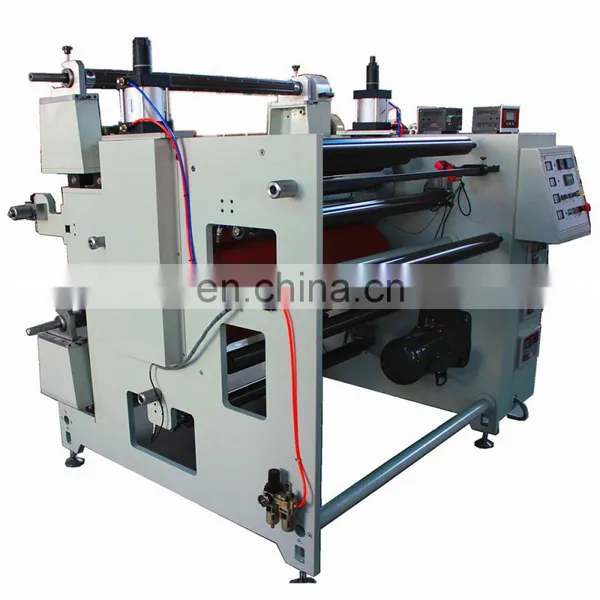

below is main machine part , unwinding carbon film , heating film and the copper strip

this heating film laminating machine, carbon film laminating machine , copper stip laminating machine

you can see these unwinding part are with web gide control

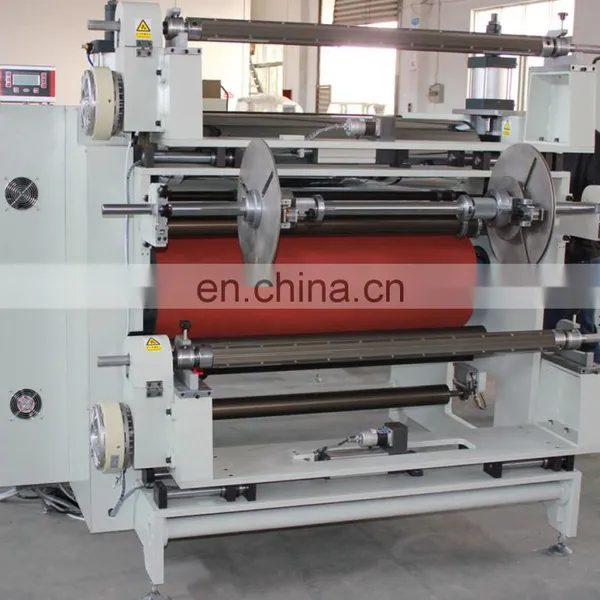

and the heating roller are jumbo diameter , this one with 300mm diameter

all the guiding roller are use smooth surface and no stratch material

After Sales Service

After sale service for high efficient adhesive tag label flat bed die cutting machine is as follow :

1. Free sample testing and video for your reference

2. Prompt delivery within 24 hours

3. One year warranty ,whole life technical support

4. Free training in our factory available before delivering machines

5. Engineers available to service machinery overseas

6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.

7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
