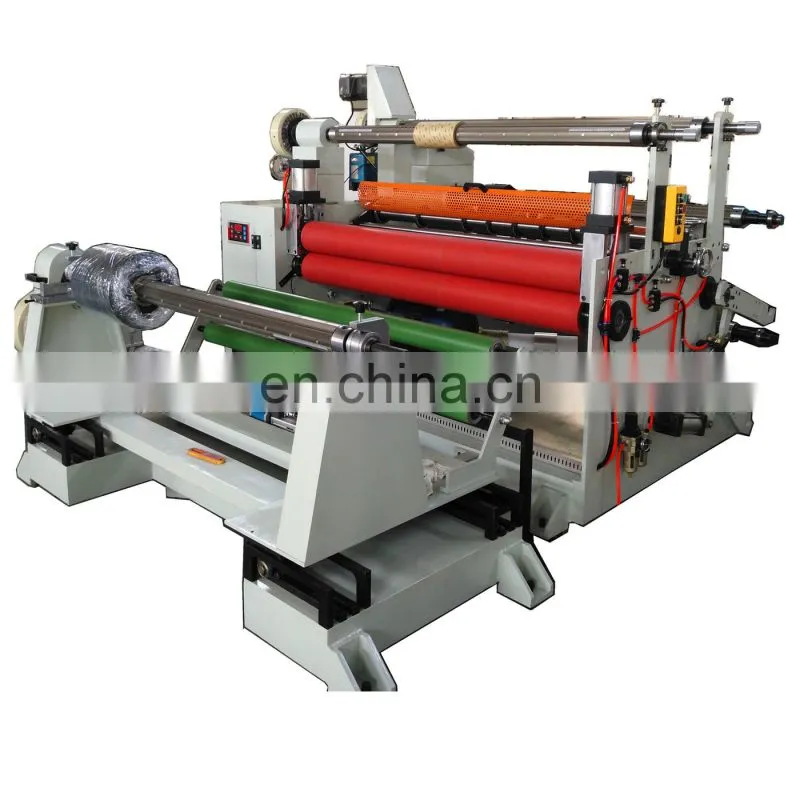

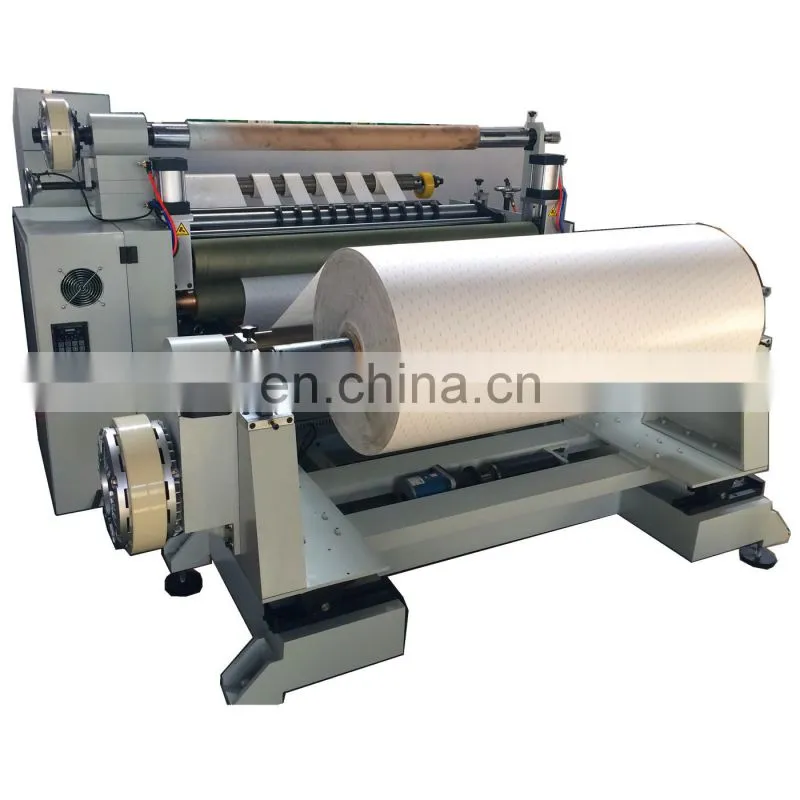

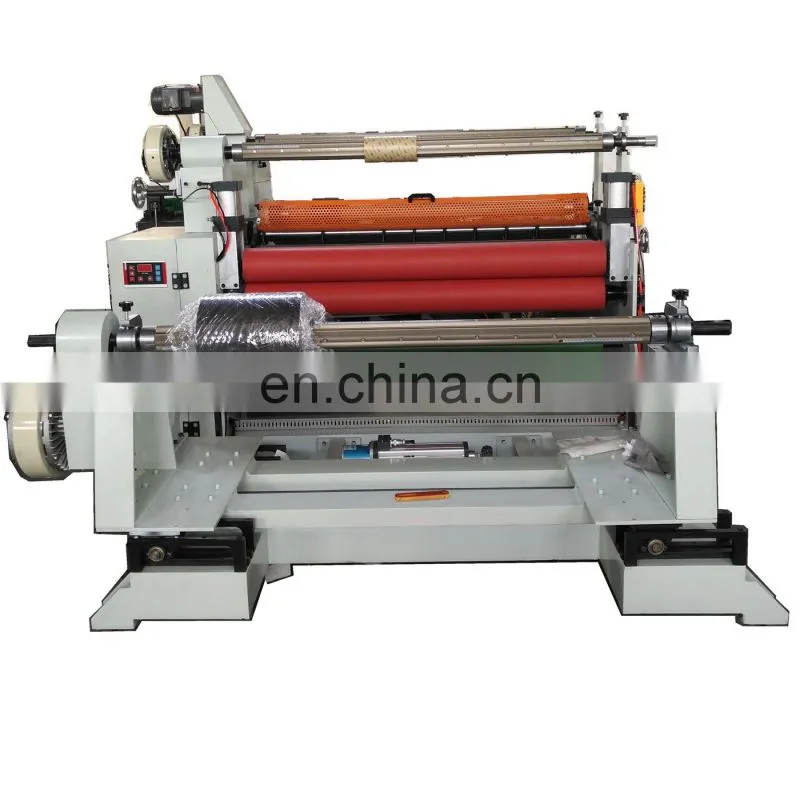

Machine Name :DP-1600 Slitting Machine(Two Motor)

1. Technique Data

Machine Speed : 110m/min

Max material diameter : 1600mm

Feeding Diameter : 800 mm

Rewinding diameter : 450mm

Slitting accuracy :±0.1mm

Voltage:380V 50HZ

Main Motor Power :5.5kw (2 motor power)

Total Power: 8kw

Raw material Max hole diameter: 3”

compress air source:(0.4-0.6)Mpa(customer-owned)

Finished products Min. Width by standard slitting :25MM

Main Machine size :2400*2300*1300mm

Feeding Machine size : 1950*880*780mm

Weight : 2.2T

2, Feeding Device

Feeding Air Expansion Shaft (3”Pad Shaft)                    2 Sets

magnetic powder brake 100N                                 1 Set

   Film release Magnetic Powder Brake 50N                      1 Set

Feeding Tension Control System                              2 Sets

Correction System(Taiwan Gas and Liquid correction)         1 set

3, Renewal Material Laminating Part :

Upper Laminating COTS  Dia.135(PU)                       1 Set

Under Laminating COTS  Dia.135(PU)                          1 Set

Aluminum guide roller(hard Oxygen surface treatment)          1 Set

Pressure roller pneumatic type top and bottom system adjustable :          1 Set

electronic counter                                             1 Set

Film Release tensioning adjustable system

4. Reeling end

Receiving Flatulence axis(3″Pad shaft)               2 Sets

magnetic powder clutch 50N                            2 Sets

he receiving tension control system                   2 Sets

Main electrical machine (double motor)                     1 Set

Main Power inverter                        1 Set

Winding shaft and pneumatic up and down device(Rise,descend ,support)  1 Set

5. Operator control box                                 1 Set

6.Electric control panel                                 1 Set

7. Function Profile

frequency control of motor speed, operation more easy. Control more accurate.

Double receiving roller  center take up , rewinding

Double receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual use

Electronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15M

Independent fan waste discharge.

Double motor configuration,The scroll of rewinding can be positive and negative transfer .

8. Slitting part

Slitting up and down cutter    10 sets

Circle tool apron            10 sets

Slitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs
