The DS200DCFBG1BJB is a board component manufactured by General Electric as part of the Mark V Speedtronic system. The DS200DCFBG1BJB is used to supply control level power to drives and to the enclosure fan. The DS200DCFBG1BJB is used within EX2000 applications, as well as DC2000, FC2000, GF2000, ME2000, CB2000, and AC2000 IGBT drive applications.

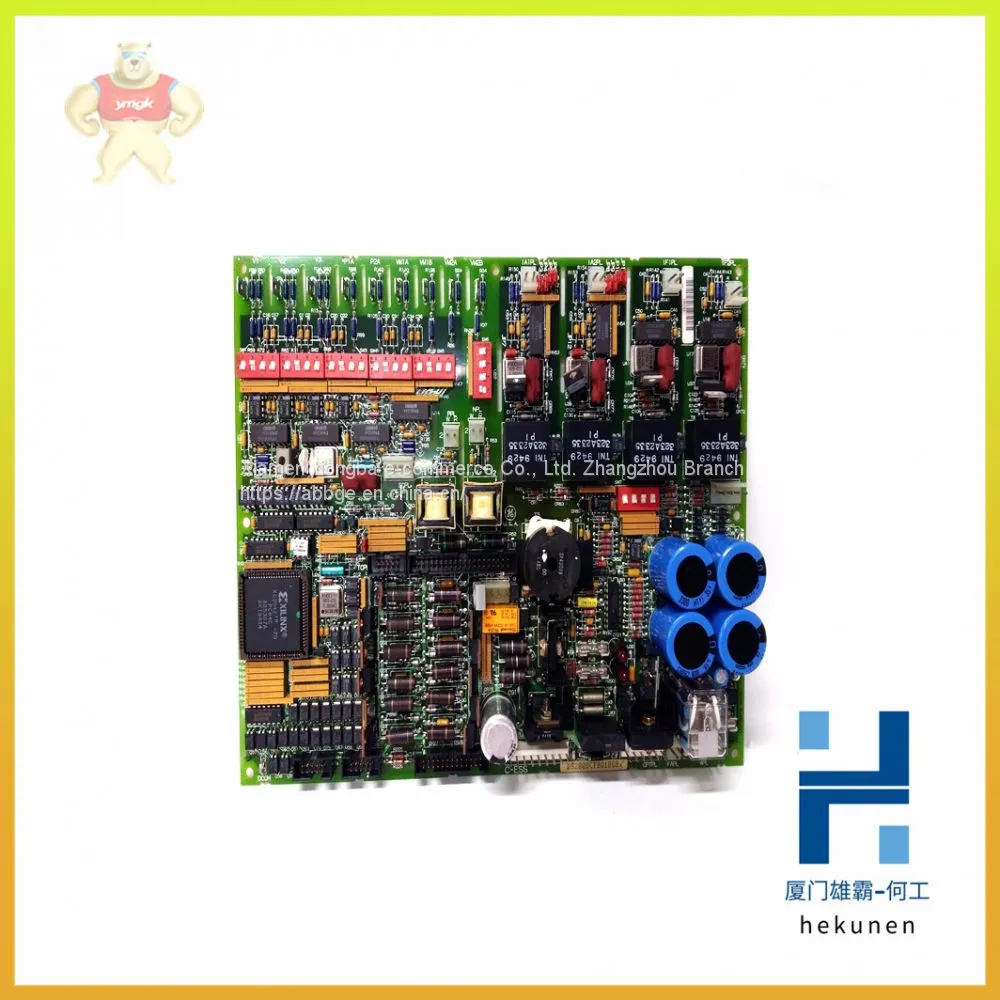

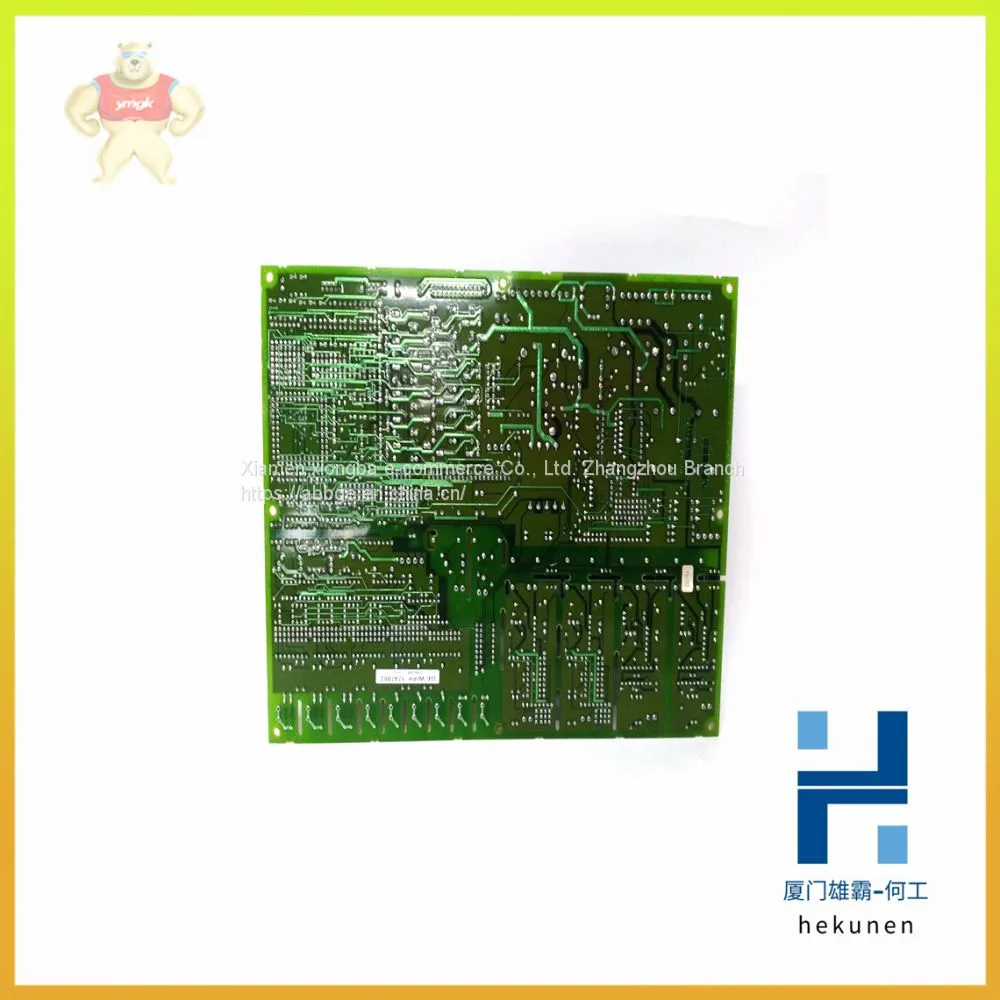

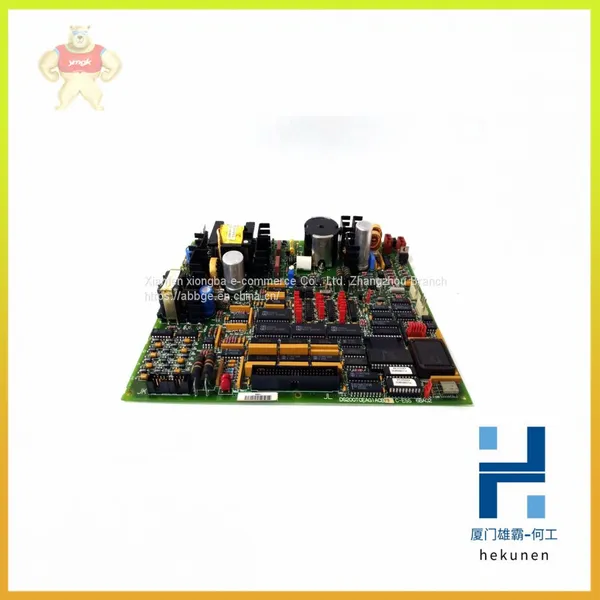

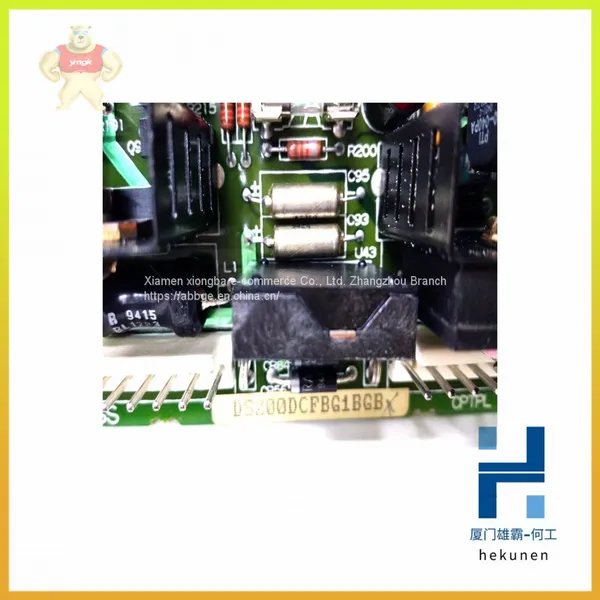

The DS200DCFBG1BJB is a large rectangular circuit board that has a large number of components mounted to its surface. These include seven 4-position DIP switch devices and twelve configurable jumpers. Six of the DIP switches are located together on one side of the board. These are used to scale or change a number of different inputs. For example, switch number 4 (SW4) is used for scaling the voltage applied to the VCO output bridge circuit. The board also has a single neon lamp that is used to indicate a blown fuse in the 115 VAC line and two LED indicators that are used to indicate blown fuses in the +24 VDC line and the -24 VDC line.
Other board components include test points, I/O connectors (1PL-1 through 1PL-40,2PL-1 through 2PL-9, 4PL-1 through 4PL-5, and 5PL-1 through 5PL-26), along with fuses, integrated circuits, resistor networks and resistors, capacitors, transistors, heat sinks, transformers, and relays. Test points on this board are used to check voltage signals. Fuses are for protection. More detailed information regarding board components and their uses can be found through publications provided by General Electric, like user guides and manuals. These products were typically provided with your original purchase. If you no longer have access to this material, AX Control may be able to provide you with replacements along with your order.
