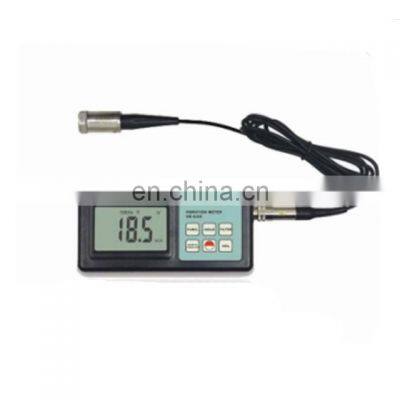

VM-6360 Digital Vibration Meter With Wide Frequency Range Vibration Measurement

Model:

VM6360

Accuracy:

<5%

Frequency

1-20 kHz

Metric/imperial conversion

With RS232C interface       Digital Vibration Meter

Regulated output

AC output 2.0V peak full scale

Power supply

4x1.5V  AAA(UM-4)battery

Power off 2 modes:

Manual off at any time or Auto power off after 5 minutes from last key operation

Operating conditions:   Digital Vibration Meter

Humidity

below 90% RH    Digital Vibration Meter

Battery indicator

low battery indicator

Dimension

124x62x30mm//4.9x2.4x1.2 inch

Weight

120g(not including battery)       Digital Vibration Meter

Display

4 digits, 18 mm LCD

Transducer

Piezoelectric accelerometer       Digital Vibration Meter

Parameters measured

Velocity, Acceleration, and Displacement RPM and Frequency

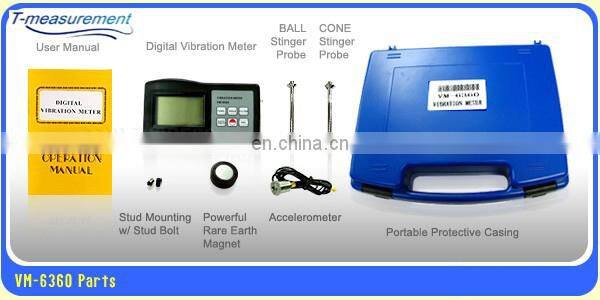

Optional accessories

Digital Vibration Meter

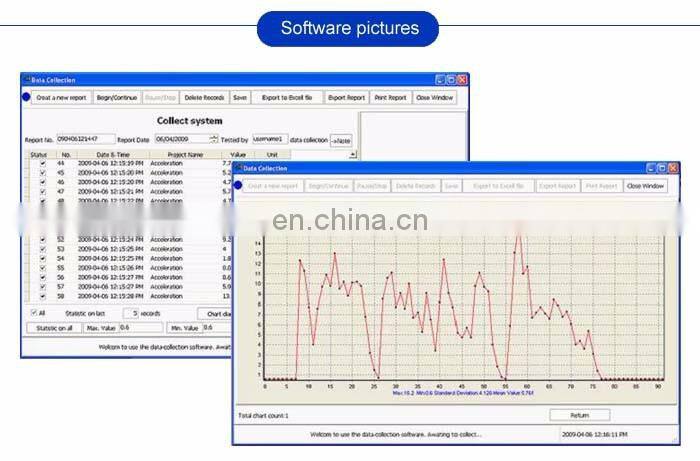

RS-232C cable & software:

1.USB adaptor for RS-232C

2.interface

Temperature

0-50℃        Digital Vibration Meter

RPM(revolution):

5-100,000r/min

Frequency range for measuring

Acceleration :

10Hz. to 1kHz. In '1' mode                                10Hz. to 10kHz. In  '10'  mode  for                                                    bearing condition check

Velocity :

10Hz. to 1kHz.         Digital Vibration Meter

Displacement

10Hz. to 1kHz.   Digital Vibration Meter

Measuring range         Digital Vibration Meter

Velocity

0.01-40.00 cm/s  true RMS

0.000-16.00 inch/s
