Product Description
Product Description
Introduction
HT-225 is applied to test the compressive strength of building concrete components, bridge and so on. HT-225 submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805.
Details Images
Standard impact energy | 2.207±0.1J (0.225Kgf.m) |
The static friction of pointer slider | 0.65N±0.15N |
Length of spring stretch | 75±0.3mm |
Average rebound hammer on steel anvil Rm | 80±2 |
Measuring Range | 10~60Mpa |
Radius of spherical tip | 25mm±1mm |
Working Temperature | -10℃~+50℃ |
Working Humidity | ≤90%RH |
Dimensions | Φ54x280mm |
Net weight | About 1.0Kg |
Related Product

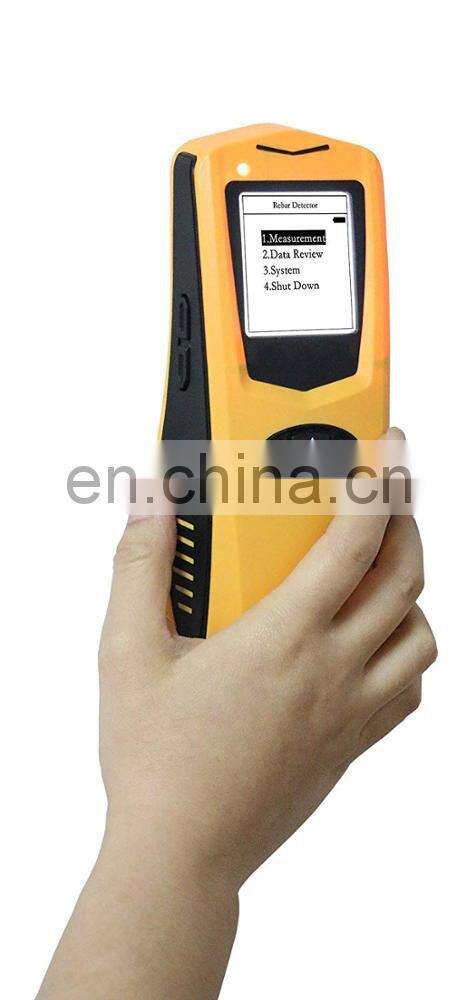

TEM-620XH Rebar Locator
Concrete Tester New Rebar Detector, Metal Detector Covermeter For Sale
The first generation portable rebar integrated detector TEM-620X uses an electromagnetic induction method, which can detect the rebar location and cover.
The first generation portable rebar integrated detector TEM-620X uses an electromagnetic induction method, which can detect the rebar location and cover.
ZBL-R630A Rebar Locator
ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation and distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magnetic and conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.

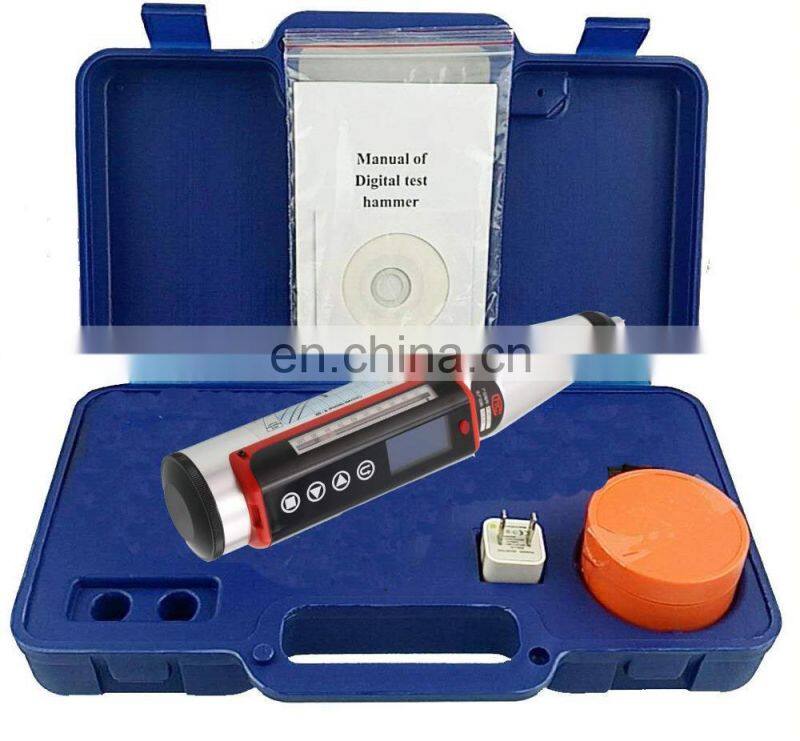

HT-225Q Digital Concrete Tester Hammer
HT-225Q Digital Concrete Hammer is a high-tech product, special designed for the needs of in place test for concrete compressive strength applied to non-destructive test (NDT) hardened concrete compressive strength component in construct projects

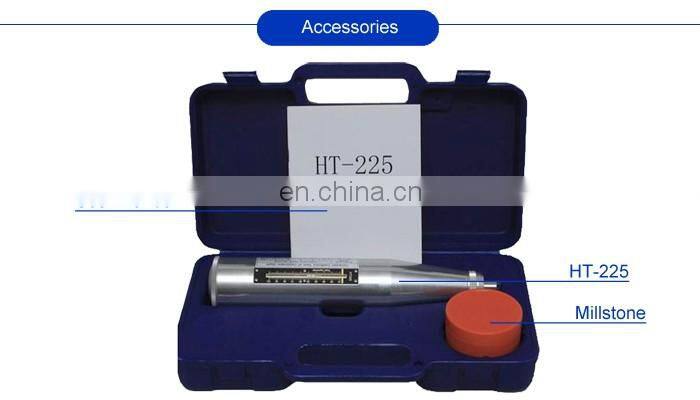

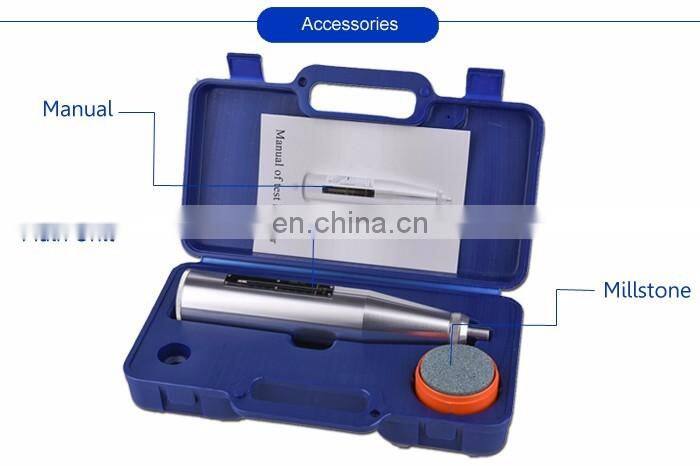

Packing
Packing List
1.Main Unit-----------------------1
2.Millstone------------------------1
3.User Manual-------------------1
4.Carrying case-----------------1
