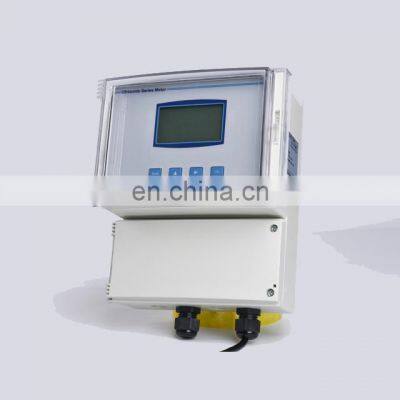

Diesel Engineering Ultrasonic Oil Level Gauge Transmitter Level Sensor Manufacturers photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Features

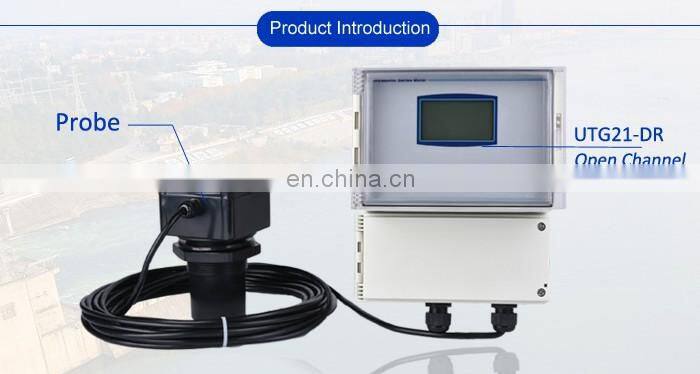

UTG21-PR ultrasonic level transmitter

* Four change rates are available, so as to read average liquid level accurately even if the liquid level fluctuates drastically.
* Six display modes are available, to display echo waveform and historical curve.
* Internally integrated temperature sensor provides real-time temperature compensation to sound speed.
* On-site operation is available with liquid crystal display and keyboard.
* 4～20mA current diagnostic function.
* Chinese and English displays are available; meter and inch are available.
* Carry out automatic detection of on-site electrical disturbance and interference suppression.
* All input and output lines have overvoltage and overcurrent protection.
* Provide alarm current output function.
* Non-contact measurement owns a long service life.
Specification
System
Integrated two-wire system
Basic parameters
Measurement range
0～5m, 0～10m, 0～15m, 0～20m
Block dist.
0.35～0.6m
Precision
±0.3%FS* (standard conditions *)
Resolution
±2mm
Input
Supply voltage
DC12～36V / AC 85~264V
Maximum current
50mA~100mA
Ripple wave requirement
Less than ±200mV
Output
Simulated current
Load 500Ω
Digital interface
Rs485 / ModBus-RTU
Interface
Process interface
G1 1/2” or G2”
Electrical interface
PG11
Material
Transmitter
ABS
Probe
Ordinary waterproof ABS / anti-corrosion ETFE
Flange
Ordinary waterproof ABS/ anti-corrosion ETFE
Environmental condition
Environment temperature
-20℃～+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, add
ultraviolet-proof protective cover.
Waterproof grade
IP65
Process condition
Process temperature
-40℃～+90℃, high-temperature probe shall be used in case of over 70℃.
Process pressure
0.8～3bar or 0.08～0.3Mbar abs / below 3000 meters altitude.
Probe Cable Length
RVVP 4*0.3 / less than 200m
Packing & Delivery
Trade terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
Application
Related Product

UTG21-H ultrasonic level transmitter

UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.

UTG21-PY ultrasonic level transmitter

UTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.

UTG21-BE ultrasonic level transmitter

UTG21-BE for non-contact, not in direct contact with liquid, low failure rate. All input and output lines of the instrument must have lightning protection, anti-short circuit protection.
