Taijia BTU Meter and chilled water flow meter for HVAC Industry Modular Portable ultrasonic flowmeter

Model Number

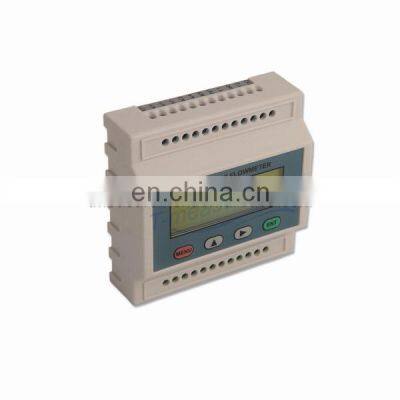

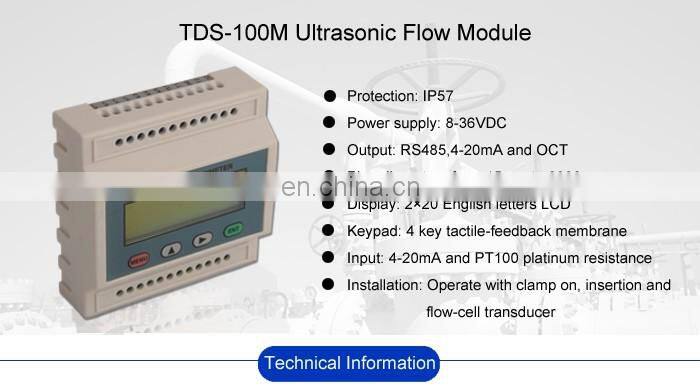

TDS-100M ultrasonic flow meter

Accuracy

better than 1%

Repeatabilty

better than 0.2%

Output

1XMODBUS,RS485,4-20mA and OCT output

Transducer type

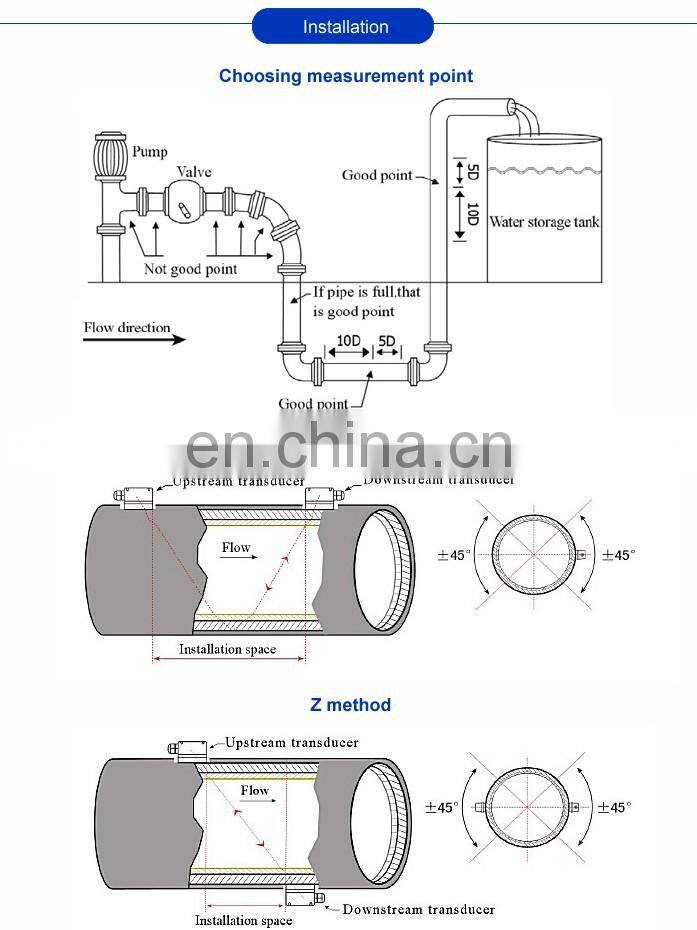

Operate with clamp on, insertion and flow-cell transducer

Flash memory

All the parameters can be solidify into the flash memory

Several optional function module to be chosen to add to the main module

Communication protocol

3 different kinds of communication protocol supported by the same time, include MODBUS

Parallel interface for display and keypad.

Operate

easy to operate

Digital inputs

can be inputted by used of the analog inputs

Power supply

8-36VDC~24VDC

Batch controller

full programmable built-in batch controller can be started by key-pressing, inputs to the analog inputs or through MODBUS protocol

Date totalizers

Record as much as 128 sets of data by day, 64 sets of data by month.

MODBUS registers

All the data can be retrieved by use of the MODBUS registers
