Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY

Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY photo-1
Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY photo-2
Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY photo-3
Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY photo-4
Digital Weight Indicator Wireless Dynamometer WITH LCD DISPLAY photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

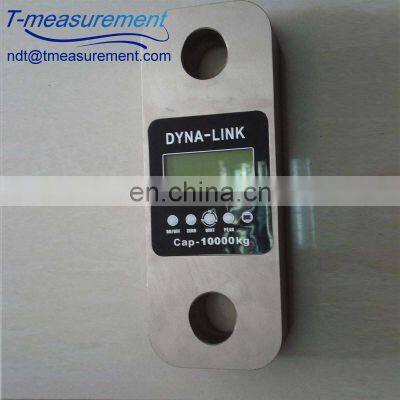

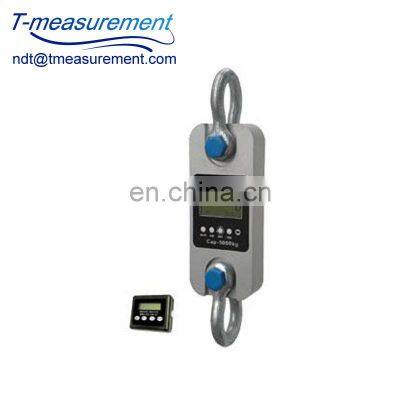

Digital Weight Indicator wireless dynamometer WITH LCD DISPLAY

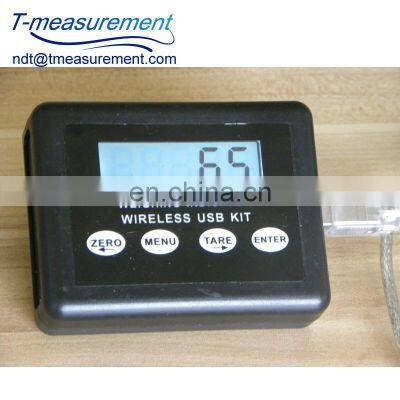

DL-W1 wireless dynamometer is an extremely well-built instrument for industry us ,as a standard wireless tool offer universal applications, the indicator 180 have USB port, Communicate with PC, Solve many laptops without serial port problem. DL-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 180 indicator.

Detailed Images

Body protection: Aluminum and alloy steel capacities are powder coated.

Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurement reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)

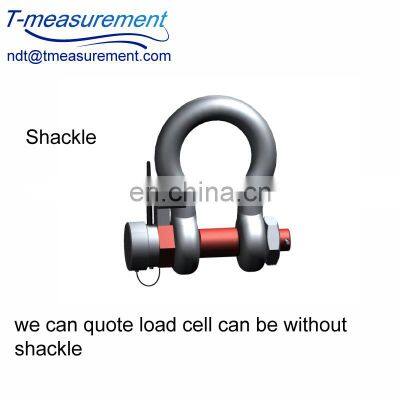

Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.

Functions: wireless indicator with many functions: Zero, tar, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point: Two user programmable Set-Point can b used for safety and warning applications or for limit weighing.
Package: Packed with carry case, easy to bring.
Indicator key: 4 local mechanical keys: ”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.

Application
Dimensions
Specifications

Main technical data of DL-W1 wireless load cell

Body Display
25mm (1’’) 5digits LCD with backlight
Ultimate Load
400% F.S.
Indicator Display
25mm (1’’) 5digits LCD with backlight
Battery Life
≥50 hours
Power on zero range
20% F.S.
Ultimate Load
400% F.S.
Manual Zero Range
4% F.S.
Body Battery
“LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Tare Range
20% F.S.
Indicator Battery
“LR6(AA)”size alkaline batteries. 1.5Vⅹ4
Stable Time
≤5 seconds
Operating Temp.
- 20℃ ~ + 50℃
Overload Indication
100% F.S. + 9e
Operating Humidity
≤85% RH under 20℃
Max. Safety Load
125% F.S.
Wireless Distance
Min. 80m(default) [200m(optional)]
Weights
Model
DL-W1-1
DL-W1-2
DL-W1-3
DL-W1-5
DL-W1-10
Unit Weight(kg)
1.6
2.1
2.1
2.7
10.4
Weight with shackles(kg)
3.1
4.6
4.6
6.3
24.8
Model
DL-W1-20
DL-W1-25/30
DL-W1-50
DL-W1-100
DL-W1-200
Unit Wight(kg)
17.8
25/25
39
81
210
Weight with shackles(kg)
48.6
73/73
128
321
776
