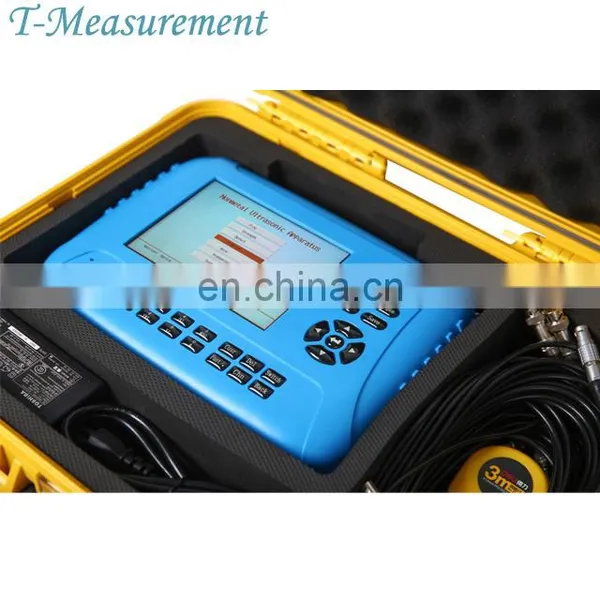

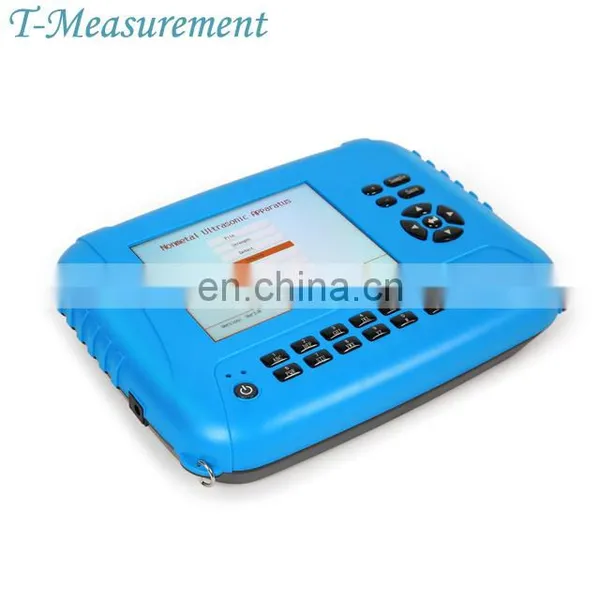

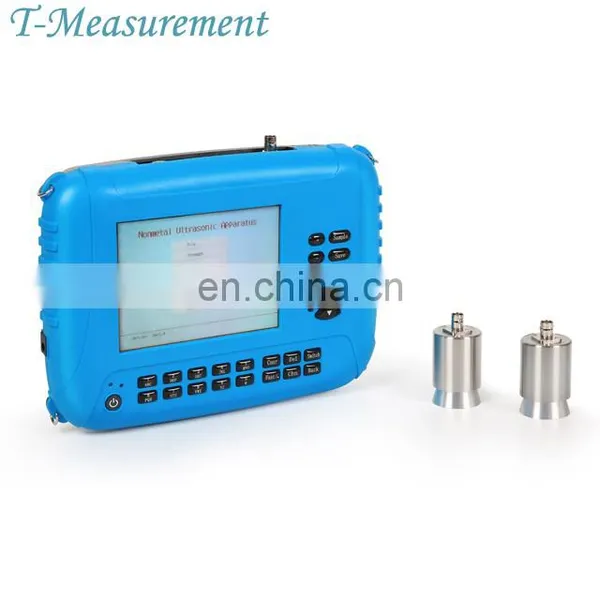

Taijia CJ-10 Ultrasonic Pulse Tester With Pulse Velocity Tester UPV For Ultrasonic Pulse Velocity
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Taijia MD120 Multifunctional Handheld Wall Metal Detector Magnetic Nail FinderNegotiableMOQ: 1 -
Taijia ZD310 Rebar Locator Ferro Scan Concrete Cover Meter Concrete Reinforcement Cover Detect Device Rebar DetectorNegotiableMOQ: 1
-
YFD-300 NDT Training Ultrasonic Flaw DetectorNegotiableMOQ: 1
-
UT Testing Machine YFD-200 Ultrasonic Welding Flaw Testing Test Ultrasonic Flaw DetectorNegotiableMOQ: 1
-
Taijia Concrete Slab Thickness Meter for Concrete/ Glass/nonmetallic Board Concrete Floor Thickness GaugeNegotiableMOQ: 1
Product Description
Purpose Of CJ-10 Ultrasonic Pluse Detector
1.Testing of building foundation piles by cross-hole sonic logging
2.Inspection of concrete defects by ultrasonic method such as uncompacted , cellular, hole area. 3.Detecting defects of one hole by one trigger two receive.
4.Testing dynam performance of geotechnical investigation rock concrete etc.
2.Inspection of concrete defects by ultrasonic method such as uncompacted , cellular, hole area. 3.Detecting defects of one hole by one trigger two receive.
4.Testing dynam performance of geotechnical investigation rock concrete etc.
Specification
item | CJ-10 Ultrasonic Pulse Detector |
Place of Origin | China |
Brand Name | Tmeasurement |
Model Number | CJ-10 |
Temperature | -10℃ + 40℃ |
Weight | 260mm x 185mm x 60mm |
Sample Periods | 0.05μs~6.4 8μs grades electable |
Amplifier band width | 5KHz~500 kHz |
Amplifier gain | 82dB |
Receive sensitivity | <= 30μv |
Trigger Voltage(V) | 65,125,250,500,1000 selectable |
Receive Channel | Two |
Interface | USB |
Storage | 1G Internal 2G U-Disk |

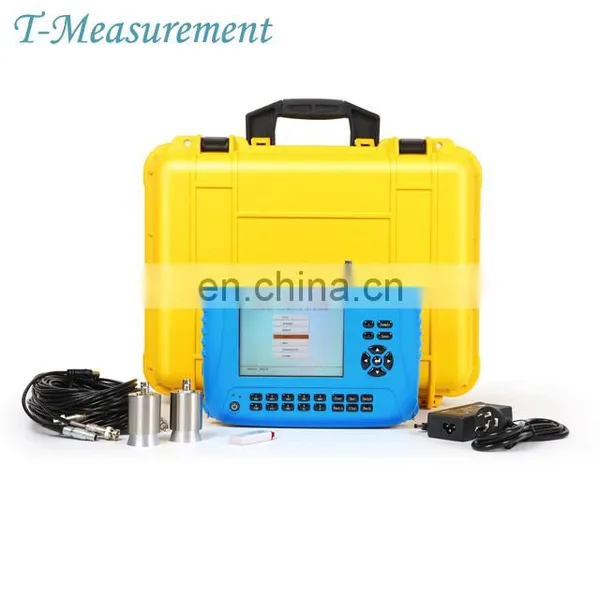

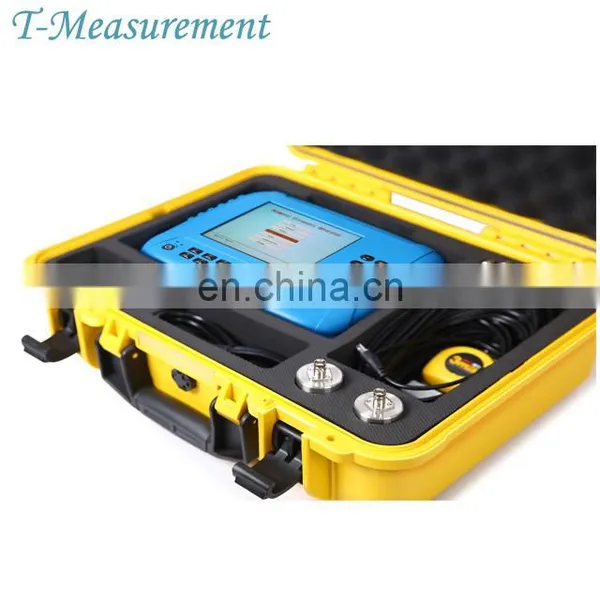

Accessories Of Cj-10 Ultrasonic Pluse Detector:
1.Instrument
2.Signal Cable
3.Plane energy transducer
4.U-Disk
5.Box staff
6.Box
7.Lithium battery(selectable)
2.Signal Cable
3.Plane energy transducer
4.U-Disk
5.Box staff
6.Box
7.Lithium battery(selectable)
Features
CJ-10 Ultrasonic Pluse Detector
1.High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance )
2.Display the test data graphically. User can watch analyze result directly
3.Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;
4.Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily
5.Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound
apparatus directlyand get strength of concrete in time. The functions apply for national patent.
6.Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects
7.Can supply smooth power for radial energy transducer needless external power.
8.Standard USB storage with big capacity.
9.Interior lithium battery supply power for apparatus work more than 6 hours.
10.Portable, small, light apparatus (1.75Kg).
11.Extending function for testing thickness of concrete by impacting echo method. 12.Professional and powerful analysis software
on windows system. It can export the data to Excel or word for advanced analysis
2.Display the test data graphically. User can watch analyze result directly
3.Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;
4.Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily
5.Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound
apparatus directlyand get strength of concrete in time. The functions apply for national patent.
6.Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects
7.Can supply smooth power for radial energy transducer needless external power.
8.Standard USB storage with big capacity.
9.Interior lithium battery supply power for apparatus work more than 6 hours.
10.Portable, small, light apparatus (1.75Kg).
11.Extending function for testing thickness of concrete by impacting echo method. 12.Professional and powerful analysis software
on windows system. It can export the data to Excel or word for advanced analysis
Company Profile
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
Contact Us
Trade terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033
E-mail:commercial@tmeasurement.com
TEL:86-411-39685079
Whatsapp:+8618842866177
web:/
E-mail:commercial@tmeasurement.com
TEL:86-411-39685079
Whatsapp:+8618842866177
