Professional ultrasonic instrument Ultrasonic Testing portable flaw detector
This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling.

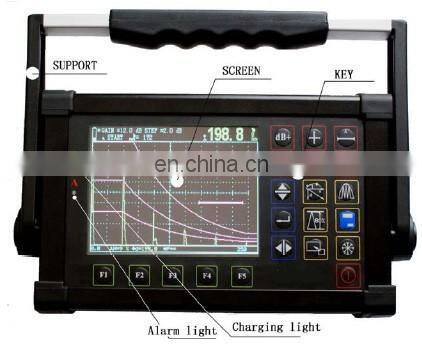

Ultrasonic Flaw Detector
Features of Ultrasonic Flaw Detector
1. Automated calibration of transducer Zero Offset and/or Velocity ；
2. Automated gain、Peak Hold and Peak Memory；
3. Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)；
4. Automated switch three staff gauge ((Depth d、level p、distance s)；
5. 100 independence setup, any criterion can be input freely, we can work in the scene without test block；
6. Big memory of 300 A graph.
7. Gate and DAC alarm；Acoustic-Optical alarm;
8. RS232/USB port，communication with pc is easy；
9. The embeded software can be online updated；
10. Li battery, continue working time up to 10 hours;
11. Display freeze;

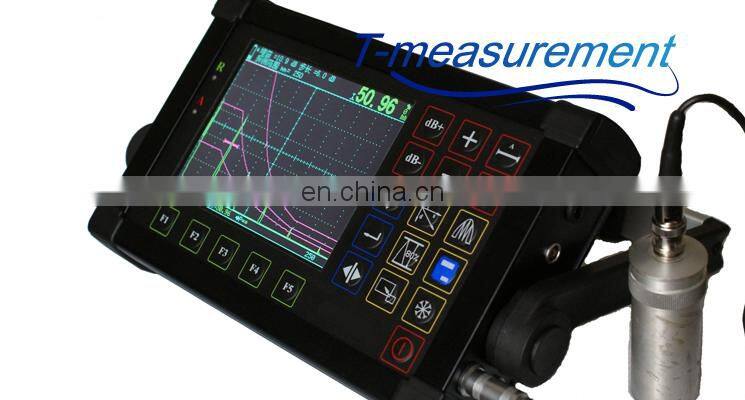

Ultrasonic Flaw Detector
12. Automated echo degree;
13. Angles and K-value;
14. Lock and unlock function of system parameters;
15. Dormancy and screen savers;
16. Electronic clock calendar;
17. Two gates setting and alarm indication;
18. High-speed capture and very low noise;
19. DAC、AVG、TCG、B Scan ; Solid metal housing (IP65);
20. Automated calculate the size of the flaw with w ide bottom type in AVG function.
21. 6dB DAC functions;
22. Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
23.Powerful pc software and reports can be export to excel;
Designation |
Technical Data |
Range of scanning (mm) |
0～10000 |
P-delay (μs) |
0.0～99.99 |
MTLVEL（m/s） |
1000～15000 |
Frequency Range (MHz) |
0.5~20 |
Gain adjustment (dB) |
0～120 |
Reject |
0%～80% of screen height, step: 1% |
Vertical linear error |
Vertical linear error is not more than 3% |
Horizontal linear error |
Not more than 0.2% in the scanning range |
Dynamic range |
≥34dB |
Alarm |
Three modes, i.e. forbidden wave, loss wave and auto |
A-Scan display area |
Full screen or local A-Scan display freezing and de-freezing |
Data save |
300 A-Scan images |
Measuring unit |
mm/inch |
Battery |
Li battery 7.4V 4800mAh |
Power adaptor |
Input 100V～240V/50Hz～60Hz Output 9VDC/1.5A |
Working temperature |
-20℃～50℃ |
Working humidity |
20%～90% |
Port type |
LEMO 1 |
Overall dimension (mm) |
240×150×50 |
Weight (kg) |
1.6 |
