Taijia TM-8812 Ultrasonic Thickness Measurement Gauge Material Thickness Ultrasonic Thickness Gauges Measurement
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia Profometer ferroscan Concrete Steel Rebar locator rebar detector scanner
-
Taijia tferroscan/Profometer Rebar Locator rebar detector scanner
-
Taijia CJ-10 Ultrasonic Pulse Tester With Pulse Velocity Tester UPV For Ultrasonic Pulse Velocity
-
Taijia MD120 Multifunctional Handheld Wall Metal Detector Magnetic Nail Finder
-
Taijia ZD310 Rebar Locator Ferro Scan Concrete Cover Meter Concrete Reinforcement Cover Detect Device rebar detector
-
YFD-300 NDT Training Ultrasonic Flaw Detector
Product Description
Product Description

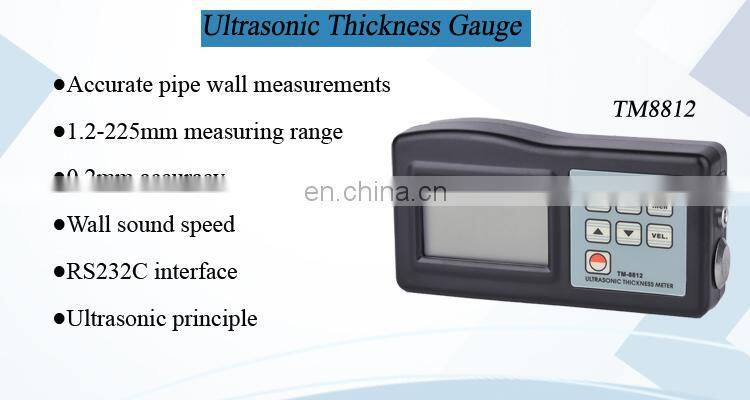

TM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

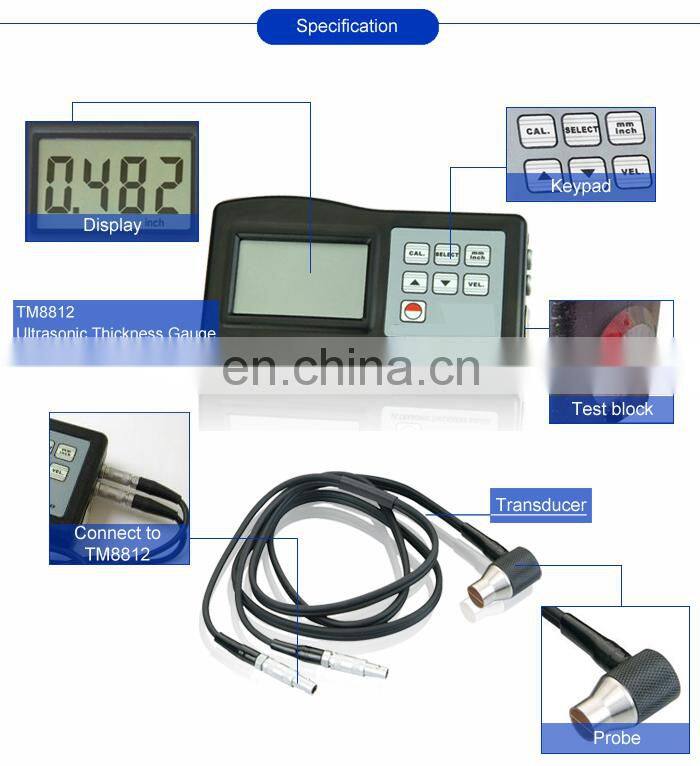

Specification
Model | TM-8812 Thickness Gauge |
Measuring range(Metric Imperial) | 1.0~225 mm 0.05~9 inch |
Operating principle | ULTRASONIC |
Sound velocity | 500~9000 m/s |
Lower limit steel pipes | Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer |
Calibration block | Included |
Resolution | 0.1 mm |
Accuracy | ±(0.5%n+0.1) |
RS232C interface | With RS232C |
Power supply | 4 x1.5V AAA(UM-4) |
Battery indicator | Low battery indicator |
Operating conditions | 10~90% RH |
Details Images
Ultrasonic thickness meter’s Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

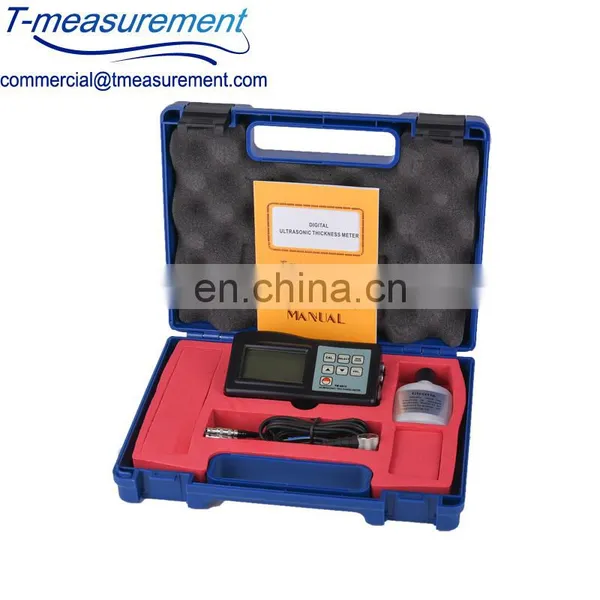

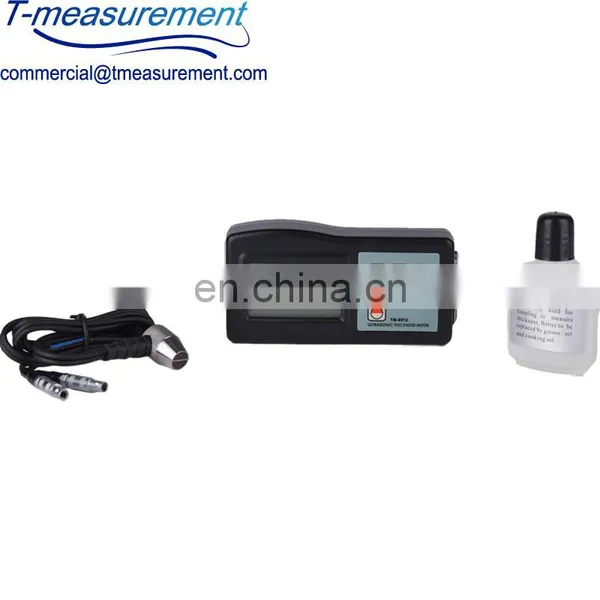

Standard delivery | Main unit | 1 |
5M Diameter 10 transducer | 1 | |
Instruction manual | 1 | |
Carrying case | B04 | |
Optional Accessories | 6M Diameter 6mm thin Material probe | Measuring range (steel) :1.0~50.0mm |
5M Diameter 12mm high Temperature probe | Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature) | |
Cable & Software for RS232C interface | Available |
