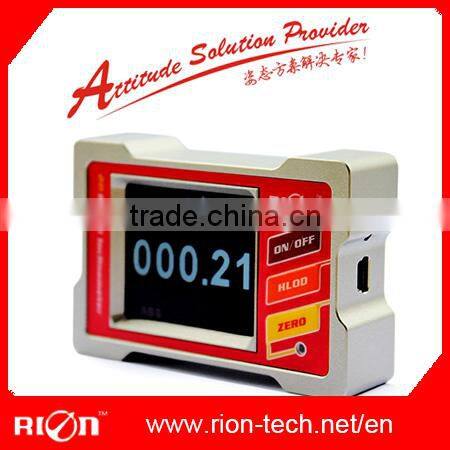

DMI810 High Precision Digital Level Electronic Spirit Level Protractor Spirit Level From Reliable Shenzhen Factory

1pcs / inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

Specifications

DMI810 High Precision Digital Level Electronic Spirit Level Protractor Spirit Level From Reliable Shenzhen Factory

General Description:

DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.The core of this product is using the micro-mechanical control principle...etc

Features:

• Accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Measuring range:±15°,+/-30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
•  Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
•  °/mm/m Dual units switch funciton
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)

Application :

• Building construction
• Automobile four wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

 Packing Photos :

Packing Size: L22*W12*H6mm

Packing Weight : 0.8~1KGS

Related or Similar Products :

Model : DMI410 Single axis Digital Inclinometer

Measuring range: +/-180deg (0-360deg)

Angle Measurement Accuracy : 0.05deg(Full Measuring range)

Angle Measurement Resolution : 0.01deg

Length Measurement range : +/-999.99 mm/m

Length Measurement Accuracy : 0.9mm/m (Full Measuring range)

Length Measurement Resolution: 0.17mm/m

Data Output Signal : Standard 5Pin USB Connector Virtual Series Port

Power Supply : Rechargeable Lithium Battery

Battery Working Time : 8 hours When Charging Full Power

Product Size : L83*W53*H19.2mm

Product Weight : 125g

Protection : IP54

Product Enclosure Material : Metal Aluminum

Products Cert. : FCC/CE/CCC

Packing Method : Each in a Wooden Box

Packing size : L18*W12*H6CM

Packing Weight : 1KGS

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc
