Taijia TUF-2000SW Ultrasonic Clamp on Flow Meter Types Fixed Ultrasonic Flowmeters
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Taijia TUF-2000SW Low Cost Ultrasonic Flow Meters Fixed Water Ultrasonic Flow Meter ClampNegotiableMOQ: 1 -
Taijia Portable Digital Inline Ultrasonic Flowmeter Non-full Pipe Doppler Flow MeterNegotiableMOQ: 1
-
Taijia Water Digital Portable FlowMeter Handheld Ultrasonic Flow Meter TUF 2000H Portable Ultrasonic FlowMeterNegotiableMOQ: 1
-
Taijia T3 Series Ultrasonic Bulk Water Meters Residential Ultrasonic Water Meter Battery Operated Ultrasonic Smart Water MetersNegotiableMOQ: 1
-
Taijia TDS Series TDS-100F1 Widely Measure Ratio Liquid Nitrogen Flow Meter+ultrasonic Flow MeterNegotiableMOQ: 1
Product Description
Specification
TUF-2000SW Fixed ultrasonic water flowmeters | ||||||
Principle | Transit-time ultrasonic flowmeter | Power Supply | DC8-36V or AC85-264V(Optional) | |||
Accuracy | ±1% | Power Consumption | 1.5W | |||
Display | 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish | Dimension | 132*150*85mm(convertor) | |||
Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed | Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS. | |||
Pipe diameter | 25-6000mm | Special Cable | Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m | |||
Straight pipe | Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump. | Pipe material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed | |||
Sensor Option
Sensor Options for wall mounted ultrasonic flow meter

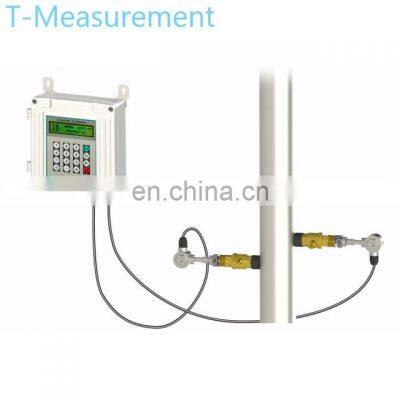

Insertion sensor

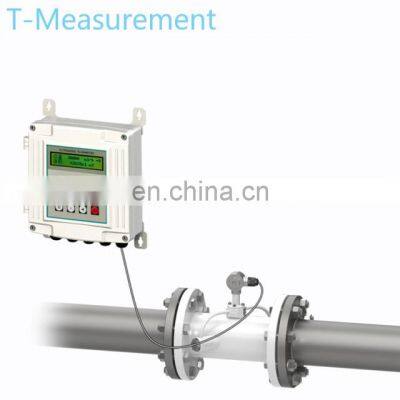

Thread connections sensor
Clamp on sensor
Sensor Types | Spec. | Model | Measurement Range | Temperature |
Clamp on | Small size | TS-2 | DN25-DN100 | -30-90℃ |
Medium Size | TM-1 | DN50-DN700 | -30-90℃ | |
Large size | TL-1 | DN300-DN6000 | -30-90℃ | |
High temp clam on | Small size | TS-2-HT | DN25-DN100 | -30-160℃ |
Medium Size | TM-1-HT | DN50-DN700 | -30-160℃ | |
Large Size | TL-1-HT | DN300-DN6000 | -30-160℃ | |
Insertion | Standard | TC-1 | DN80-DN6000 | -30-160℃ |
Lengthen | TC-2 | DN80-DN6000 | -30-160℃ | |
πType(SUS304 thread connection) | G1 | DN15-DN32 | -30-160℃ | |
Pipe | Standard(Carbon steel thread connection) | G2 | DN40-DN1000 | -30-160℃ |
Features
Dimensions
Wall mounted type ultrasonic flow meter
Title goes here.
TUF2000B wall mounted Fixed ultrasonic flow meter can be added SD card the price will be added
Installation method for TUF-2000SW Fixed stationary type ultrasonic flow meter
TUF2000SW wall mounted ultrasonic flowmeter can work with temperature sensor CT10 , used as ultrasonic engergy meter, and it also can work with clamp on sensor and thread connection sensor & insertion sensor.
Packing & Delivery
Accessories
1.5m×2 Transducer Cable for sensor
2. Clamp Fixture
3. Spare Connectors
Company Profie
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, hand held ultrasonic flow meter, portable ultrasonic flow meter, wall mounted ultrasonic flow meter, fixed ultrasonic flow meter; electromagnetic flow meter, insertion flow meter, vortex flow meter, gas flow meter, rotameter, turbine flow meter, thermal mass flow meter. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.
