Taijia Intergrated Ultrasonic Flowmeter Water Flow Meter Handheld Portable Digital Ultrasonic Flow Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Taijia TDS 100m Modular Portable Flowmeter Clampon Ultrasonic Cheap Ultrasonic Flow Meter Pipe Type Ultrasonic FlowmeterNegotiableMOQ: 1 -
Taijia Tuf 2000m Ultrasonic Water Meter Flowmeter Ultrasonic Flow Meter Small Ultrasonic Clamp Flow Meter Water FlowmeterNegotiableMOQ: 1
-
Taijia Ultrasonic Flow Meter Flowmeter Sensor Flange Ultrasonic FlowmeterNegotiableMOQ: 1
-
Taijia Single Channel Small Ultrasonic Water Meter Sandwich Insertion Type Digital Ultrasonic Water Flow Meter WaterNegotiableMOQ: 1
-
Taijia Non Contact Wall Mounted Flow Meters TUF-2000b Wall Mounted Flowmeters Fixed Ultrasonic Flow MeterNegotiableMOQ: 1
Product Description

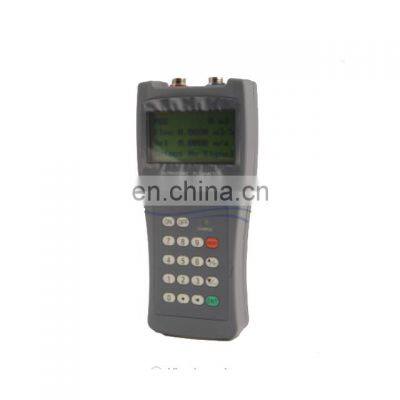

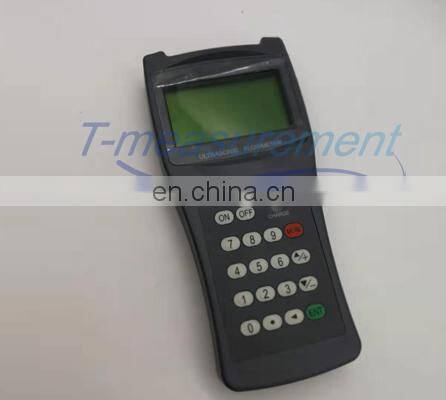

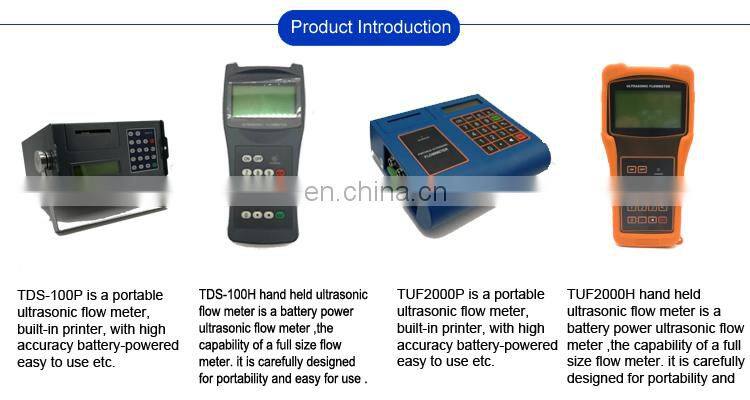

Features of TDS-100H Hand Held Ultrasonic Flow Meter
1.0.5% of linearity
2.0.2% of repeatability
3.Bilingual interface in chinese and English
4.4 flow totalizers
5.Patent balanced lower-voltage multi-pulse ultrasonic igniting
6.Work properly near transverters
7.100Pico-second resolution of time measurement
8.built-in date totalizers
9.built-in data-logger
10.0.5 second totalizing period
Features of TDS-100P is a Portable Ultrasonic Flow Meter
1. Better than 1% accuracy
2. 0.2% of repeatability
3.2x10 English letters LCD display
4.Operate with clamp on transducers
5.Pipe diameters from 15mm to 6000mm
6.RS485 interface
7.Built-in thermal printer
8.Ni-MH battery operation of over 24 h
9. 220VAC or 110VAC power supply
2. 0.2% of repeatability
3.2x10 English letters LCD display
4.Operate with clamp on transducers
5.Pipe diameters from 15mm to 6000mm
6.RS485 interface
7.Built-in thermal printer
8.Ni-MH battery operation of over 24 h
9. 220VAC or 110VAC power supply

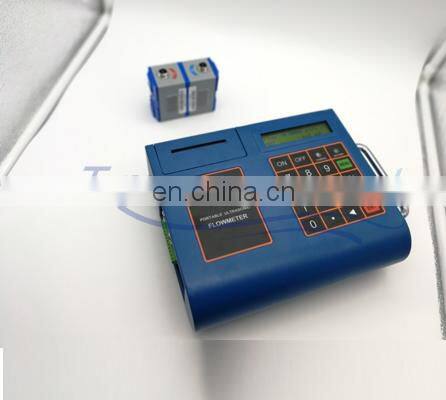

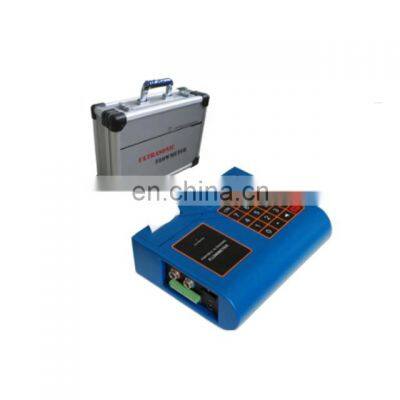

Features of TUF2000P Portable Ultrasonic Flow meter
1.Up to +/-1% High accutacy
2.Non-contacting measuring
3.Non-intrusive, clamp-on transducer
4.DN 15mm to DN6000mm Wide measuring range
5.English menu English display
6.Built-in rechargeable Ni-MH rechargeable battery
7.Built in thermal printer

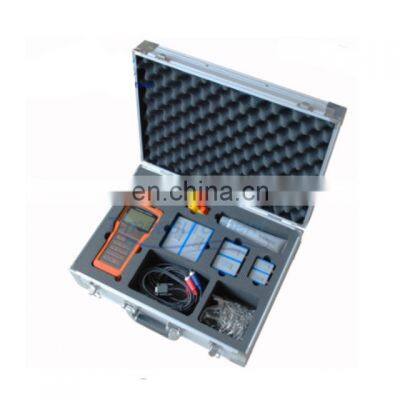

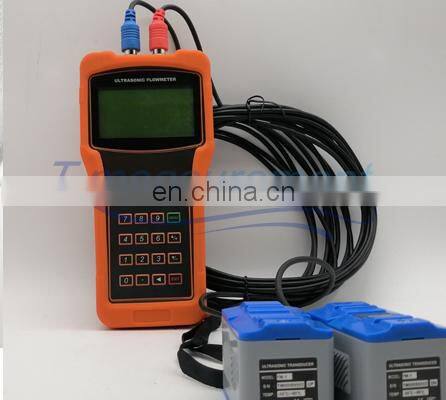

Features of TUF2000H Hand Held Ultrasonic Flow Meter
1.0.2% of repeatability
2. Internal data logger
3. 90~230VAC power supply
4. Better than 1% accuracy
5.4x6 English letters LCD display
6. Operate with clamp on transducers
7.Ni-MH battery operation of over 12 h
8.Pipe diameters from 15mm to 6000mm
9.RS 232 interface or 1-channel isolated OCT output
2. Internal data logger
3. 90~230VAC power supply
4. Better than 1% accuracy
5.4x6 English letters LCD display
6. Operate with clamp on transducers
7.Ni-MH battery operation of over 12 h
8.Pipe diameters from 15mm to 6000mm
9.RS 232 interface or 1-channel isolated OCT output
Specification
Model Number | TDS-100H | TDS-100P | TUF2000H | TUF2000P |
Heat Meter | No | No | No | Can added PT100 temperature sensor and used as Ultrasonic heat meter |
Printer & SD card option | No(can be added data logger) | Choose either Printer or Sd card | No(can be added data logger) | Can be added printer & SD card the same time |
Display | LCD with backlight. 2x20 letters. | LCD with backlight. 2x20 letters.4x4+2 keyboard | 4*16 English letters | 2x20 character LCD with backlight, support the language of Chinese, English and Italian |
Power | 90~230VAC Ni-MH battery operation of over 12 h | 220VAC (standard) the battery can working for more than 20 hours | 90~230VAC Ni-MH battery operation of over 12 h | 220VAC (standard) the battery can working for more than 20 hours |
Output | RS232C | RS485 | RS 232 | RS485 |
Environment Humidity | 85% RH | 85% RH | 85%RH | 85%RH |
Accuracy | Better than ±1.0 % | Better than ±1.0 % | Better than ±1.0 % | Better than ±1.0 % |
Pipe Size | DN15mm~6000mm | DN15mm～6000mm | DN 20mm-6000mm | DN 15-6000mm |
Measurement Principle | Transit-time measurement principle | Transit-time measurement principle | Transit-time ultrasonic flow meter | Transit-time ultrasonic flow meter |
Pipe Material | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum | Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum |
Power Consumption | Less than 1.5W | 2W | - | 1.5 W |
Environment Temperature | 0-70℃ If request high temperature sensor (0-160℃)welcome to consult us | 0-70℃ If request high temperature sensor (0-160℃)welcome to consult us | 0-70℃ If request high temperature sensor (0-160℃)welcome to consult us | 0-70℃ If request high temperature sensor (0-160℃)welcome to consult us |
Repeatability | 0.20% | 0.20% | 0.20% | 0.20% |
Protection Class | IP65 | IP65 | IP65 | IP65 |
Transducer Options
Sensor Type | Pipe size (mm) | Pipe size (inch) | Temperature | Protection class |
TS-2-type | DN15~100 | ( 1/2~4" ) | 32F~320F ( 0℃~160℃ ) | IP65 |
TM-1-type | DN50~700 | (2~28" ) | ||
TL-1-type | DN300~6000 | ( 12~240" ) | ||
HS-type | DN15~100 | ( 1/2~4" ) | ||
HM-type | DN50~700 | ( 2~28" ) |
