Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Taijia High Temperature Industrial Flow Meter Ultrasonic Open Channel Ultrasonic Flow Meter RS485/ModBus Agreement
Taijia High Temperature Industrial Flow Meter Ultrasonic Open Channel Ultrasonic Flow Meter RS485/ModBus Agreement
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T-Measurement TEM-V3 Automated Pull-Off Adhesion Tester Portable Adhesion Testers Pull off Adhesion TestersNegotiableMOQ: 1 -
High Precision Adhesion Tester /adhesion Testing Machine/pull off TesterNegotiableMOQ: 1
-
Concrete Pull Off Pull Off TesterNegotiableMOQ: 1
-
Digital Paints and Varnishes Pull off Tester for AdhesionNegotiableMOQ: 1
-
T-Measurement TEM-620XH Rebar Locator Pachometer Rebar Detector Rebar Position ScannerNegotiableMOQ: 1
Product Description

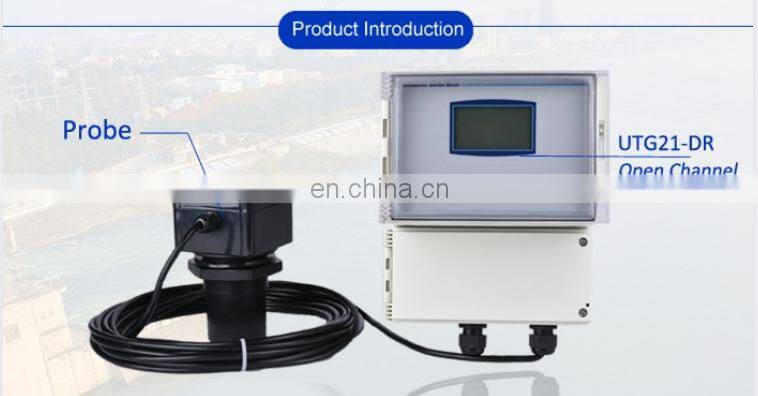

UTG21-DR Open Channel Flow Meter.

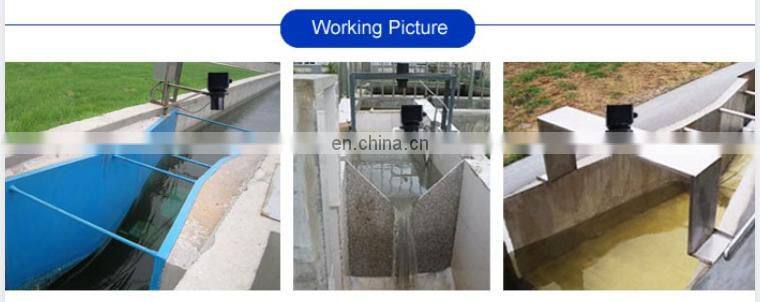

UTG21-DR Open channel flow meter used to the measurement of flow within open, partially-filled and free flow channels and the open channel flow meter must be used with the measuring weirs and is mainly used to measure sewage flow within the channel under an open, partially filled and free flow conditions.
Specification
Items | Integral | Integral | |||
Instantflow | 0.1L/s~120000 m3/s | ||||
Level | 0.35m~3.000m | ||||
Measuring accuracy | Triangular weir 1 ~ 5%/ rectangular weir 3 ~ 5% / Parshall flume 2 ~ 3% | ||||
Level | ±0.3% FS (standard condition ) | ||||
Cumulative flow | 4000000000m3 | ||||
Dead band | 0.35m | ||||
Pressure | Below 3 barometric pressure / 2000m below sea level | ||||
Meter display | Displays instantaneous flow and cumulative flow, liquid level, echo waveforms and historical curves | ||||
Power supply | DC18~36V / 100mA or AC85~265V / 3W | ||||
Flow recorder | Can query the cumulative flow of any time during the last 8 years | ||||
Output | Analog current | 12bit, with load of less than 500 Ohm | |||
Digital signal | RS485/ModBus agreement | ||||
Switching value | Switching values of 2~4 circuits | ||||
Temperature | Environment | -20℃ ~ +60℃ | |||
Process | -20℃ ~+90℃ (specify in order where a temperature of over +60℃ is a necessity) | ||||
Interface | Electric | M20×1.5mm | PG11 waterproof connector | ||
Process | G2” | ||||
Materials | Transmitter | Aluminum alloy | ABS | ||
Probe | ABS / ETFE / PTFE | ||||
Waterproof Level | IP67 | IP65 | |||
Explosion protection class | EX d[ia]iaⅡBT4* | N/A | |||
Related products
Company Profile
Dalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
FAQ
1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.
2. MOQ:1set
3. We accept T/T. WesternUnion.PayPal & Secure Payment
4. We offer 18 Month's Warranty on all product
5. Service express company:TNT/DHL/FedEX.
