Home > Instruments & Meters > Test Instrument > Test Machine > GW-50 Automatic Rebar Bending Test Machine
GW-50 Automatic Rebar Bending Test Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300kN Servo-Hydraulic Universal Testing MachineNegotiableMOQ: 1 -
New Design Digital Display UTM 1000KN Hydraulic Universal Testing Machine Hot SaleNegotiableMOQ: 1
-
High Quality Universal Material Testing Machine Hydraulic Universal Testing Machine Factory PriceNegotiableMOQ: 1
-
High Quality Digital Display UTM 1000KN Hydraulic Universal Testing MachinesNegotiableMOQ: 1
-
Soil Testing California Bearing Ratio (CBR) TesterNegotiableMOQ: 1

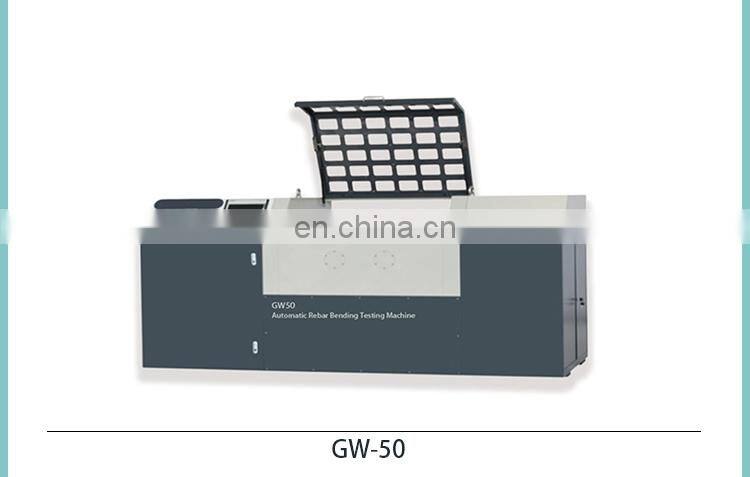

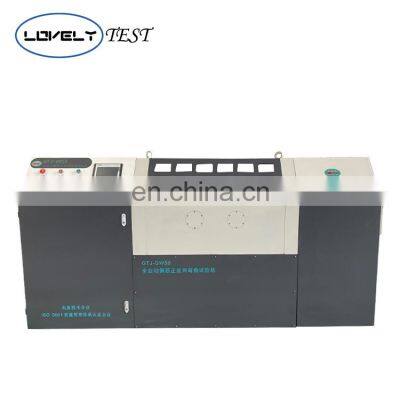

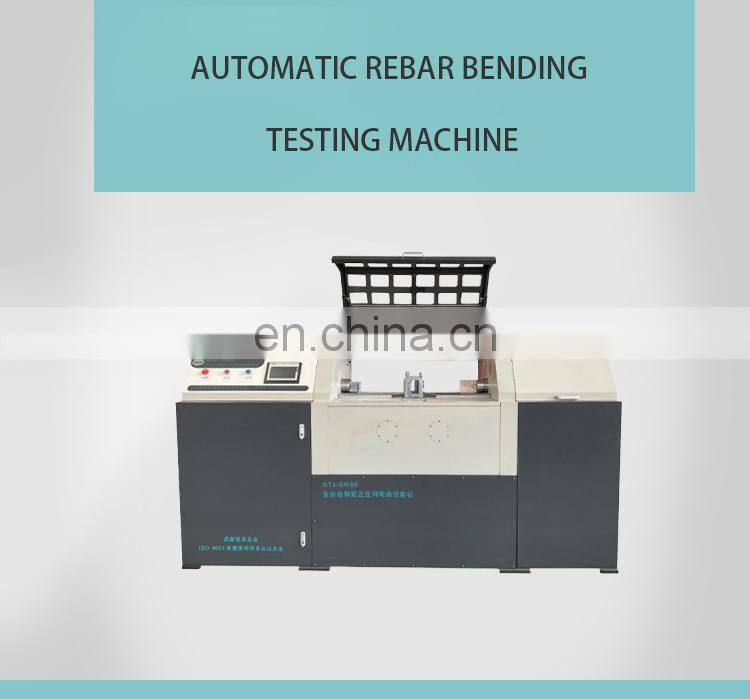

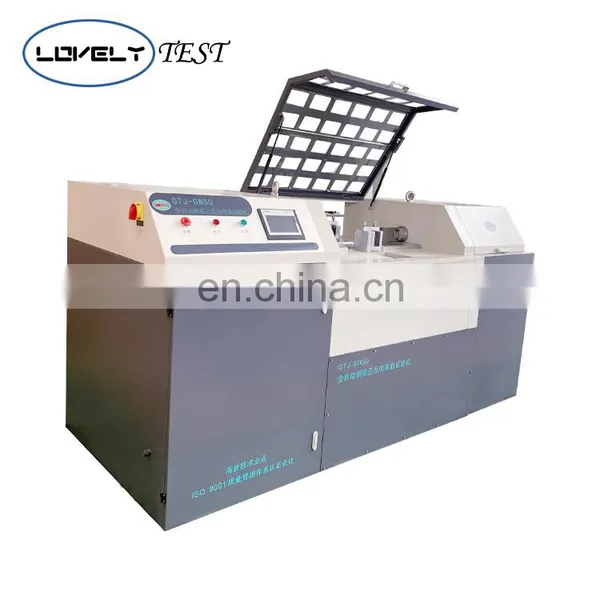

GW50 Automatic Rebar Positive And Negative Bending Testing Machine
Usage Overview
GW50 Automatic Rebar Bending Testing Machine for Steel Bars is mainly used in metallurgical construction quality inspection department, as well as in raw materials and weld joint bending performance testing of steel bar. It is used in steel enterprises, scientific research institutes, quality inspection, construction engineering, railway,
transportation, water transportation and colleges and universities for material bending performance testing and common equipment of research. This equipment is used for the positive and negative bending tests of seismic steel bars such as the national standard and the British standard.
transportation, water transportation and colleges and universities for material bending performance testing and common equipment of research. This equipment is used for the positive and negative bending tests of seismic steel bars such as the national standard and the British standard.
Product Description
Features
1. Hydraulic station: The hydraulic station is mainly composed of fuel tank, oil pump and valve. The main hydraulic components are all domestic famous brands, which fully guarantee the reliability and stability of the hydraulic system.2. Rack: The frame part of the frame is welded by angle steel, channel steel and other profiles. The structure is reasonable and conforms to the operator's habits. The panel and the like are made of sheet metal structure, which is convenient to disassemble and assemble, and the surface is sprayed and processed, and the appearance is neat and beautiful.

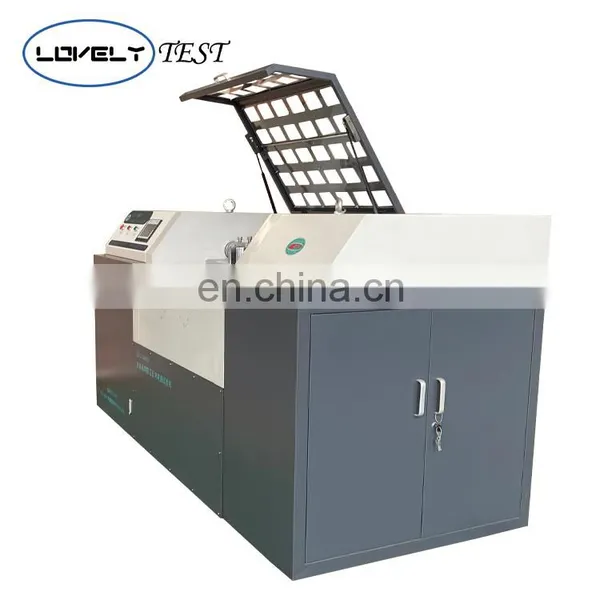

3. Protective cover: This part is a very important safety protection measure for the equipment to prevent the steel from flying out during the test and injuring the operator. The part is
mainly formed by sheet metal processing, and is hinged to the main frame for easy opening and closing. The observation hole is opened on the sheet metal, and the operator can clearly observe the progress of the test.

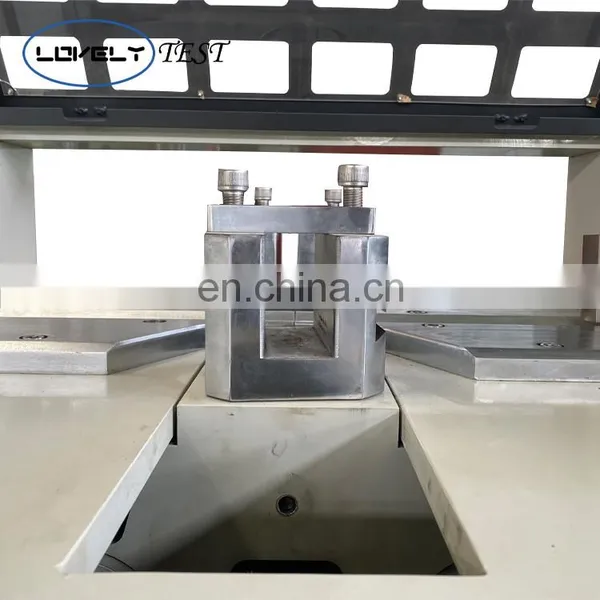

4. Bending core and bending core seat: The bending core seat is mounted on the piston rod of the oil cylinder, and the bending core is fixed on the curved core seat. The curved core is made of high-strength material and after heat treatment, it is durable and not easily damaged.
5. Hydraulic cylinder and control valve: The hydraulic cylinder is specially made, small in size and large in output. It provides sufficient force for bending steel bars, reliability is guaranteed, and operation is convenient.
6. Electrical control system: The main electrical components are produced by well- known domestic enterprises, which ensures the reliability and stability of the equipment.
7. After the angle is set, the experiment is completed in one. touch operation (no need to adjust the sample for reverse bending after the positive bend).
8. The program is continuously bent to the specified angle to stop (do not need to manually hold the operation mode).
9. The equipment is equipped with angle measuring and control devices to ensure that the test meets the requirements of national standard and British standard.
3. Protective cover: This part is a very important safety protection measure for the equipment to prevent the steel from flying out during the test and injuring the operator. The part is
mainly formed by sheet metal processing, and is hinged to the main frame for easy opening and closing. The observation hole is opened on the sheet metal, and the operator can clearly observe the progress of the test.
4. Bending core and bending core seat: The bending core seat is mounted on the piston rod of the oil cylinder, and the bending core is fixed on the curved core seat. The curved core is made of high-strength material and after heat treatment, it is durable and not easily damaged.
5. Hydraulic cylinder and control valve: The hydraulic cylinder is specially made, small in size and large in output. It provides sufficient force for bending steel bars, reliability is guaranteed, and operation is convenient.
6. Electrical control system: The main electrical components are produced by well- known domestic enterprises, which ensures the reliability and stability of the equipment.
7. After the angle is set, the experiment is completed in one. touch operation (no need to adjust the sample for reverse bending after the positive bend).
8. The program is continuously bent to the specified angle to stop (do not need to manually hold the operation mode).
9. The equipment is equipped with angle measuring and control devices to ensure that the test meets the requirements of national standard and British standard.
Specification
Product name | GW50 Automatic Rebar Bending Testing Machine | |
Drive mode | Hydraulic drive | |
Maximum bending force | 500KN | |
Sample diameter range | Φ6-50mm | |
Positive bending angle | 180 degrees; can also be set freely | |
Reverse bending angle | 90 degrees+20 degrees;can also be set freely | |
Angle tolerance | ±0.5° | |
Support span | 80mm-620mm | |
Master cylinder working stroke | 550mm | |
Secondary cylinder working stroke | 350mm | |
Core diameter specifications | According to actual needs(see the bending core specification configuration table for details | |
Power | 4KW, 380V, 50Hz, three-phase+neutral | |
Weight | 3200kg | |
Bending speed | Meet the standard no more than 20°/s | |
Conducted in batch(serving with 28 or less, serving with 28 or more, serving with 32~40, serving with 2, serving with 12) | ||
Set the sample specifications, PLC control automatically adjusts the span, and automatically calculates the indenter diameter | ||
The bending machine meets the long-term stable working condition | ||
Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
