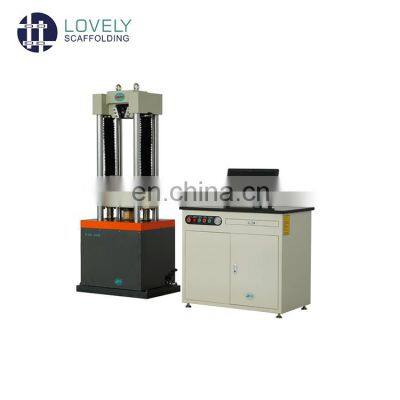

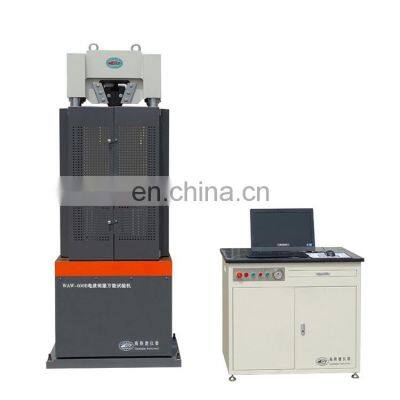

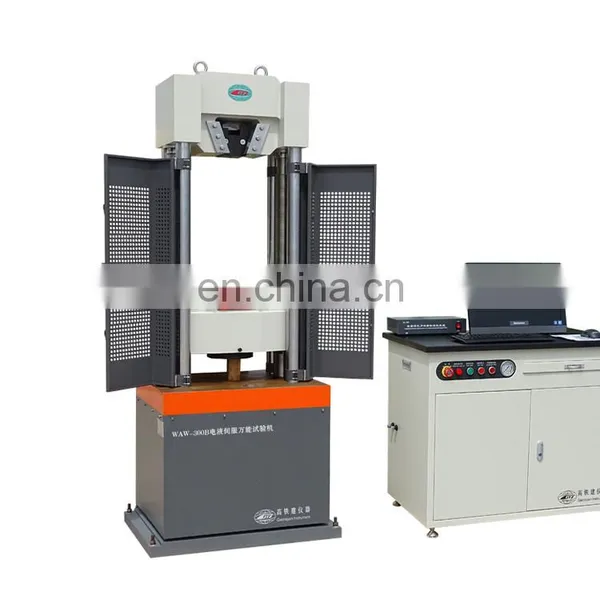

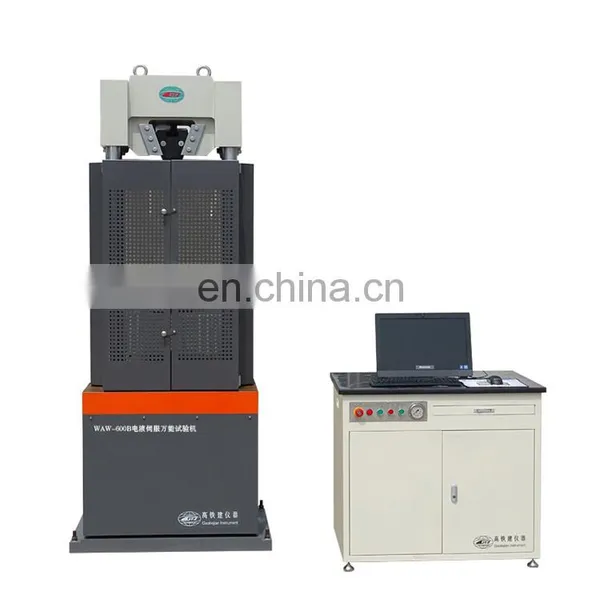

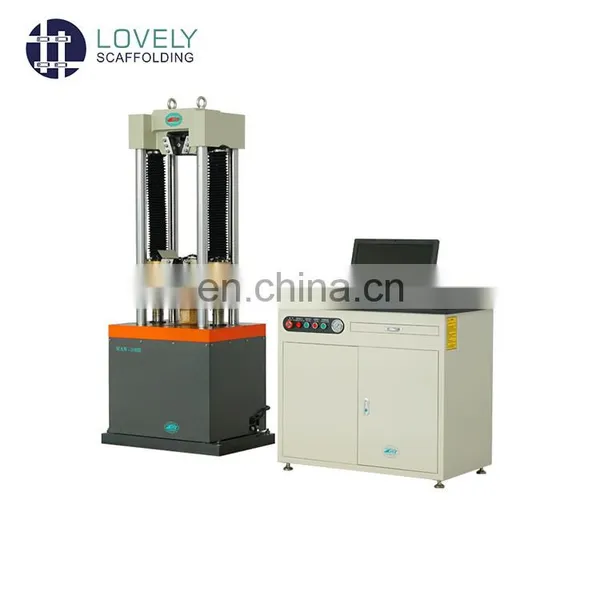

WAW-B Universal Testing Machine
Usage Overview

The series of test machine are loaded hydraulically. Electro-hydraulic servo control technology is used to test the tensile, compressive, bending and shearing of metal and non-metal materials. It displays various closed-loop control methods such as curves, forces, deformations and displacements. It can be switched when testing. The data can be automatically recorded.
Product Description
1. The oil source control part adopts Siemens motor and high precision digital valve;
2.The space adjustment machanism adopts the Kawashima reducer with low noise;
3.Using semi-closed hydraulic jaws, high strength;
4.Vertical control cabinet, touch industrial computer, convenient and practical, saving space.
5.The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress retention and strain retention;
6.Host four-column double screw test space structure;
7.High-speed Ethernet communication interface communicates with PC;
8.Standard database management test data;
9.High-strength, high-toughness and beautiful protective net for safaty protection.
Specification

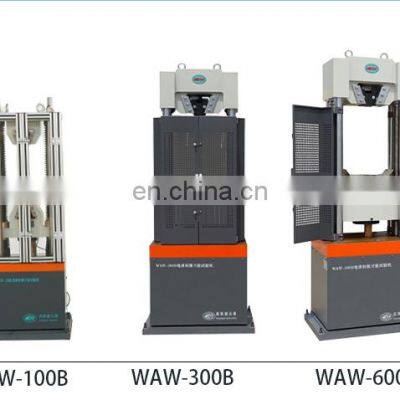

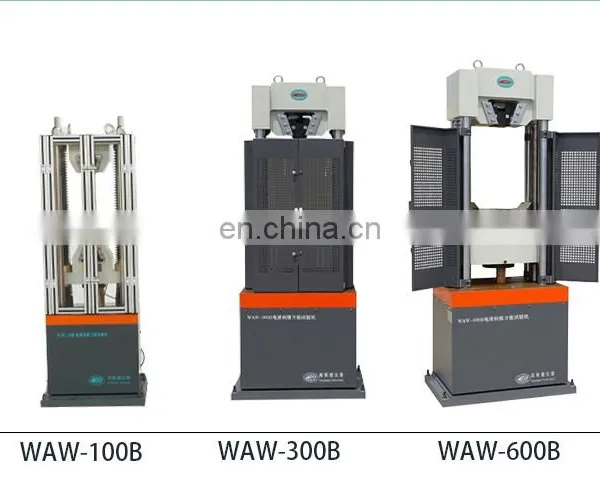

Model
WAW-100B
WAW-300B
WAW-600B
WAW-1000B
Max. Test Force(KN)
100
300
600
1000
Tensile Space(mm)
700
700
700
700
Compression Space(mm)
600
600
600
600
Column Number
6
6
6
6
Compression Platen(mm)
Φ148
Φ148
Φ198
Φ225
Round Sample
Test Range(mm)
Φ6~20
Φ10~32
Φ13~40
Φ13~40
Plat Sample Test Range(mm)
0~20
0~10
0~13
0~13
Compression Plant Size(mm)
148
148
198
225
Piston Stroke(mm)
200
200
200
200
Diameter of bending roller
(mm)
50/50
50/50
50/50
50/50
Bending fulcrum span(mm)
50-300
50-300
50-300
50-300
Effective Test Range
1%-100%FS
Machine Grade
Level 1/ Level 0.5
Relative indication error
±1%
Test Force Resolution
1/300000
Stress Rate Control Range
1MPa/s-50MPa/s
Stress Rate Control Accuracy
1/300000
Deformation Resolution
according to the number of selected encoder lines, the resolution for 3600 lines is 0.007mm
Strain Rate Control Range
0.00025/s-0.0025/s
Strain Rate Control Accuracy
±2%
Displacement Resolution
according to the number of selected encoder lines, the resolution for 3600 lines is 0.007mm
Displacement Rate Control Range
0.1-100
0.1-150
0.1-180
0.1-220
Displacement Rate Control Accuracy
±2%
Stress/Strain/Displacement Control Range
1%-100%FS
Stress/Strain/Displacement Control Rate
<10%FS: ±2%;>10%FS: ±1%
Oil Control Cabinet（mm）
600*740*1560
Host Size(mm)
620*520*1723
810*560*1910
880*570*2050
940*640*2250
Motor Power（kW）
2.2
2.2
2.2
2.2
Total Weight（kg）
1650
1770
2150
2950
