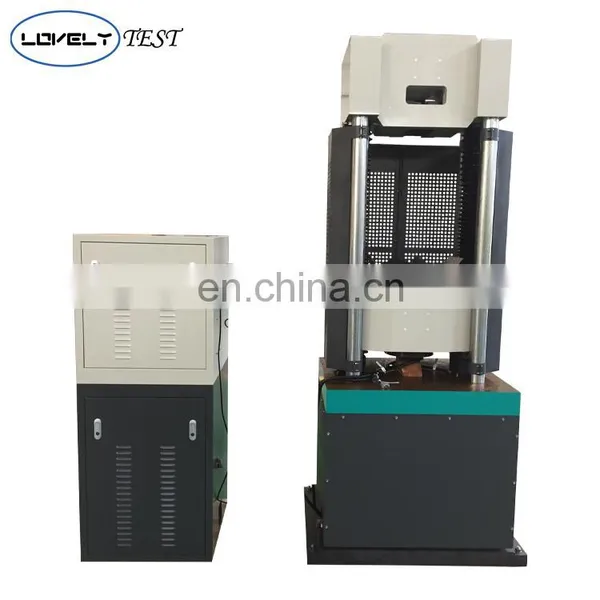

High Quality Digital Display UTM 1000KN Hydraulic Universal Testing Machines
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Soil Testing California Bearing Ratio (CBR) TesterNegotiableMOQ: 1 -
High Quality Los Angeles Machine LHMH-IINegotiableMOQ: 1
-
300kN Servo-Hydraulic Universal Testing MachineNegotiableMOQ: 1
-
100kn Electro-Hydraulic Universal Material Testing MachineNegotiableMOQ: 1
-
100 Tons Computer Control Electronic Universal Tester WDW-100NegotiableMOQ: 1
Product Usage and Features
WE-B Electro-Hydraulic Universal Material Testing Machine
The series of test machines are loaded hydraulically. The manual control technology is used to test the tensile, compressive, bending and shearing of metal and non-metal materials. It displays various closed-loop control modes such as curves, forces, deformations and displacements. Switch freely during the test. Automatically store stored data. Can meet GB, 1SO, ASTM, DIN, JIS and other standards.
1. |
Siemens motors, stable torque and speed. |
2. |
Built-in radial plunger pump, stable output and low noise. |
3. |
Automatic servo measurement and control system, the data is accurate and reliable. |
Parameters
Model |
WE-100B |
WE-300B |
WE-600B |
WE-1000B |
|||
Max. Test Force |
100 KN |
300 KN |
600 KN |
1000 KN |
|||
Test accuracy |
Level 1 |
||||||
Test force collection method |
Oil pressure sensor |
||||||

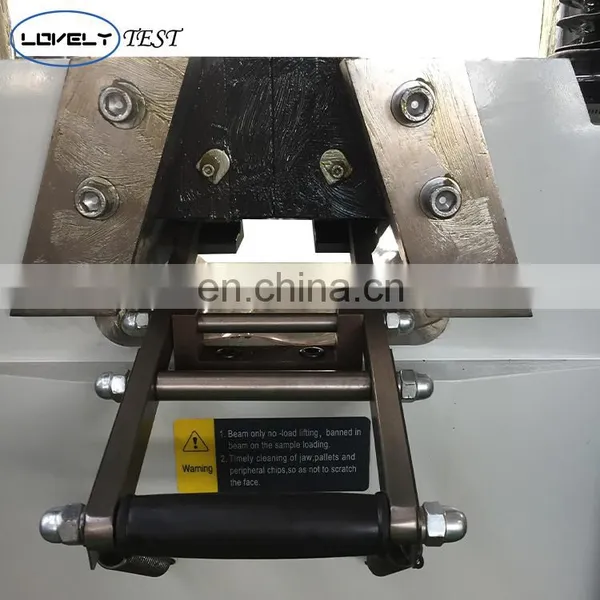

Clamping method |
Hydraulic |
||||||
Piston Strock |
200 mm |
||||||
Compression test space |
600 mm |
||||||
Tensile test space |
700 mm |
||||||
Power |
2.2 Kw |
||||||
Compression platen size(mm) |
Ф148 |
Ф148 |
Ф198 |
Ф225 |
|||
Round sample test range (mm) |
Ф6~12; Ф12~20 |
Ф10~30 |
Ф12~32 |
Ф14~40 |
|||
Flat sample test range (mm) |
0~10 |
0~20 |
0~30 |
0·40 |
|||
Host size(mm) |
620*520*1723 |
810*560*1910 |
880*570*2050 |
940*640*2250 |
|||
Host column and screw |
6 |
||||||
Control cabinet size |
610*590*1370 mm |
||||||
Control cabinet weight |
150 KGs |
||||||
