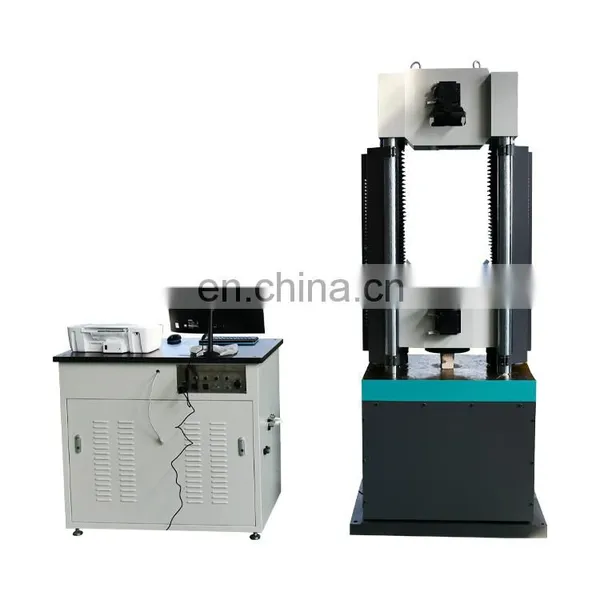

1000kN Servo-Hydraulic Universal Testing Machine

1000kN Servo-Hydraulic Universal Testing Machine thumbnail-1
1000kN Servo-Hydraulic Universal Testing Machine thumbnail-2
1000kN Servo-Hydraulic Universal Testing Machine thumbnail-3
1000kN Servo-Hydraulic Universal Testing Machine thumbnail-4
1000kN Servo-Hydraulic Universal Testing Machine thumbnail-5
1000kN Servo-Hydraulic Universal Testing Machine photo-1
1000kN Servo-Hydraulic Universal Testing Machine photo-2

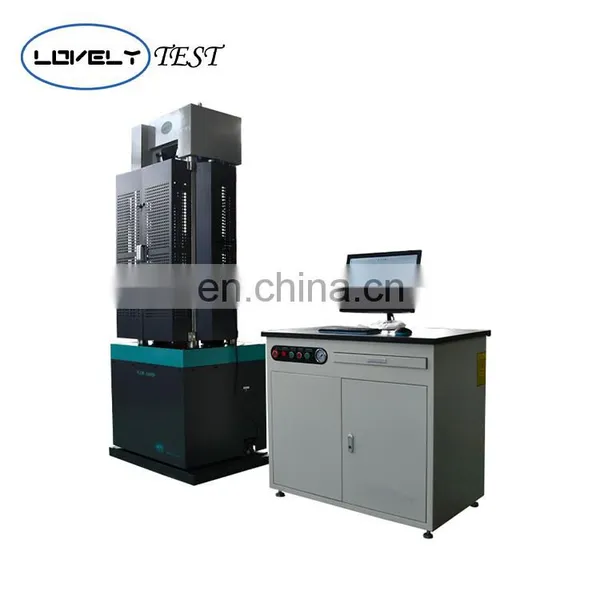

1000kN Servo-Hydraulic Universal Testing Machine photo-3

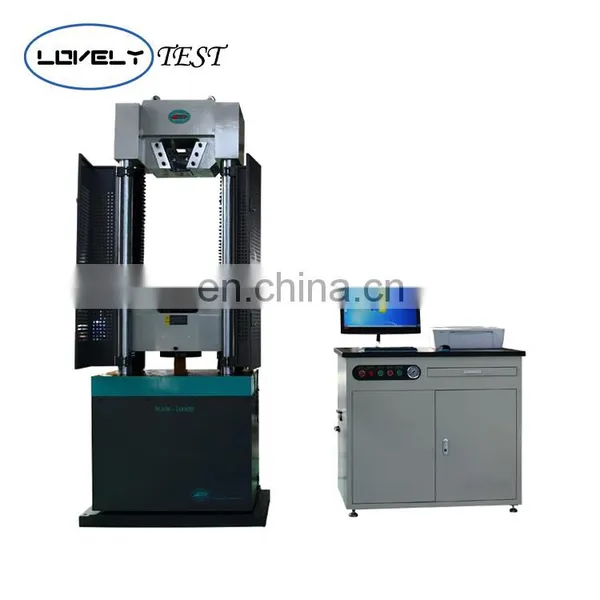

1000kN Servo-Hydraulic Universal Testing Machine photo-4

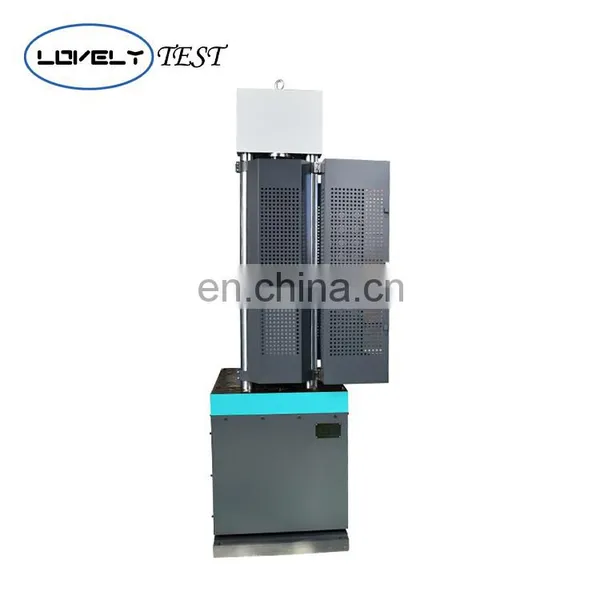

1000kN Servo-Hydraulic Universal Testing Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Cangzhou Lovely Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
WAW-B Micro Electromechanical Liquid Servo Universal Test Machine
Usage Overview

It can be used for tensile, compression, bending and shear tests of various metal materials. It can also be used for compression tests of plastic, concrete, cement and other non-metallic materials. It can be added with simple accessories to complete various
performance tests of belt chains, wire ropes, welding rods, tiles and components. This machine adopts the oil cylinder, low height, light weight, especially suitable for engineering construction department.
Product Description
This series of testing machines are loaded by hydraulically. Electro-hydraulic servo control technology is used to test the tensile, compressive, bending and shearing of metal and non-metal materials. It displays various closed-loop control methods such as curves, forces, deformations and displacements, can be switched at will in the test. Automatically store stored data. It can meet GB, IS0, ASTM, DIN, JIS and other standards.
Specification
Model
WAW-100B
WAW-300B
WAW-600B
WAW-1000B
Max. Test Force(KN)
100
300
600
1000
Tensile Space(mm)
700
700
700
700
Compression Space(mm)
600
600
600
600
Column Number
6
6
6
6
Compression Platen(mm)
Φ148
Φ148
Φ198
Φ225
Round Sample
Test Range(mm)
Φ6~20
Φ10~32
Φ13~40
Φ13~40
Plat Sample Test Range(mm)
0~20
0~10
0~13
0~13
Compression Plant Size(mm)
148
148
198
225
Piston Stroke(mm)
200
200
200
200
Diameter of bending roller
(mm)
50/50
50/50
50/50
50/50
Bending fulcrum span(mm)
50-300
50-300
50-300
50-300
Effective Test Range
1%-100%FS
Machine Grade
Level 1/ Level 0.5
Relative indication error
±1%
Test Force Resolution
1/300000
Stress Rate Control Range
1MPa/s-50MPa/s
Stress Rate Control Accuracy
1/300000
Deformation Resolution
according to the number of selected encoder lines, the resolution for 3600 lines is 0.007mm
Strain Rate Control Range
0.00025/s-0.0025/s
Strain Rate Control Accuracy
±2%
Displacement Resolution
according to the number of selected encoder lines, the resolution for 3600 lines is 0.007mm
Displacement Rate Control Range
0.1-100
0.1-150
0.1-180
0.1-220
Displacement Rate Control Accuracy
±2%
Stress/Strain/Displacement Control Range
1%-100%FS
Stress/Strain/Displacement Control Rate
<10%FS: ±2%;>10%FS: ±1%
Oil Control Cabinet（mm）
600*740*1560
Host Size(mm)
620*520*1723
810*560*1910
880*570*2050
940*640*2250
Motor Power（kW）
2.2
2.2
2.2
2.2
Total Weight（kg）
1650
1770
2150
2950
1.
The oil source control part adopts Siemens motor and high precision digital valve.
2.
The space adjustment mechanism adopts the Kawashima reducer with low noise.
3.
Using semi-closed hydraulic jaws, high strength.
4.
Vertical control cabinet, touch industrial computer, convenient and practical, saving space.
5.
The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress
retention and strain retention.
6.
Host four-column double screw test space structure.
7.
High-speed Ethernet communication interface communicates with PC.
8.
Standard database management test data.
9.
High-strength, high-toughness and beautiful protective net for safety protection.
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.

After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling

Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.

Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.

Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.

Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.

Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
