Home > Products > NDT Instrument > Integrated Steel rebar scanner locator concrete cover thickness tester
Integrated Steel rebar scanner locator concrete cover thickness tester
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Ultrasonic Sclerometer hammer Concrete Test Hammer Rebound Test Esclerometro
-
Wholesale Ultrasonic Thickness Gauges Thickness Measuring Instrument for sale
-
2701 nuclear-free Asphalt Electrical density gauge price (EDG)
-
Digital Sclerometer Hardness Tester/Concrete Test Hammer
-
Sclerometer for concrete or rocks
-
Efficient sclerometer concrete price/Digital Sclerometer for Top Efficiency
Product Description
Product Usage and Features

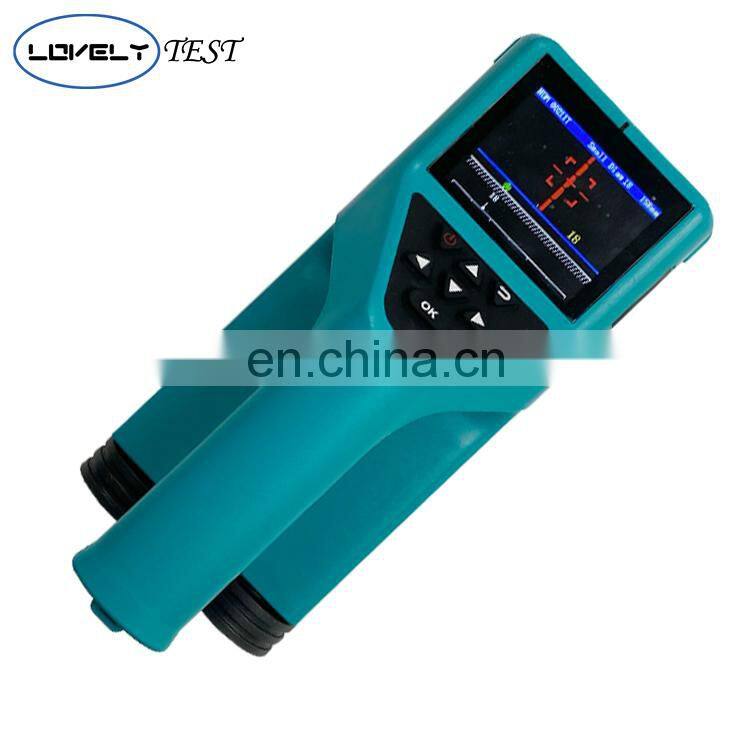

R800 Integrated Rebar Detector Concrete cover meter
The integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface,detect the thickness of the steel protective layer and the diameter of the rebar. In addition, it can also magnetize the inside of the concrete structure. The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.
1. | Integrated design, small in size and easy to carry. |
2. | Thickness detection mode is intuitive, showing thickness and steel spacing at the same time. |
3. | Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency. |
4. | The waveform scan mode also shows the thickness and spacing of the rebar protective layer. |
5. | 2.8 inch high resolution color liquid crystal screen. |
6. | Large TF card storage capacity, intuitive and convenient transmission. |
7. | PC professional data analysis software, data processing and report generation can be easily completed. |
Technical Parameters
Model | GTJ-R800 |
Rebar dia. setting range | 6mm~50mm |
Small range | 1mm~90mm |
Large range | 1mm~210mm |
Max. allowable errors of the Concrete Cover Thickness | 1-80mm (±1mm) |
81~120mm (±2mm) | |
121~210mm (±4mm) | |
Scope of dia. estimation | φ6mm~φ32mm |
Profile measurement function | Support |
Mesh measurement function | Support |
Waveform measurement function | Support |
probe self-calibration | Support |
Max. errors of Diameter indication | ±1 specification |
Host parameters | Screen size: 2.8 inch Resolution: 240*320 |
Volume: 220*93*110mm Weight:0.6KG | |
Data transmission mode | TF card; wireless cloud transmission (potional) |
Power suppy | Lithium battery |
Storage capacity | 2000 Components *1000 Measuring points |
Working environment | Temperature: -10℃ ~ +40℃ Humidity： 90%RH |
Detailed Images
Small in Size
Color Screen
High Resolution
Various Measurement
Profile, Mesh and Waveform
Probe Self-calibration

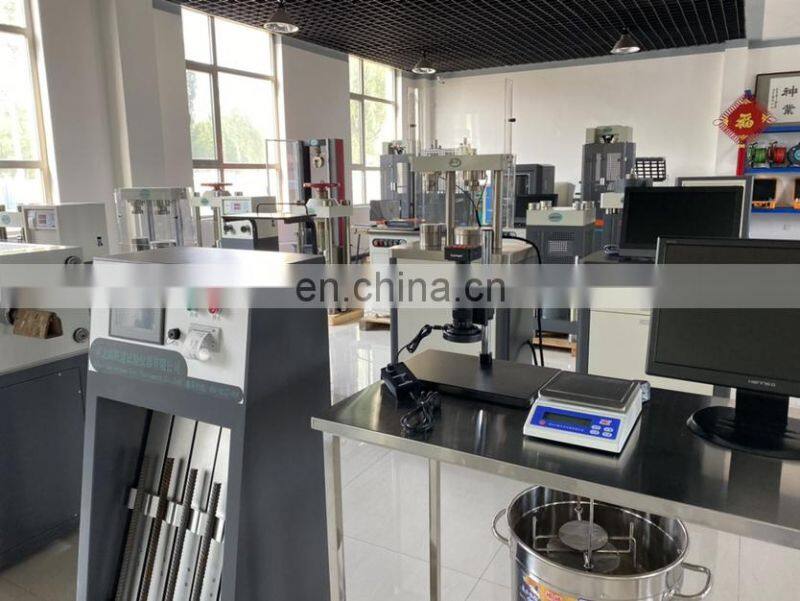

Company Introduction
Cangzhou Lovely Technology Co.,Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Packing & Delivery
After Sales Service
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
