Ultrasonic Sclerometer hammer Concrete Test Hammer Rebound Test Esclerometro
Usage Overview

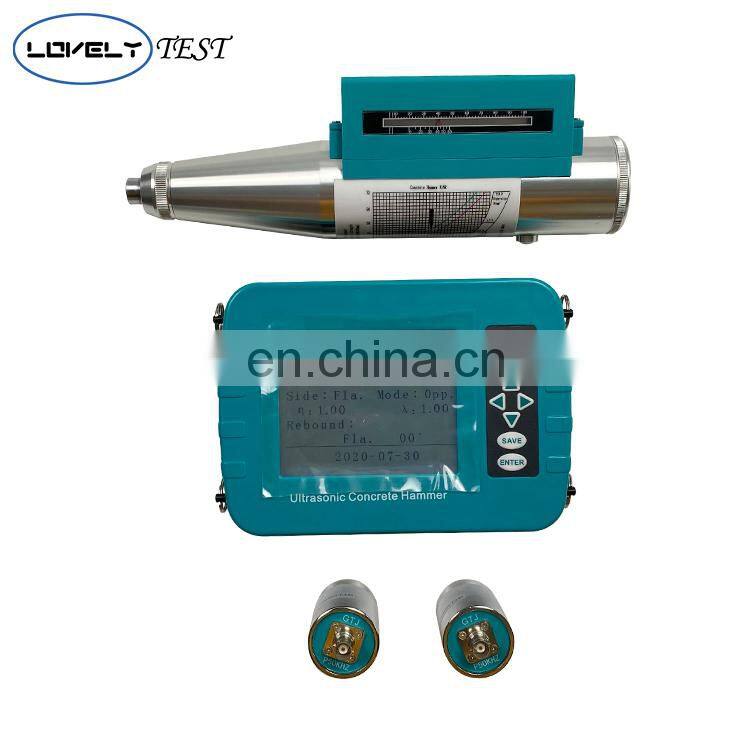

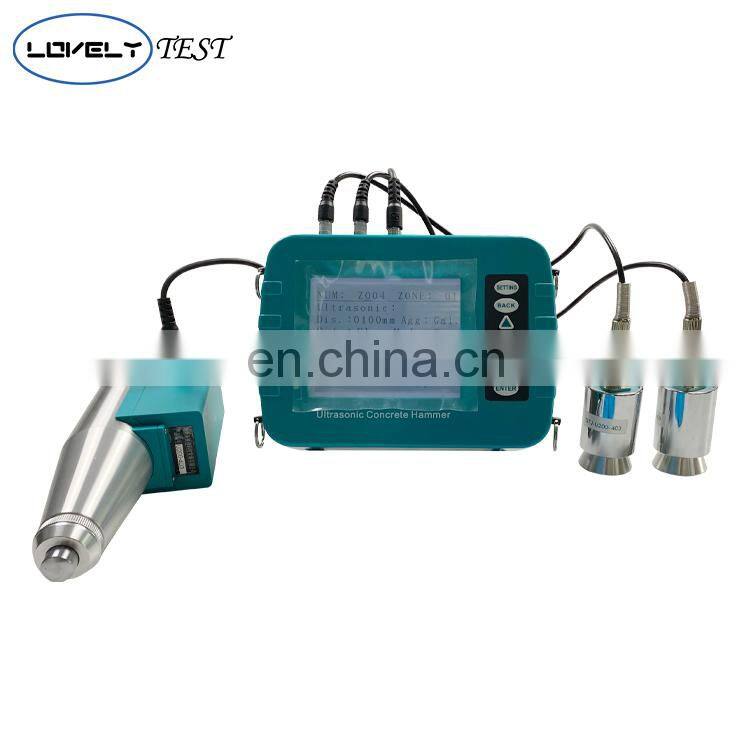

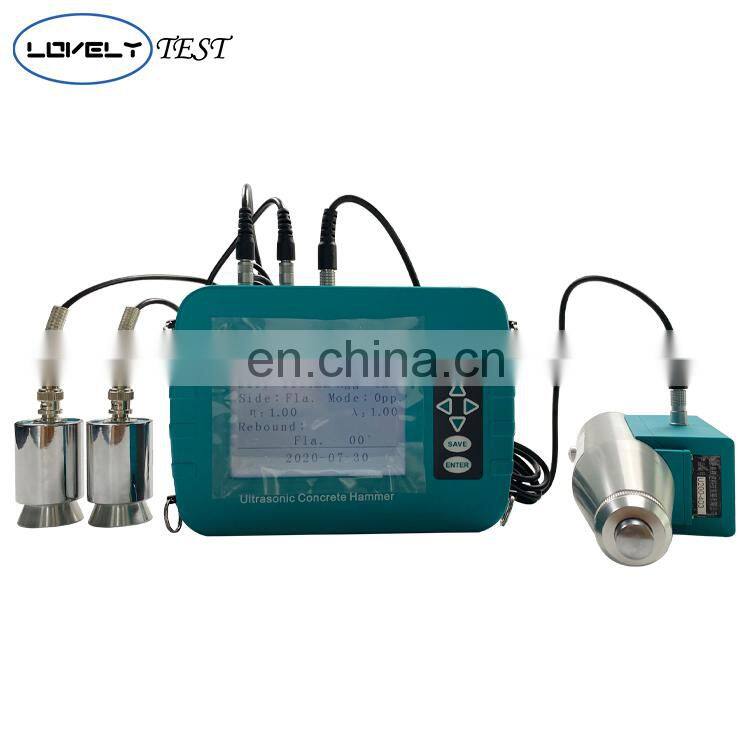

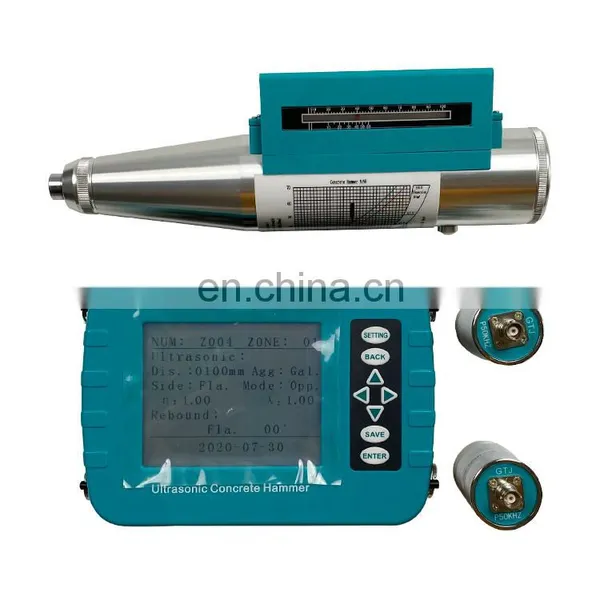

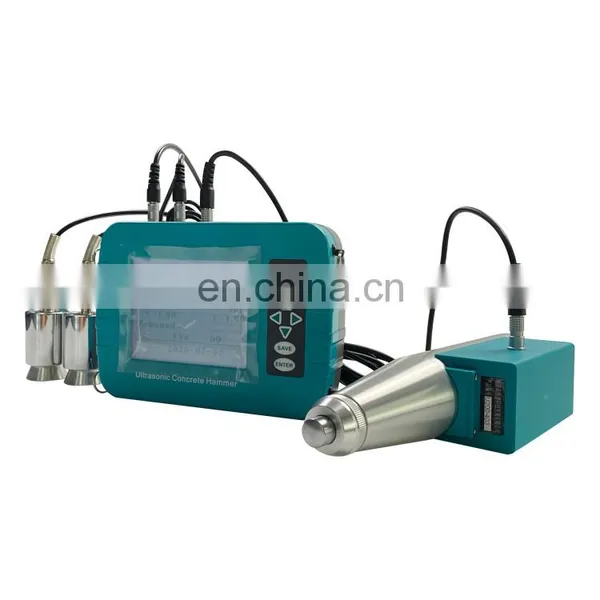

Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary
rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and
sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and
sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Product Description
· Integral design, compact size
· Easy to carry and make work efficient
· Measurement data can be calibrated manually
·
Specification
Host parameter | Waterproof level:IP65 Screen size: 5 inches Volume: 195x140x45mm Weight: 0.85kg |
Ultrasonic indication error | ±0.1μs |
Ultrasonic transducer operating frequency | 50KHz |
Instrument ultrasonic frequency range | 5HZ~500KHz |
Data transmission mode | Wireless cloud transmission(optional) |
Springback apparatus nominal kinetic energy | 2.207J |
Stiffness of Spring Strike | 785.0±40.0(N/m) |
Impact length of ram | 75.0±0.3mm |
Rebound value average steel anvil rate | 80±2 |
Rebound value indication error | ≤±0.5 |
Powder supply mode | Large capacity lithium battery. powder supply time is more than 8 hours |
Working environment | -10~40℃ |

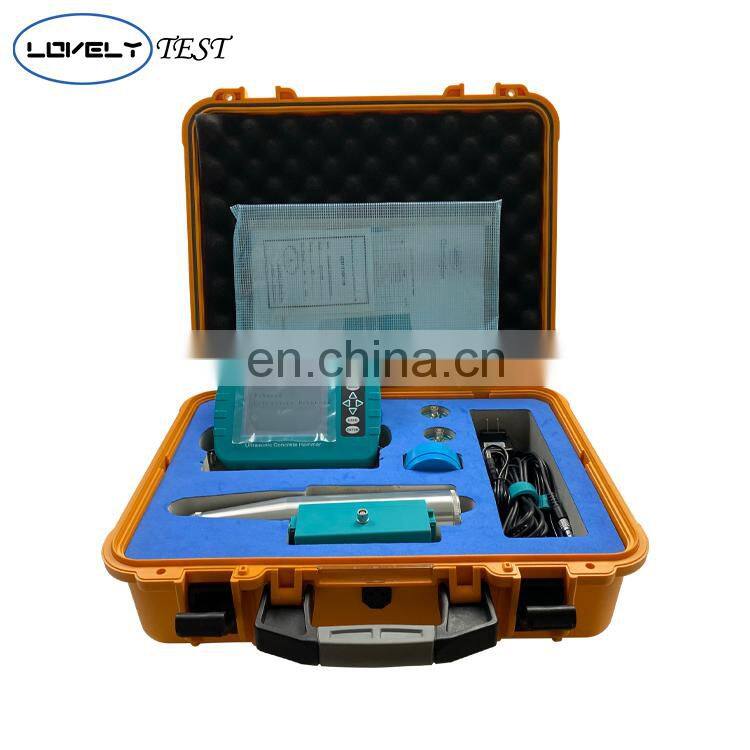

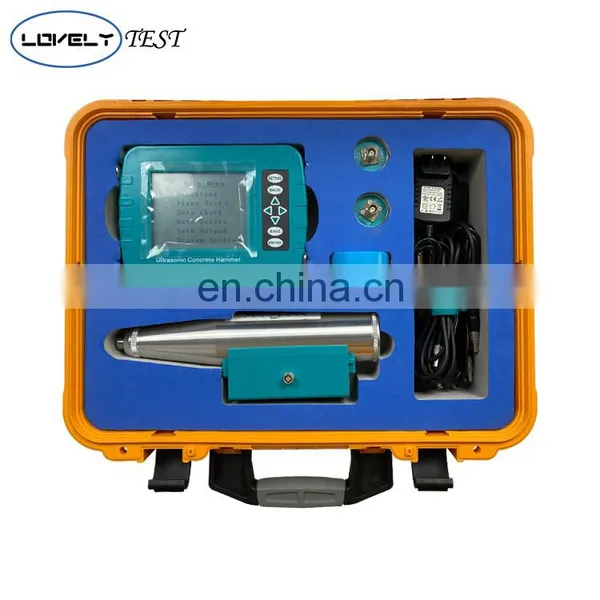

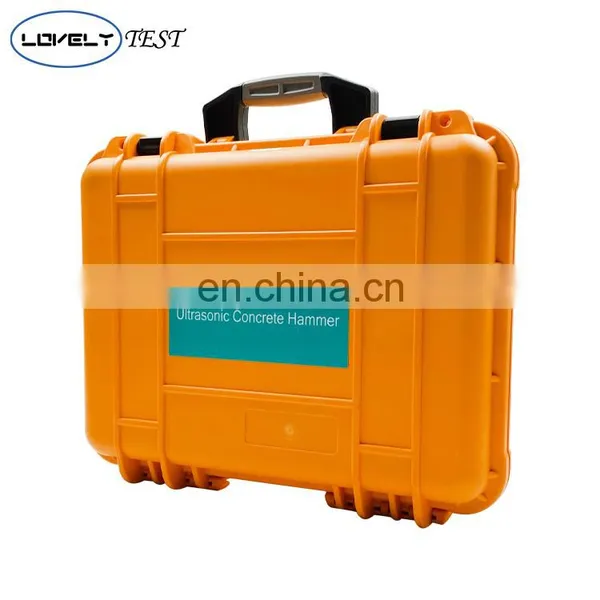

Unpacking display
Our Advantages
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method.
It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be
analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to
view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method.
It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be
analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to
view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
