Crack Depth Measurement by Ultrasonics
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Steel-reinforced concrete visible crack depth Gauge
-
Steel-reinforced concrete /asphalt crack depth Gauge Crack inspection
-
Cheap portable rebar detector rebar scanner for sale
-
Wholesale portable Cover Meter Concrete Rebar Locator Scanner Detector cheap price
-
Crack Depth Measurement in Concrete
-
Crack Depth Meter NDT Instruments
Product Description
Product Usage and Features

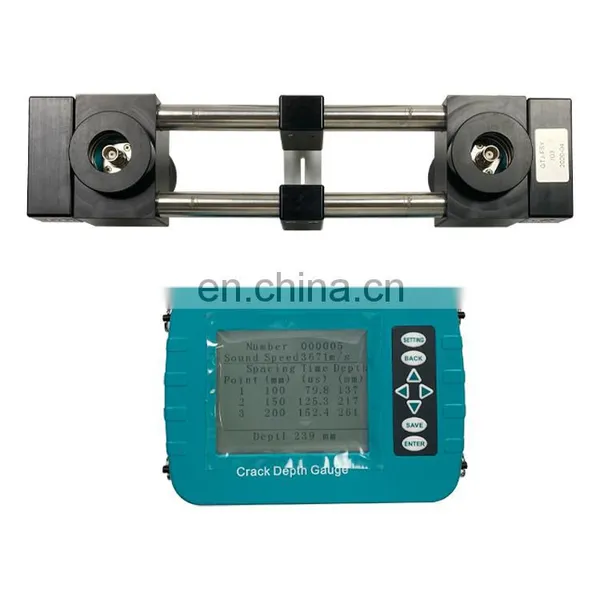

FSY Concrete Crack Depth Gauge
FSY Crack depth gauge is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.
PRODUCT FEATURE:
1.New upgraded wireless cloud transmission function; 2.It adopts three anti-shell design, waterproof, dustproof and shockproof;
3.On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;
4.The instrument is easy to operate, fast to master, no need for professional knowledge;
3.On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;
4.The instrument is easy to operate, fast to master, no need for professional knowledge;
5.High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.
6.Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.
Parameters
Crack depth test range | ≤500mm |
Test error | ≤5mm or 2% to 10% of the actual depth |
Data storage capacity | 20000 sets |
Data transmission method | Wirelrss cloud transmission(optional) |
Power supply | Large capacity lithium battery |
Working environment | Temperature:-10℃~40℃ Humidity:<90%RH |
Packing specification | Material:engineering plastic Volume:420*140*335mm Weight:5.5kg |
