Home > Instruments & Meters > Test Instrument > Test Machine > LQ50 Drop Ball Test Machine Drop Ball Rebound Modulus Tester 19kg
LQ50 Drop Ball Test Machine Drop Ball Rebound Modulus Tester 19kg
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LBY Concrete Thickness Gauge Floor Measuring Instrument for SlabNegotiableMOQ: 1 -
Crack Depth Meter/CRACK DEPTH GAUGE With Best PriceNegotiableMOQ: 1
-
Crack Depth Measurement by UltrasonicsNegotiableMOQ: 1
-
Steel-reinforced Concrete Visible Crack Depth GaugeNegotiableMOQ: 1
-
Steel-reinforced Concrete /asphalt Crack Depth Gauge Crack InspectionNegotiableMOQ: 1
Product Usage and Features

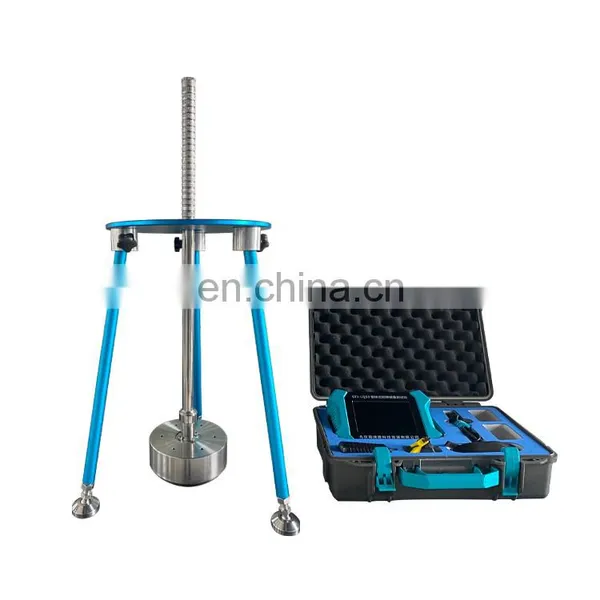

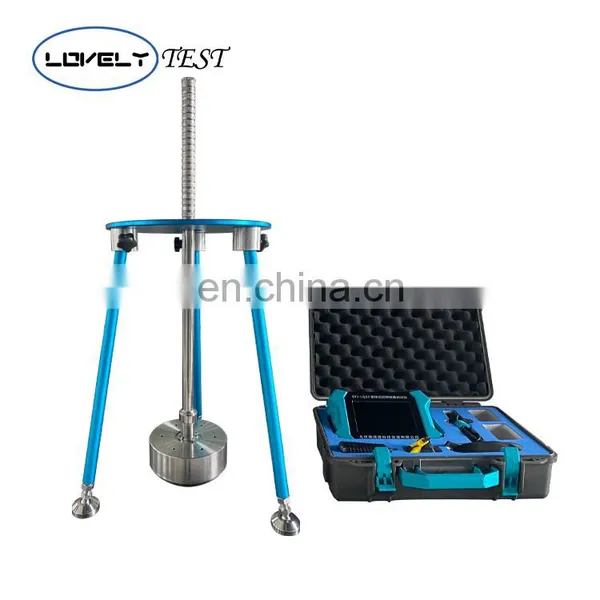

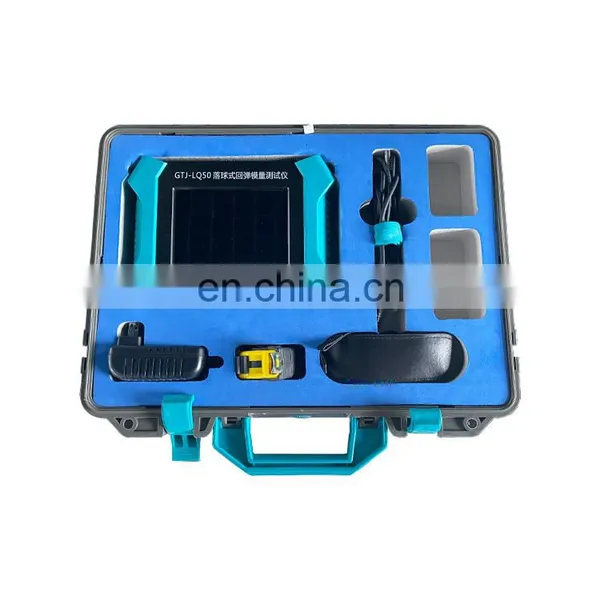

GTJ-LQ50 Drop ball rebound modulus tester
USAGE OVERVIEW:
The principle of the falling ball rebound modulus tester is to raise the rigid sphere to a certain height (50 cm), let the rigid sphere fall freely and collide with the materials along the way, test the acceleration during the process and analyze the acceleration during the impact process. In order to find out the various indicators of earthy materials.
The principle of the falling ball rebound modulus tester is to raise the rigid sphere to a certain height (50 cm), let the rigid sphere fall freely and collide with the materials along the way, test the acceleration during the process and analyze the acceleration during the impact process. In order to find out the various indicators of earthy materials.
PRODUCT FEATURE:
1. The instrument is convenient and quick to operate. Starting from the needs of engineering inspection, users can quickly grasp the use method;
2. Small size, light weight, easy to carry;
3. The user operates through the touch screen, and the interface is simple;
4. Large-capacity data memory, support for mobile storage;
5. Built-in rechargeable lithium battery, long standby time;
Parameters
Product |
LQ50 Drop ball rebound modulus tester |
System noise voltage |
＜2mV |
Dynamic range |
＞138dB |
Amplifier band |
10Hz~10kHz |
A/D resolution |
16-bit A/D |
Sampling time interval |
2us~32768us |
Sampling length |
1024,2048,4096 |
Time indication error |
＜1% |
Number of channels |
1 |
Magnification |
1~128 |
Trigger method |
Signal trigger |
Sensor sensitivity |
100mV/g |
Sensor band |
1-10000Hz |
Continuous working time |
More than 10 hours |
Power supply |
Built-in rechargeable lithium battery(+7.4) |
Weight |
1.24kg |
Size |
220*160*50mm |
Host Screen type |
Touch Capacitive screen 640*480 |
