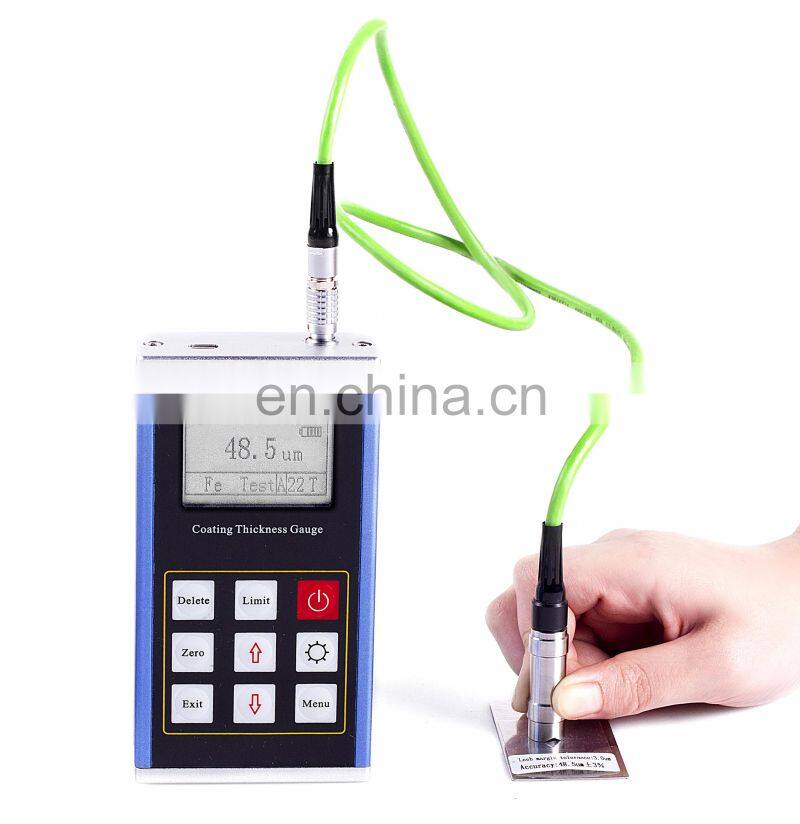

L230 Coating Thickness Gauge

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

L230 Coating Thickness Gauge

Product Description

1. Coating thickness gauges are widely used in the fields of electroplating, anticorrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, and commodity inspection.

2. It can be used not only in the laboratory but also on the engineering site. Configure different probes, suitable for different occasions.

3. It is an essential instrument in the nondestructive testing industry.

1. Full English menu;
2. Two working methods;
3. Data deletion function;
4. Automatically alarm the measured value outside the limit;
5. Power supply undervoltage indication;
6. Manual and automatic shutdown modes
7. Two measurement methods;
8. Can store 500 measured values;
9. The limit can be set.

Function:
The magnetic measurement method can be used to detect the thickness of the non-magnetic coating on the magnetic metal substrate (such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steel).

Specification

Model	L230
Probe type	F1
Working principle	Magetic induction
Measuring range	0~1250μm
Low resolution	0.1μm
Indication error	One point calibration	±（3% H + 1）
	Two-point calibration	± [(1 ~ 3%) H + 1]
Test Conditions	Minimum radius of curvature mm	Convex 1.5, concave 9
	Minimum area diameter mm	Φ7
	Basic critical thickness mm	0.5
working environment	temperature	0 ~ 40 ℃
	humidity	20% ~ 90%
power supply	AA type alkaline battery 1.5V two
shell	metal shell
Dimensions	150 × 55.5 × 23mm (host)
weight	F1 / 320g

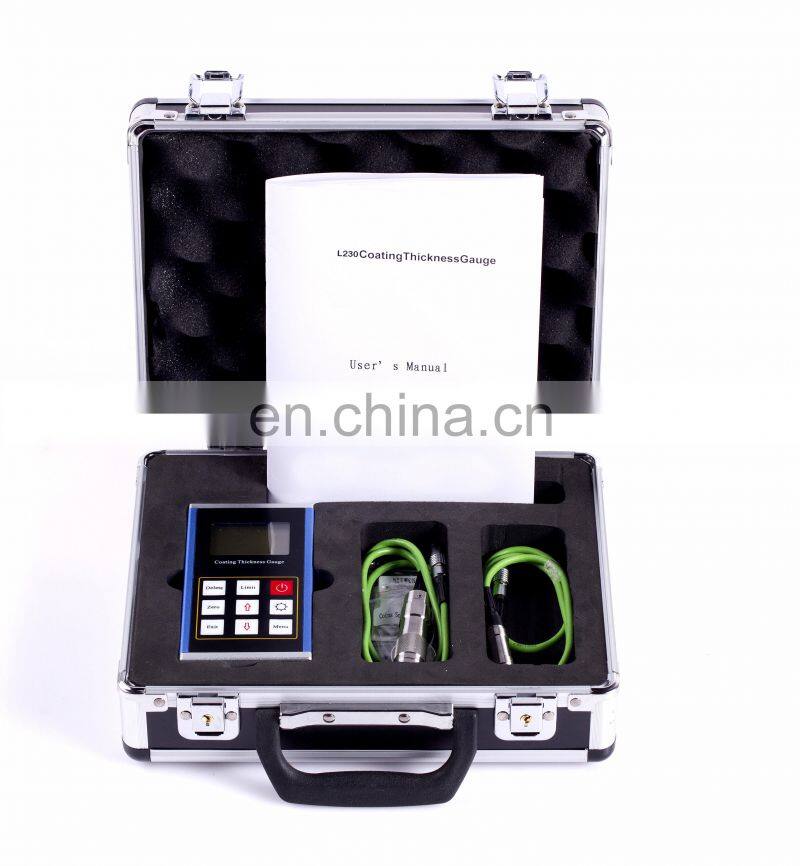

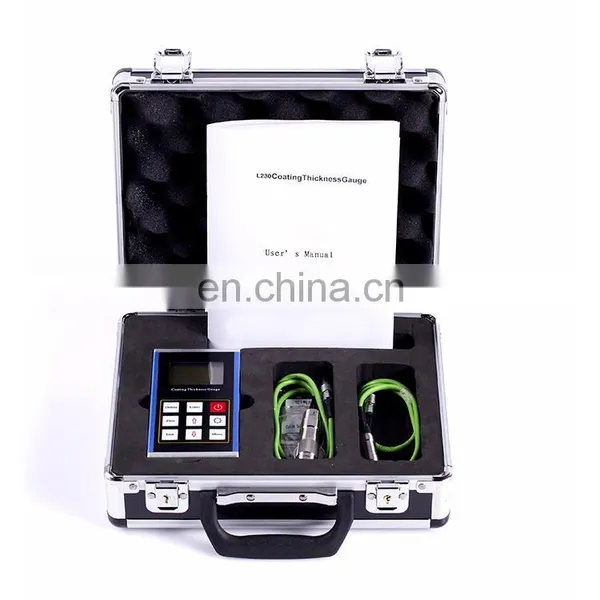

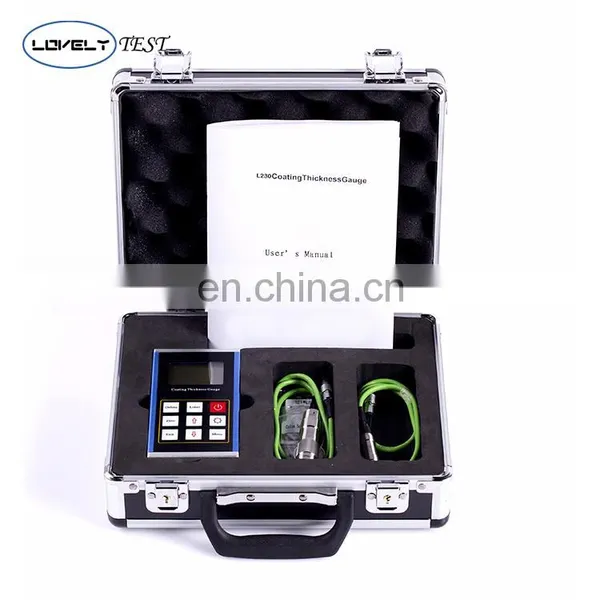

Standard configuration	Host, standard test piece, substrate, AA type alkaline battery, probe F1

Packing & Delivery

· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company
