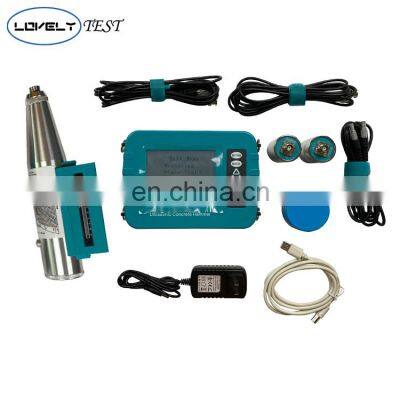

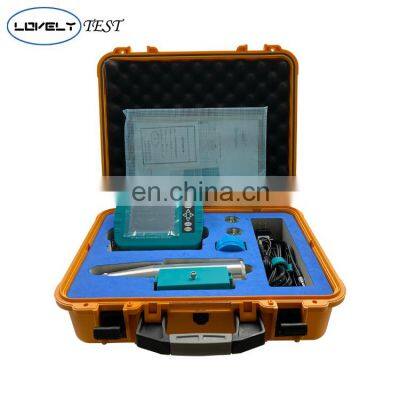

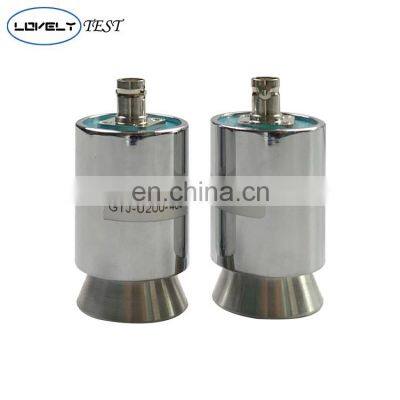

U200 Ultrasonic Pulse Velocity Tester UPV Tester Concrete Strength Testing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pull-Off Adhesion Tester SupplierNegotiableMOQ: 1 -
Carbon Fiber Reinforced Plastic (CFRP)NegotiableMOQ: 1
-
Durability Performances of Carbon Fiber TesterNegotiableMOQ: 1
-
Light Alloy Carbon Fiber Bond Strength Tester SupplierNegotiableMOQ: 1
-
Non Destructive Paint Adhesion TestingNegotiableMOQ: 1
Product Usage and Features
Concrete Ultrasonic Pulse Velocity Tester
Usage:
Concrete Ultrasonic Pulse Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.
Concrete Ultrasonic Pulse Velocity Tester/Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Features:
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic reboundmethod.It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Parameters
Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Waterproof level | IP65 |
Screen Size | 5 inches |
Ultrasonic Frequency | 50KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic Volume:420*140*335mm Weight:5.5KGs |
Detailed Images
Application
Contact US
Cangzhou Lovely Technology Co., Ltd.
It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
Any questions, welcome to contact our product specialist online! We wait for your inquires.
We adhere to the high standards of product quality, adopting the world-class production equipment, advanced management method and production experience, developing the high-quality testing equipment.
We have strong sales team and a comprehensive service process to serve end customers around the world. If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;
2. Get best product with excellent quality and competitive price;
3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;
4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;
5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
