U910 Ultrasonic Foundation Pile Integrity Tester Wall Integrity Tester
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
High Precision Ultrasonic detector pile integrity test
-
High Precision Reflected Wave Method Pile dynamic tester
-
Portable Concrete rebound Hammer tester Resiliometer Hammer 10-60Mpa hot sale
-
Stainless Steel Concrete Rebound Hammer Tester ZC3-A Resiliometer Hammer Test Meter Tool 10-60Mpa
-
Professional Concrete Test Hammer Rebound Hammer manufacturer price
-
Rebar Ground Anchor/Accessories/Building Kits
Product Description
Product Usage and Features

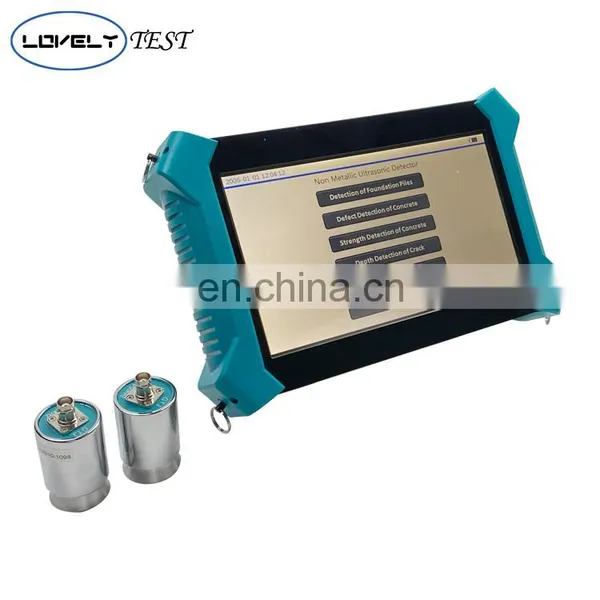

U910/U920Non-metallic ultrasonic detector
USAGE OVERVIEW
U910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
1.New upgraded wireless cloud transmission function;
2.Five functions of measuring pile, strength, defect, sounding depth and width measuring;
3.Stable performance and powerful function, it is the best choice for users with diverse needs, such as engineering inspection, teaching and scientific research;
4.Semi-transparent, high-brightness, TFT color LCD screen;
5.Full touch screen operation, simple and convenient, stable and reliable;
6.Large memory capacity and working time over 10 hours;
7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;
8.U-disk transfers data and supports software upgrading through U-disk;
9.Special analysis software. The data analysis and processing, report generation, and report printing can be completed easily.
Technical Parameters
Product Model | U910 | U920 | U930 |
Master control unit | Buit-in A8 industrial control motherboard | Buit-in A8 industrial control motherboard | Buit-in A8 industrial control motherboard |
Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen |
Operational mode | Touch screen | Touch screen | Touch screen |
Storage mode | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk |
Data transmission mode | Wireless Cloud Transport(Options) | Wireless Cloud Transport(Options) | Wireless Cloud Transport(Options) |
Acquisition mode | Single-channel, manual point-by-point acquisition | Manual point-by point collection of single and double channels | Single and double channel automatic continuous and acquisition |
Number of dispossable profiles | - | - | 2 |
Channel number | 1 transmit+1 receive | 1 emission+2 reception | 1 emission+2 reception |
Trigger mode | Signal triggering | Signal triggering | Signal triggering |
Sampling period(μs) | 0.05~409.6 Multistage Options | 0.05~409.6 Multistage Options | 0.05~409.6 Multistage Options |
Acoustic time accuracy(μs) | 0.05 | 0.05 | 0.05 |
Acoustic time range(μs) | +1677700 | +1677700 | +1677700 |
Width measurement function | Range: 0~10mm Accuracy: 0.01mm | Range: 0~10mm Accuracy: 0.01mm | Range: 0~10mm Accuracy: 0.01mm |
Dynamic range(dB) | 146 | 146 | 146 |
Bandwidth(kHz) | 1~500 | 1~500 | 1~500 |
Emission voltage(V) | 65, 250, 500 and 1000 gears adjustable | 65, 250, 500 and 1000 gears adjustable | 65, 250, 500 and 1000 gears adjustable |
Communication | UBS, Bluetooth, Wifi | UBS, Bluetooth, Wifi | UBS, Bluetooth, Wifi |
Working hours(h) | More than 8 | More than 8 | More than 8 |
Power supply mode | Built-in lithium battery External 220V~ 16V AC/CD | Built-in lithium battery External 220V~ 16V AC/CD | Built-in lithium battery External 220V~ 16V AC/CD |
Working environment | Temp.: -10℃~ + 40℃ Humidity(RH) <90% | Temp.: -10℃~ + 40℃ Humidity(RH) <90% | Temp.: -10℃~ + 40℃ Humidity(RH) <90% |
Host size(mm) | 300*200*55 | 300*200*55 | 300*200*55 |
Welcome to contact us! Get our online support!
Any questions, our product specialists advise you in technical and application questions.
Detailed Images

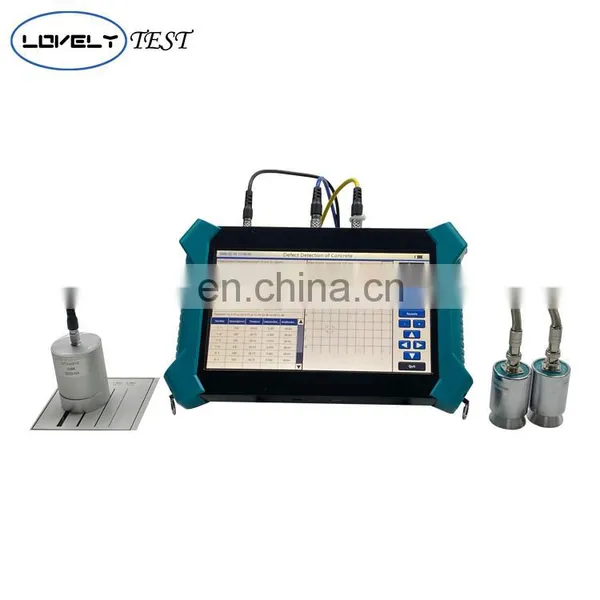

Six fast detection method

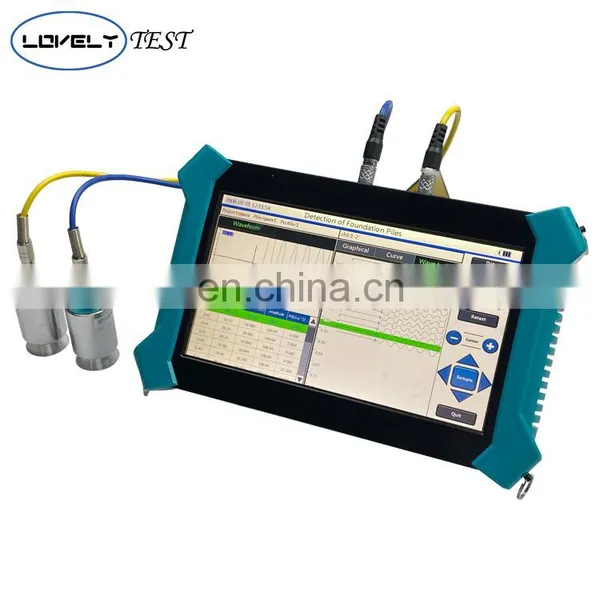

1.Continuous inspection of foundation piles by ultrasonic projection method

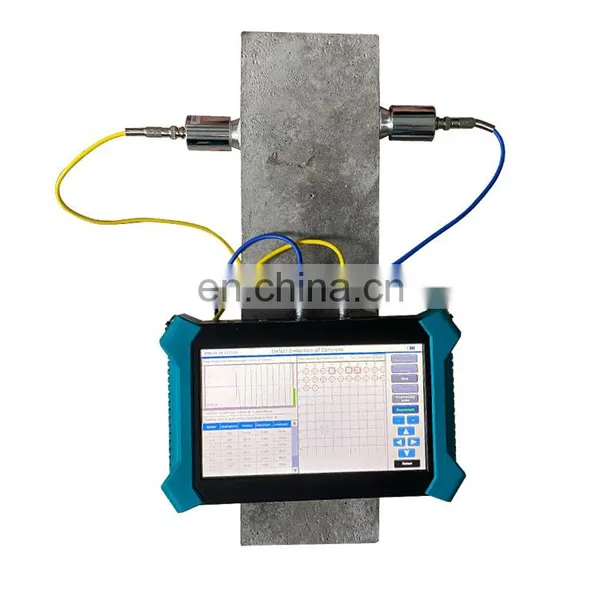

2.Continuous Concrete wall integrity detection
3.Concrete compressive strength test
4.Concrete structure crack depth detection

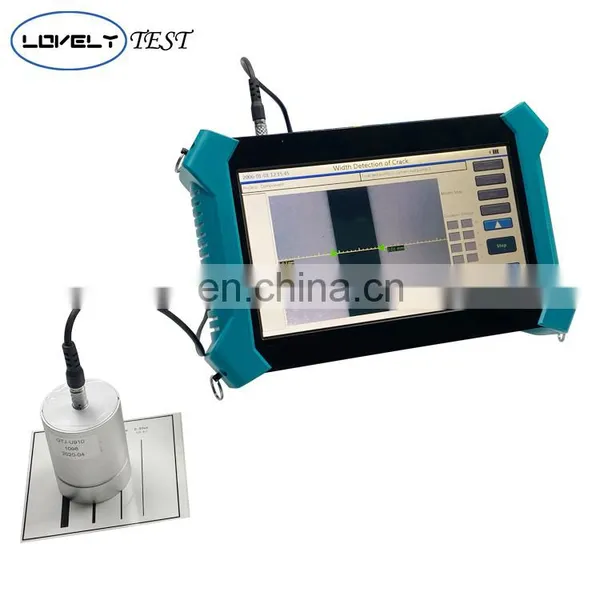

5.Concrete structure crack width detection
6.Testing of mechanical properties of non-metallic materials such as rock and concrete
Full touch screen operation, simple and convenient, stable and reliable.
Company Introduction
Cangzhou Lovely Technology Co., Ltd
Cangzhou Lovely Technology Co.,Ltd. is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.
Packing & Delivery
After Sales Service
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is GTJ test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
