High Precision Ultrasonic Detector Pile Integrity Test
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Reflected Wave Method Pile Dynamic TesterNegotiableMOQ: 1 -
Portable Concrete Rebound Hammer Tester Resiliometer Hammer 10-60Mpa Hot SaleNegotiableMOQ: 1
-
Stainless Steel Concrete Rebound Hammer Tester ZC3-A Resiliometer Hammer Test Meter Tool 10-60MpaNegotiableMOQ: 1
-
Professional Concrete Test Hammer Rebound Hammer Manufacturer PriceNegotiableMOQ: 1
-
Rebar Ground Anchor/Accessories/Building KitsNegotiableMOQ: 1
Product Usage and Features
GTJ-P800 Wireless Pile Integrity Tester
PRODUCT OVERVIEW
Wireless Pile Integrity Tester is a kind of test and analysis instrument for pile body structural integrity of engineering foundation pile under impact or vibration load in the process of pile foundation integrity detection and pre-pile driving monitoring.
PRODUCT FEATURES
1.New upgraded wireless cloud transmission function;
2.The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method;
3.Small size, light weight, easy to carry;
4.The user operates through the touch screen, and the interface is simple;
5.Support multiple waveform processing methods to make defect positioning more accurate;
6.large-capacity data memory, support for mobile storage;
7.Built-in rechargeable lithium battery, long standby time;
8.The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports.
Technical Parameters
Model |
GTJ-P800 |
System noise voltage |
＜ 2mV |
Dynamic range |
＞ 138 dB |
Amplifier band |
10Hz ~ 10kHz |
A/ D resolution |
16 bit A/ D |
Magnification |
1 ~ 128 times |
Sampling interval |
2us~32768us |
Sample length |
1024,2048,4096 |
Time indication error |
＜ 1% |
Channel numbers |
Single channel |
Sensor sensitivity |
100mV/g |
Sensor band |
1-10000Hz |
Continuous working time |
＞ 10 hours |
Operating mode |
Touch |
Working environment |
Temperature: -10 ~ 40 ℃ Humidity <90% RH |
Power supply mode |
Built-in rechargeable lithium battery (7.4 V) |
Detailed Images

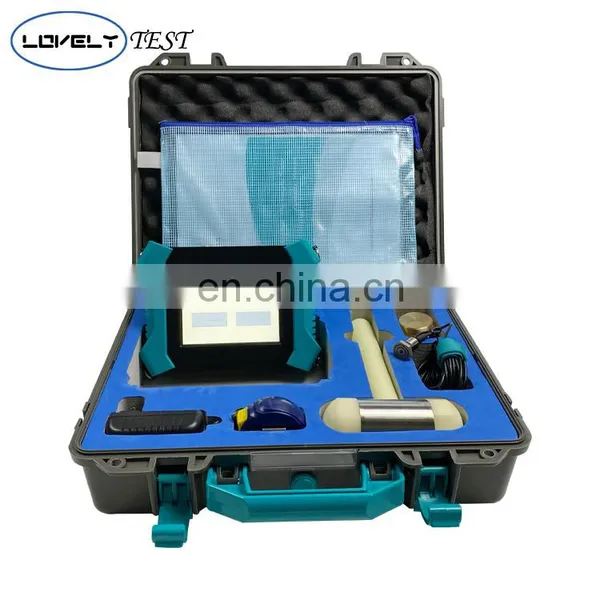

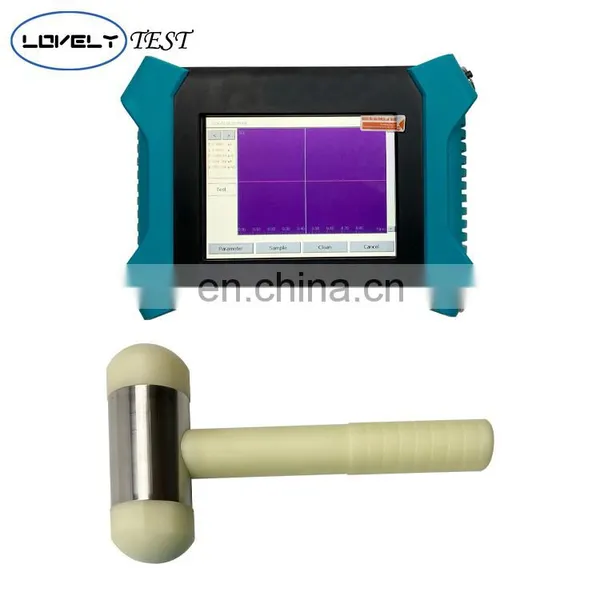

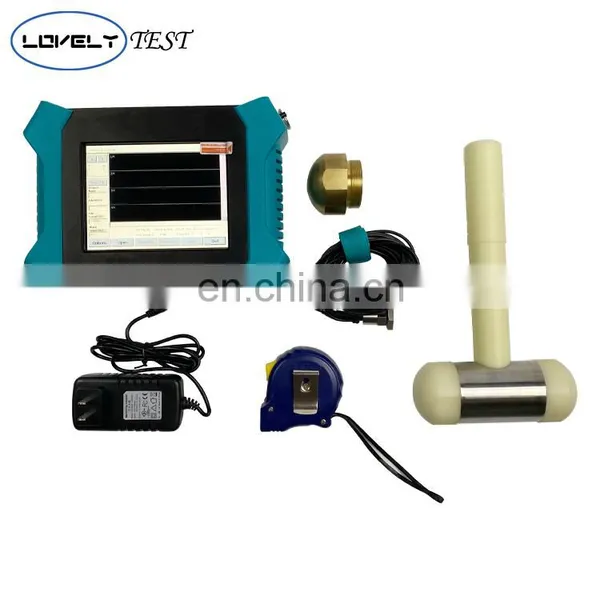

Wireless Pile Integrity Tester
Small size, light weight, easy to carry;
The user operates through the touch screen, and the interface is simple;
Support multiple waveform processing methods to make defect positioning more accurate;
Large-capacity data memory, support for mobile storage;
Company Introduction
Cangzhou Lovely Technology Co., Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Packing & Delivery
Welcome to visit us for better business cooperation!
After Sales Service
FAQ
Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing all kinds of scaffolding material. Besides, we could also purchase products asrequest.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3: What's the MOQ of the product?
A: Different items have different MOQ. Welcome to contact our sales for getting more details.
Q4: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q5: How long is the production cycle after ordering?
A: General it is about 15-30 days. We will send the time according to the order’s quantity.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
