EV2 Static Deformation Modulus Tester Ev2 Tester Soil Testing Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
GTJ-Ev2 High Quality Civil Engineering Elastic Static Deformation Modulus Meter Testing Apparatus Tester
-
Static Plate Load Tester | Material Testing Equipment Supplier
-
EV2 Plate Static Deformation Modulus Tester for Soil
-
Static Plate Load Test in Soil Testing
-
Plate Load Tests (static Plate) With Standard Plate 300mm/600mm
-
Light Drop Weight Tester for Soil Compaction Testing
Product Description
Product Usage and Features
Ev2 Plate Bearing Test Set Static Deformation Testing Machine
USAGE OVERVIEW:
Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
PRODUCT FEATURE:
1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.
2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage
stabilization.
stabilization.
3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.
4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;
5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
7.USB transmission interface, easy to connect with the computer.
Parameters
Product | Static Deformation Testing Plate Bearing Test Set | ||
Application | Effective depth | 0~ 500mm | |
Working ambient | Working ambient -10℃~40℃ Humidity <90%HR | ||

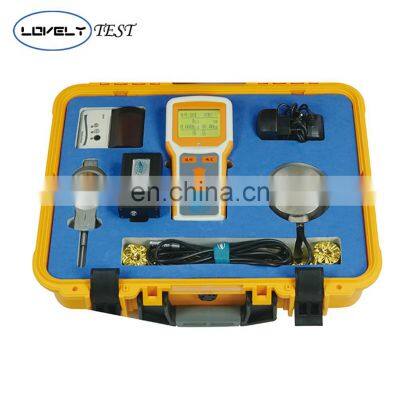

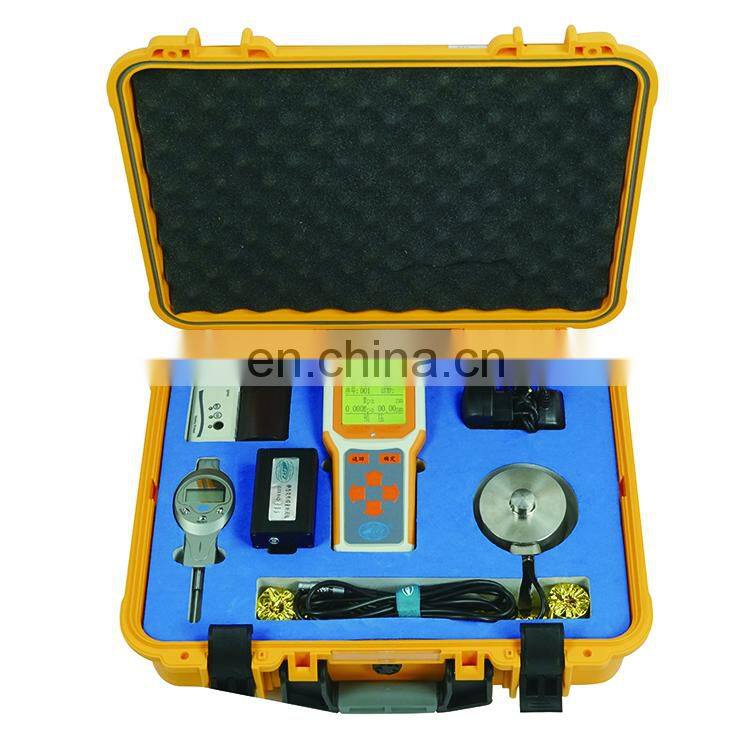

Electeic sedimentation meter | Size | Screen size:3inch Overall size:100×205×40mm Net weight:0.8kg | |
Storage amount | 400 groups testing curve | ||
Powder supply | Lithium battery, over 18hrs continuous work time | ||
Display method | Chinese/English | ||
Printer | Connection method | Wireless Bluetooth printer | |
Transducer | Pressure range | 100kN | |
Displacement range | 25mm | ||
Displacement resolution | 0.01mm | ||
Measure device | Bearing plate | Diameter:300mm Thickness:25mm Weight:17.5kg | |

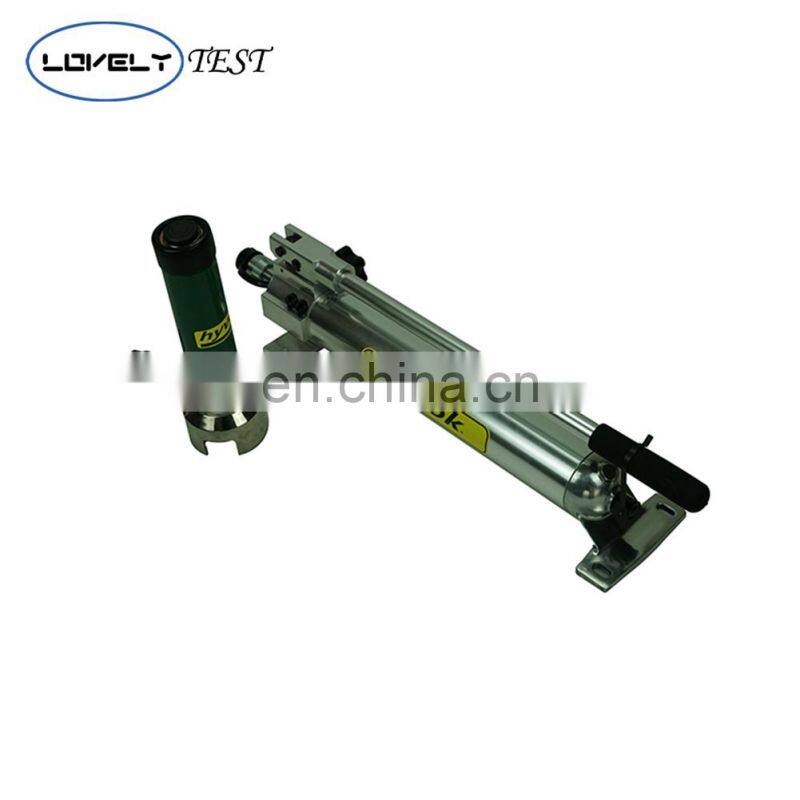

Loading device | Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm | ||

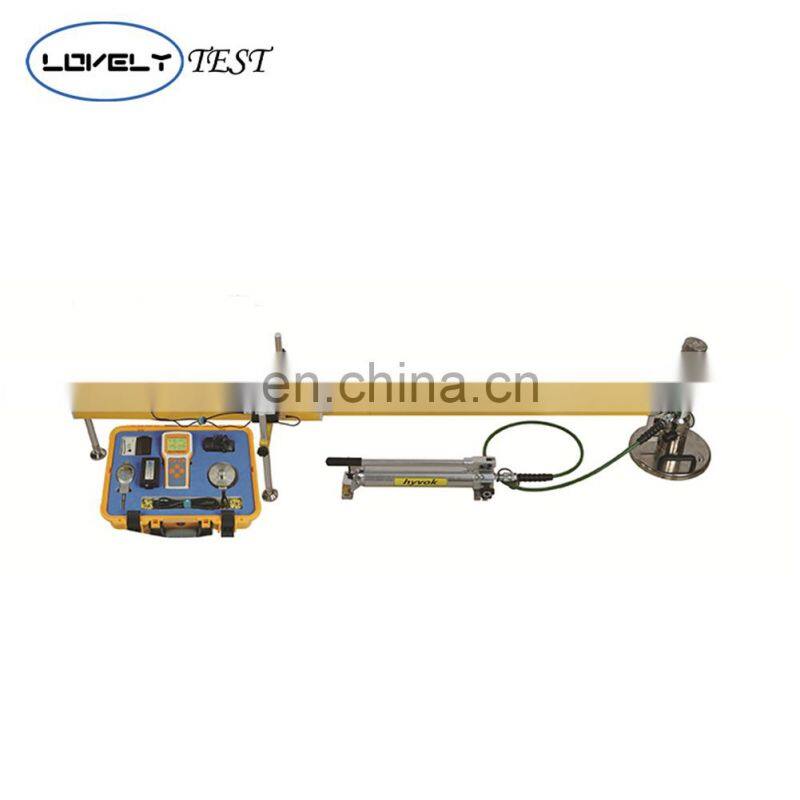

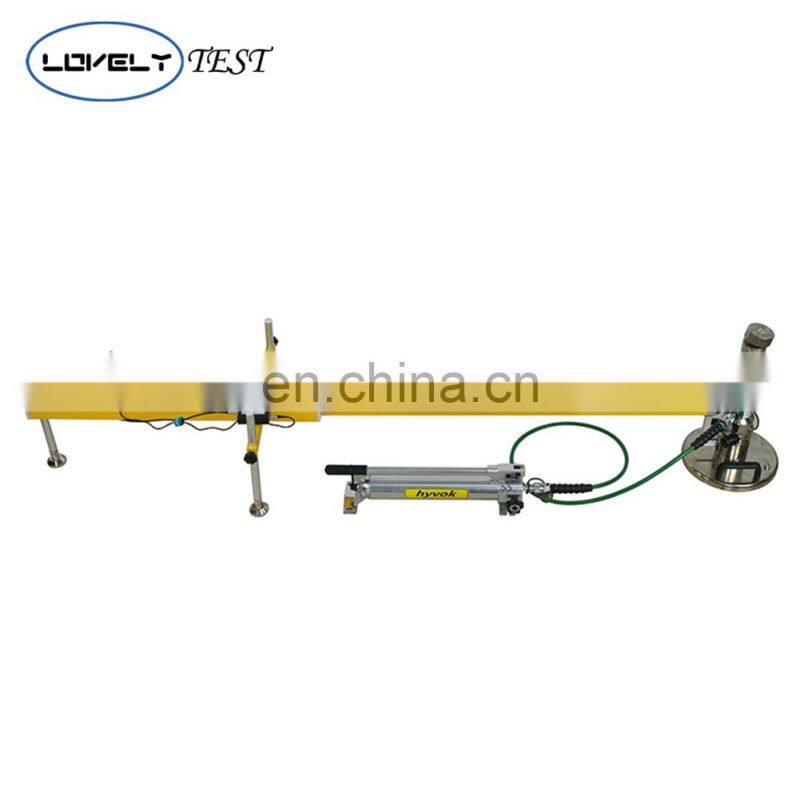

Sedimentation measure device | Three point frame (with flexible and rotary lever arm, adjustable base) Dimension:2320*570*420mm Weight:12.5kg | ||
Product Details
Application
