Static Plate Load Test in Soil Testing

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Ev2-W Static Deformation Modulus Tester

Product Usage and Features

Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.

After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.

Parameters

Product	Static Deformation Testing Plate Bearing Test Set
Application	Effective depth	0~ 500mm
Application		Working ambient	Working ambient -10℃~40℃ Humidity <90%HR
Electeic sedimentation meter	Size	Screen size:5inch Overall size:145×70×10mm Net weight:110g
		Storage amount	10G
		Powder supply	Lithium battery, over 18hrs continuous work time
		Display method	Chinese/English
		Location	GPS
Printer	Connection method	Wireless Bluetooth printer
Transducer	Pressure range	100kN
		Displacement range	25mm
		Displacement resolution	0.01mm

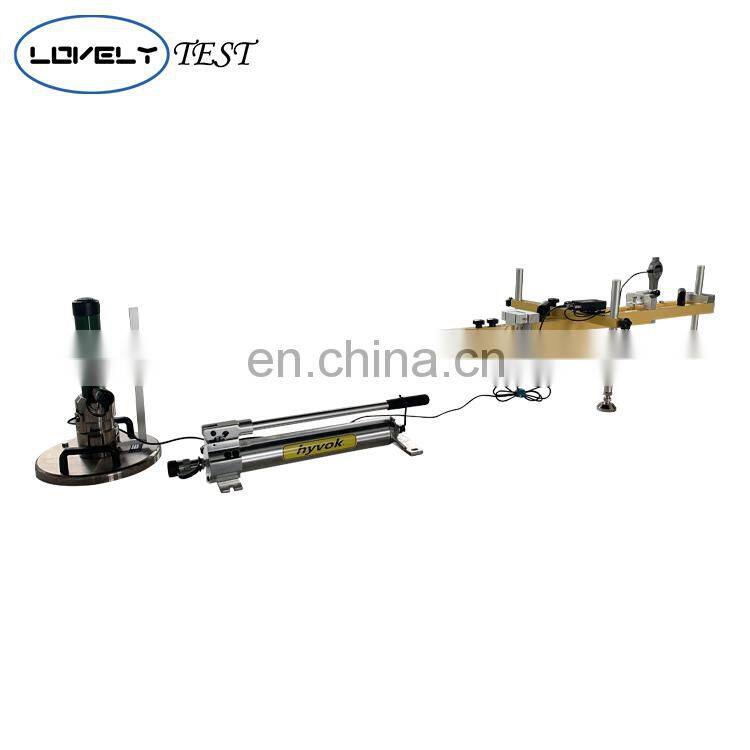

Measure device	Bearing plate	Diameter:300mm Thickness:25mm Weight:17.5kg
		Loading device	Hydraulic pump:100kN high pressure tube:2m *Oil cylinder extensible rod:190mm,1120mm,* *1160mm,1160mm,260mm**

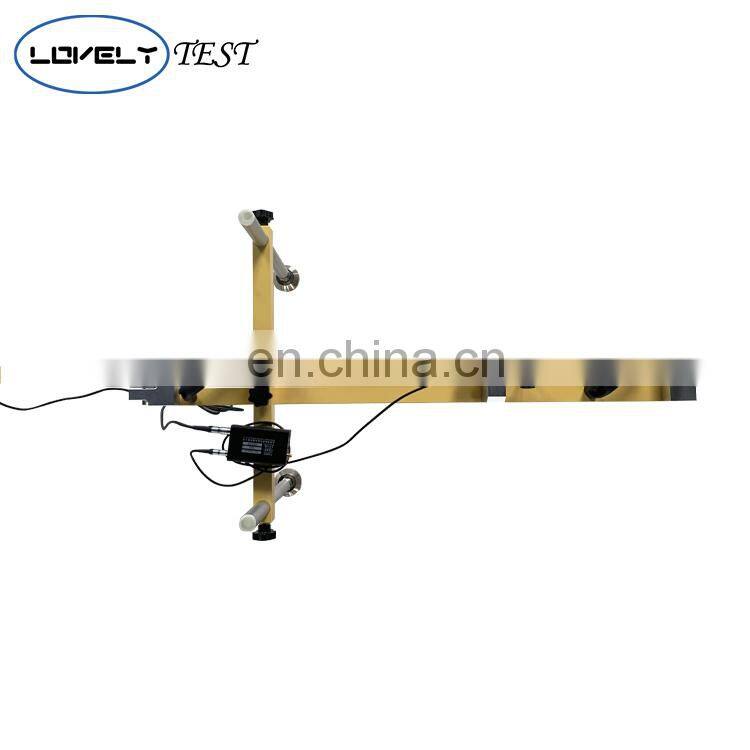

		Sedimentation measure device	Three point frame (with flexible and rotary lever arm, adjustable base) *Dimension:2320570420mm* Weight:12.5kg

Product Details

1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.

2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.

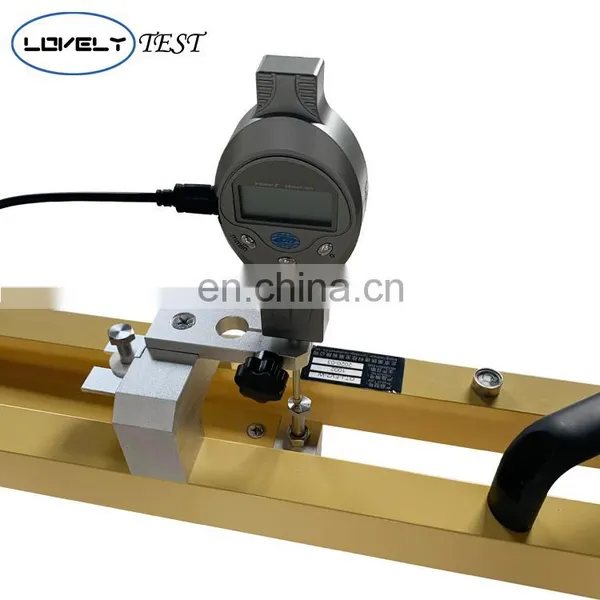

3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.

4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;

5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.

6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.7.USB transmission interface, easy to connect with the computer.

Application

Cangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.

Our Customers and patent certificate

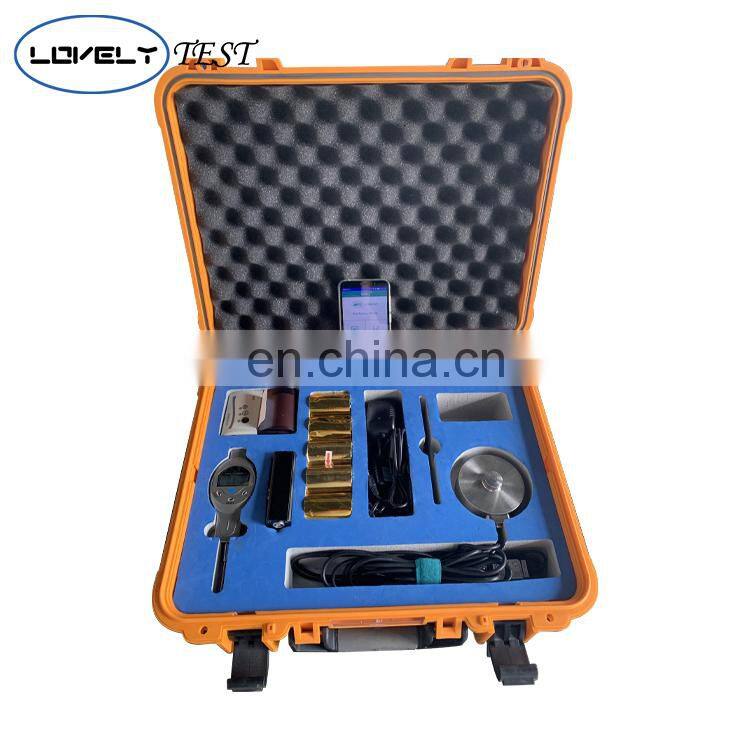

Packing & Delivery

Why Choose us ?

Get our in-time reply via email or telephone or instant messenger;

Get best product with excellent quality and competitive price;

One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service;

Feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost;

Easily make the payment via West Union, Paypal, T/T for small value order;
