Ev2-W Static Deformation Modulus Tester
Product Usage and Features

Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.

After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
Parameters
Product
Static Deformation Testing Plate Bearing Test Set
Application
Effective depth
0~ 500mm
Working ambient
Working ambient -10℃~40℃ Humidity <90%HR

Electeic sedimentation
meter

Size
Screen size:5inch
Overall size:145×70×10mm
Net weight:110g
Storage amount
10G
Powder supply
Lithium battery, over 18hrs continuous work time
Display method
Chinese/English
Location
GPS
Printer
Connection method
Wireless Bluetooth printer

Transducer
Pressure range
100kN
Displacement range
25mm
Displacement resolution
0.01mm


Measure device
Bearing plate
Diameter:300mm
Thickness:25mm
Weight:17.5kg

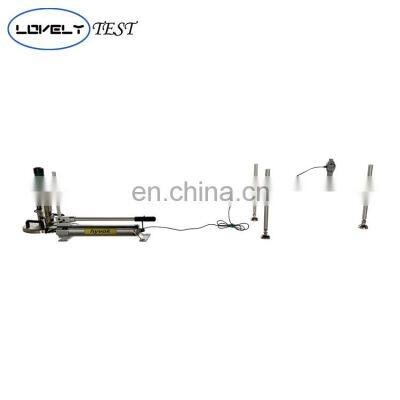

Loading device
Hydraulic pump:100kN
high pressure tube:2m
Oil cylinder extensible rod:1*90mm,1*120mm,
1*160mm,1*160mm,2*60mm
Sedimentation measure device
Three point frame
(with flexible and rotary lever arm, adjustable base)
Dimension:2320*570*420mm
Weight:12.5kg
Product Details
1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.
2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.
3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.
4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;
5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.
6.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.7.USB transmission interface, easy to connect with the computer.
