R800 Integrated Concrete Wall Scanner Rebar Locator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
F800 Wireless Integrated Crack Detector Factory Price
-
Integrated Floor Thickness Detector Gauge for Sale Concrete Thickness Gauge
-
High Precision Integrated Floor Thickness Gauge Thickness Measurements
-
Integrated Concrete Thickness Measuring Instrument Gauge Floor Slab Thickness Gauge
-
High Quality Concrete Floor Slab Thickness Measuring Instrument Gauge Digital Thickness Gauge Meter
-
R800 Integrated Concrete Rebar Scanner Wall Scanner Rebar Locator
Product Description
Product Usage and Features
R800 Integrated Rebar Detector
Usage:
The integrated rebar detector is a portable non-destructive testing instrument, which are mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar.
It is characterized in coil structure design, faster speed, higher accuracy, stronger.
It can tests thickness of concrete cover and rebar diameter location.
GTJ-R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
It can tests thickness of concrete cover and rebar diameter location.
GTJ-R800 Integrated Rebar Scanner can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Features:
1.Integrated design, small in size and easy to carry.;
2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time;
3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency;
4.The waveform scanning mode also shows the thickness and spacing of the rebar protective layer;
5. 2.8 inch high resolution color liquid crystal screen;
6. Large TF card storage capacity, intuitive and convenient transmission;
7. PC professional data analysis software, data processing and report generation can be easily completed.
Parameters
Product | Concrete cover meter rebar locator |
Model | GTJ-R800 |
Rebar dia. setting range | 6mm~50mm |
Scope of rebar dia. estimation | φ6mm~φ32mm |
Concrete cover test range | 1~210mm |
Small range | 1mm~90mm |
Large range | 1mm~210mm |
Max. allowable errors of the Protective Layer Thickness | 1-80mm (±1mm) |
81~120mm (±2mm) | |
121~210mm (±4mm) | |
Profile measurement function | Support |
Mesh measurement function | Support |
Waveform measurement function | Support |
probe self-calibration | Support |
Host parameters | Screen size: 2.8 inch Resolution: 240*320 |
Volume: 220*93*110mm Weight:0.6KG | |
Data transmission mode | TF card; wireless cloud transmission (potional) |
Power suppy | Lithium battery |
Storage capacity | 2000 Components *1000 Measuring points |
Working environment | Temperature: -10℃ ~ +40℃ Humidity：≤ 90%RH |
Detailed Images

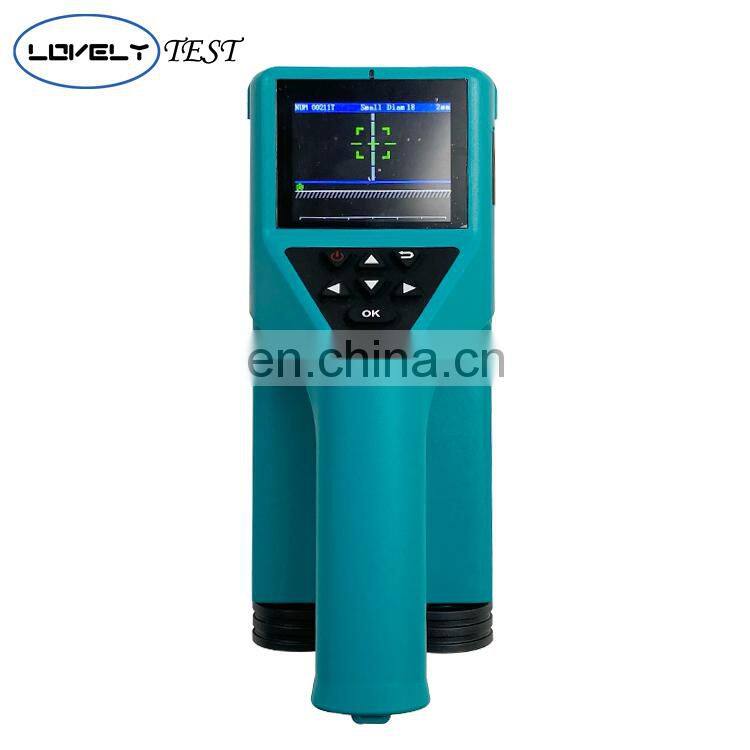

GTJ-R800 Integrated Rebar Scanner
It can tests thickness of concrete cover and rebar diameter location.
It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed.
Application
