Home > Products > NDT Instrument > RBL+ detector locator scanner

RBL+ detector locator scanner

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

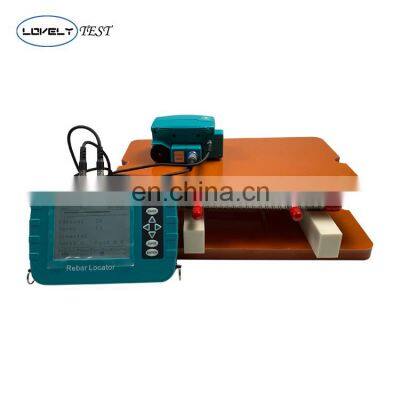

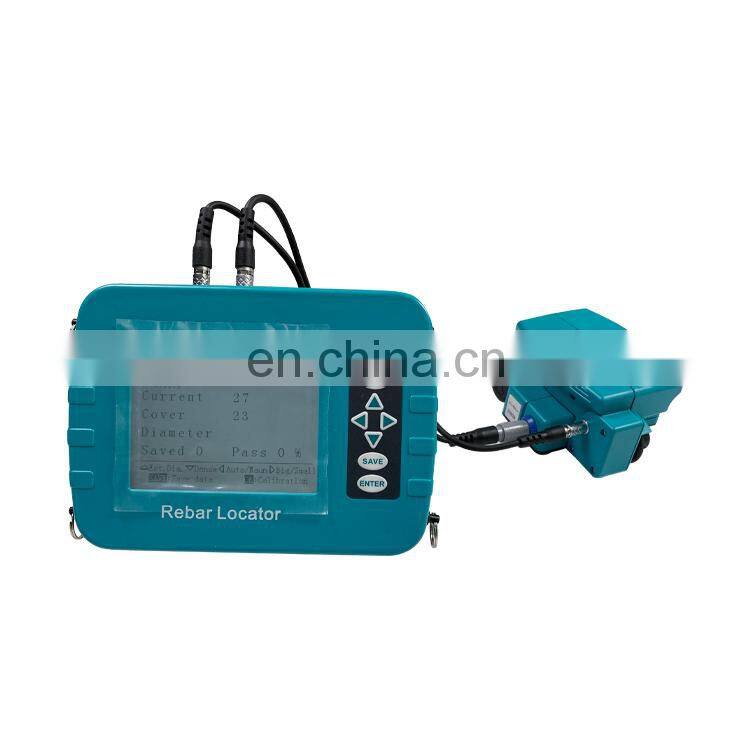

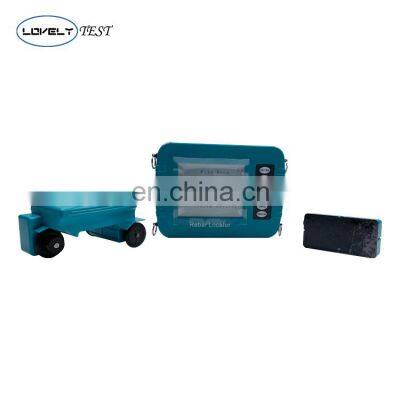

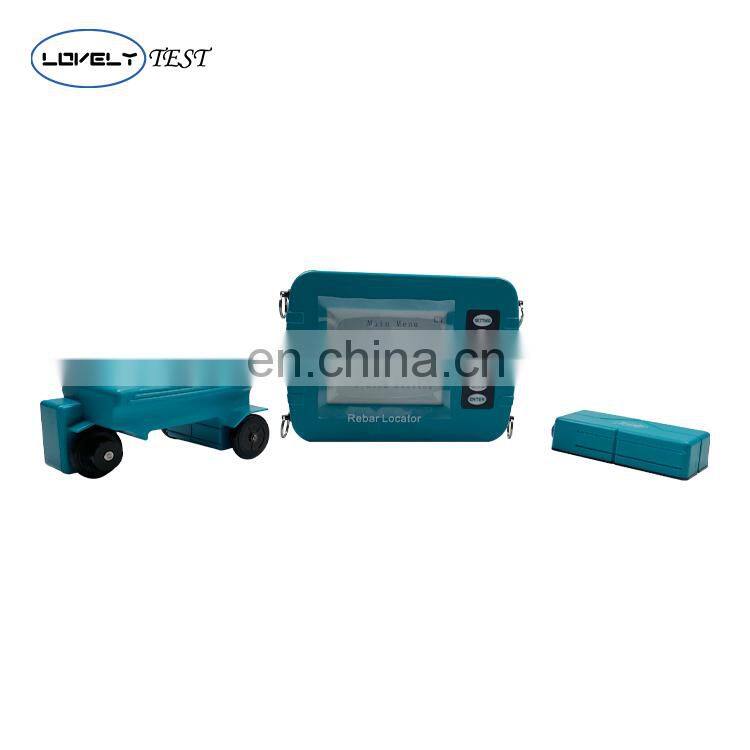

RBL+ detector locator scanner

Product Description

1. The Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures.

2. It can measure the position of steel bars on the concrete surface and detect the
thickness of the protective layer of the steel bars and the diameter of the steel bars.

3. ln addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before
construction can effectively avoid damage to these facilities and reduce accidents.

1.	Upgraded wireless cloud transmission function
2.	Adopt three anti-shell design, waterproof, dust-proof and shock-proof;
3.	Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content;
4.	Built-in large capacity memory card, storage capacity upgrade;
5.	USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.
6.	Real-time display of protective layer thickness and steel signal image, minimum automatic locking;
7.	Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth;
8.	Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work;

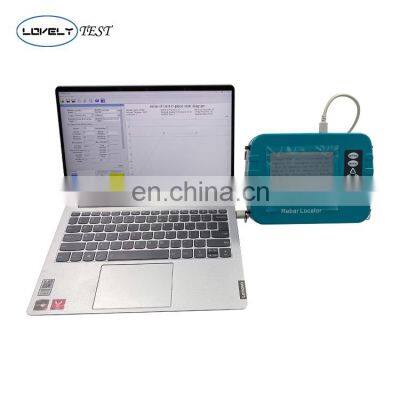

9.	Professional data analysis software, so that your post-processing data and report generation work can be easily completed.

Technical Parameters

Product model			RBL+
Applicable range of protective layer thickness(mm)			∅6mm~∅50mm
First range			6mm-90mm
Second range			6mm-200mm
Maximum allowable error of second range protective layer thickness	±1(mm)	6-80mm
		±2(mm)	81-119mm
		±4(mm)	120-200mm
Applicable scope of diameter estimation			∅6mm~∅32mm
Maximum error of diameter indication			±1 specifications
Section grid			Graphics+Digital Display
Storage quantity			2000 components*1000 measuring points
Data transmission mode			USB, Wireless clod transport()options
Power supply mode			Lithium battery
Host parameters			Waterproof parameters:IP65
				Screen size: 5 inches
				Resolving power: 320x240
				Volume: 195x140x45mm
				Weight: 0.8kg
Powder supply			Large capacity lithium battery for more than 12 hours
Working environment requirements			Temperature:-10℃~40℃
			Humidity: ＜90%RH
Other requirements			There is no corrosive gas in the air, No strong electromagnetic interface There should be no major shocks or shocks instruments to avoid direct sunlight
Packing Specification			Material:Engineering plastics Volume: 420x140x335mm Weight: 5.5kg

Our Advantages

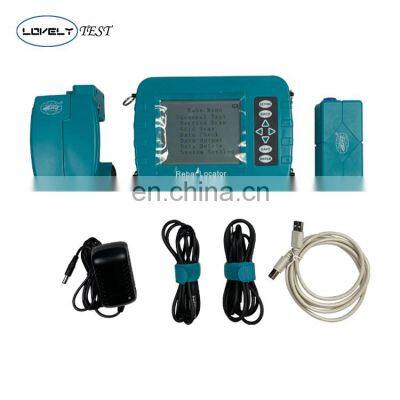

a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.

If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!

Our customer

Packing & Delivery

· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company

Company Profile

Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.

All our products are made in China. Excellent quality with competitive price.

FAQ

Q1: Are you a factory or trading company?
A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.

Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.

Q3: How to choose the Transportation Term?
A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you.

Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.

Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
