Light Weight EVD Tester Light Weight Deflectometer LWD
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Digital Blaine Air Permeability Apparatus
-
Concrete Test Hammer Calibration Steel Anvil 16KG
-
Manual Concrete Testing Hammer Rebound Test Hammer
-
Concrete Piles Integrity Testing Sonic Integrity Tester
-
Concrete crack camera ultrasonic detector Crack depth width testing equipment
-
Concrete crack detector Crack width camera Ultrasonic Crack depth testing equipment
Product Description
Application
evd dynamic deformation modulus tester
USAGE OVERVIEW
The GTJ-EVD Light weight deflectometer is used to determine the deflection capacity of the subgrade under the dynamic load, thereby evaluating the bearing capacity and deformation of the subgrade.
It is suitable for monitoring and testing the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil buildings under dynamic loads, especially in narrow areas, such as bridge transition section and shoulder detection, existing line subgrade, etc.
Compared with the static load test, the instrument can simulate the impact effect of high-speed train on subgrade, which can better reflect the actual stress of subgrade soil. It can quickly measure the dynamic deformation modulus Evd value.
Main Features
1. | Pioneer Phone APP for wireless transmission and voice prompt function. (model: Evd-W) |
2. | High accuracy imported sensors, which is more reliable. |
3. | Easy to operate and fast to test. It takes only 35 seconds to detect a point. |
4. | The Evd value is calculated automatically and the curve is displayed accurately and intuitively. |
5. | Non-nuclear radiation and exhaust gas pollution, safe to operation and environment. |
Technical Parameters
Test Coverage
Application Soil Types | Soil-rock mixed fillers with particle size less than 1/4of the diameter of loading plate |
Test scope | 10Mpa≤Evd≤225Mpa |
Test impact depth | 0~500mm |
Work environment | Temperature: -10~40℃ Humidity: ＜90%HR |
Date-collecting device
Loading device | Weight | 15KGs |
Drop weight | 10KGs | |
Dropping height of drop hammer | 700±20mm | |
Maximum impact force | 7.07kN | |
Shock duration | 18±1ms | |

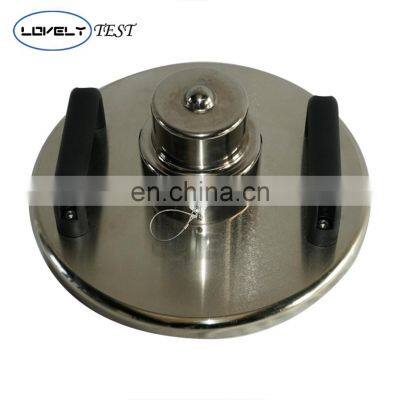

Loading plate | Weight | 15KGs |
Diameter | 300mm | |
Thickness | 20mm |
Packing specification
Host box | Material | engineering plastics |
Volume | 420×140x335mm | |
Weight | 4.5GKs | |

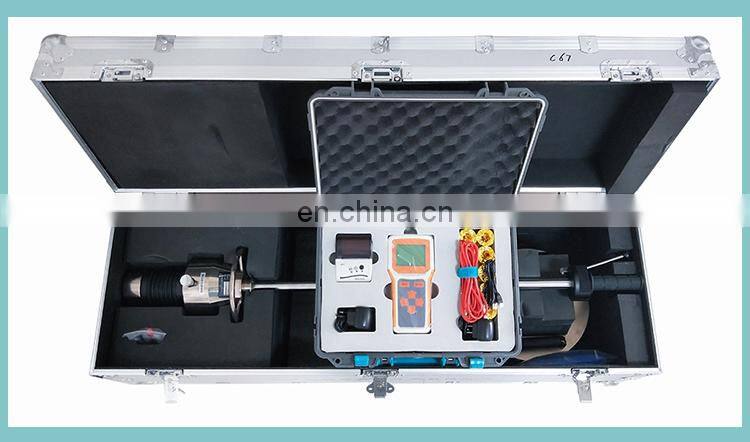

Outer packing box | Material | Aluminum alloy |
Volume | 1220x395x380mm | |
Weight | 56KGs |
If you have any questions or need more detailed information please just contact us!

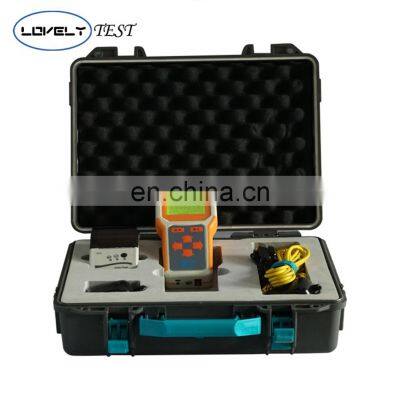

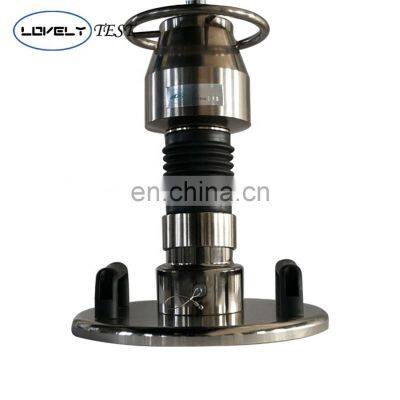

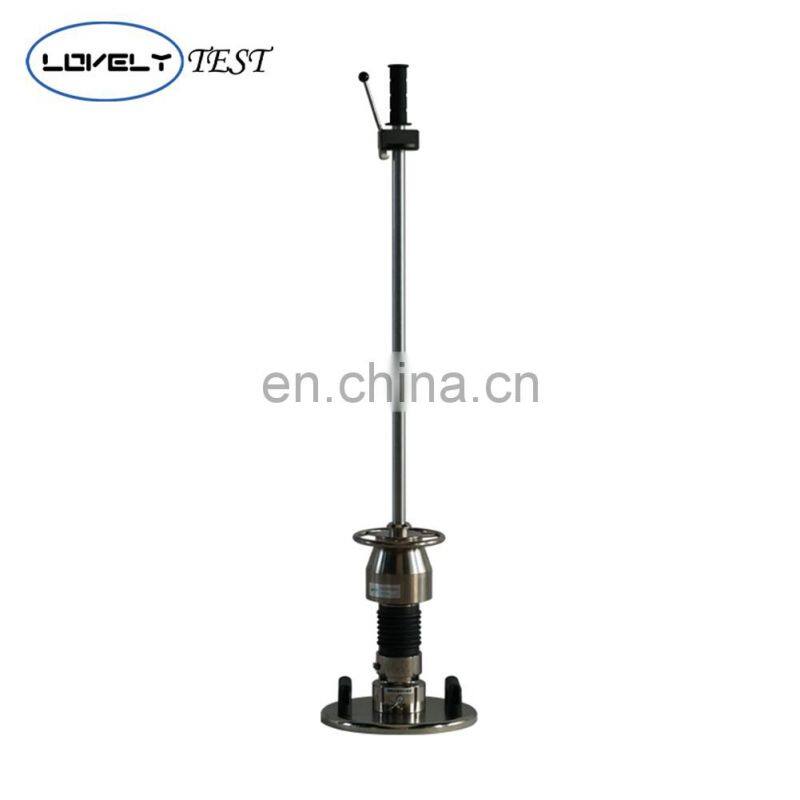

Detailed Images
Company information
Cangzhou Lovely Technology Co.,Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
