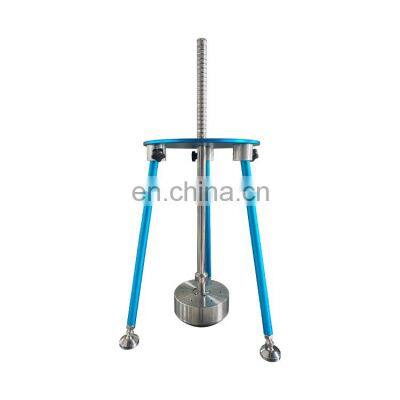

Home > Instruments & Meters > Test Instrument > Test Machine > GTJ-LQ50 Falling Ball Rebound Modulus Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT225S Digital Concrete Test Hammer With Phone App for Rebound Hammer TesterNegotiableMOQ: 1 -
Brike Resiliometer Rebound Hammer HT75NegotiableMOQ: 1
-
Mortar Rebound Hammer Online SalesNegotiableMOQ: 1
-
L332 Ultrasonic Thickness Gauge With Best PriceNegotiableMOQ: 1
-
L130 Portable Hardness TesterNegotiableMOQ: 1

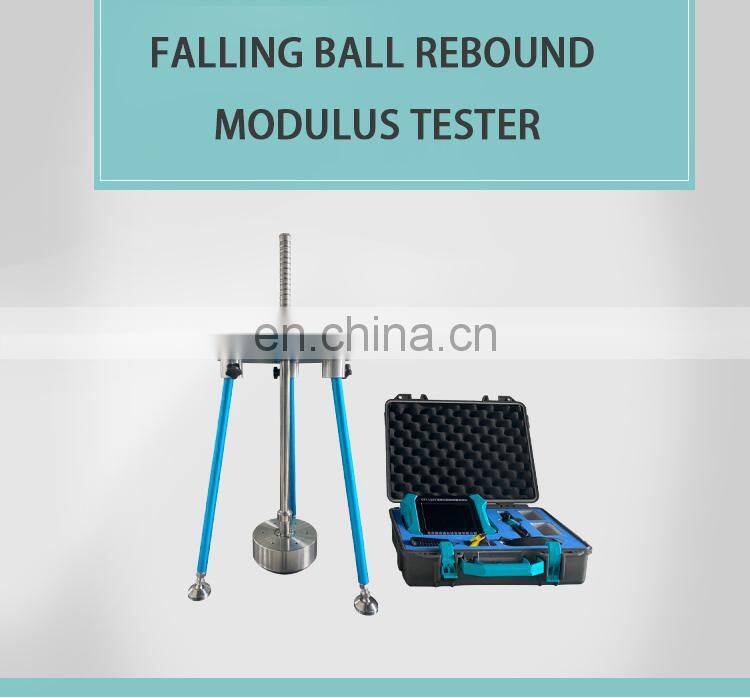

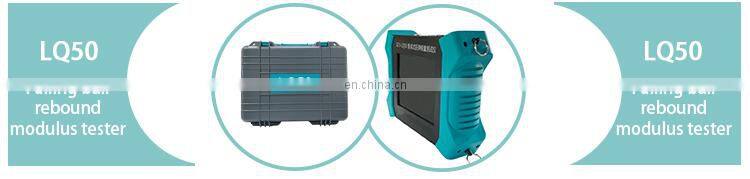

LQ50 Drop ball rebound modulus tester
Usage Overview
The principle of the falling ball rebound modulus tester is to raise the rigid sphere to a certain height (50 cm), let the rigid sphere fall freely and collide with the materials along the way, test the acceleration during the process and analyze the acceleration during the impact process. In order to find out the various indicators of earthy materials.
Product Description
1. The instrument is convenient and quick to operate. Starting from the needs of engineering inspection, users can quickly grasp the use method;
2. Small size, light weight, easy to carry;
3. The user operates through the touch screen, and the interface is simple;
4. Large-capacity data memory, support for mobile storage;
5. Built-in rechargeable lithium battery, long standby time;
2. Small size, light weight, easy to carry;
3. The user operates through the touch screen, and the interface is simple;
4. Large-capacity data memory, support for mobile storage;
5. Built-in rechargeable lithium battery, long standby time;
Specification
Product model | LQ50 |
System noise voltage | ＜2mV |
Dynamic range | ＞138dB |
Amplifier band | 10Hz~10kHz |
A/D resolution | 16-bit A/D |
Sampling time interval | 2us~32768us |
Sampling length | 1024, 2048, 4096 |
Time indication error | ＜1% |
Number of channels | 1 |
Magnification | 1~128 |
Trigger method | Signal trigger |
Sensors sensitivity | 100mV/g |
Sensor band | 1-10000Hz |
Continuous working time | More than 10 hours |
Powder supply | Built-in rechargeable lithium battery (+7.4V) |
Weight | 1.24Kg |
Size | 220x160x50mm |
Display | Capacitive screen 640x480 |
Operation method | Touch |

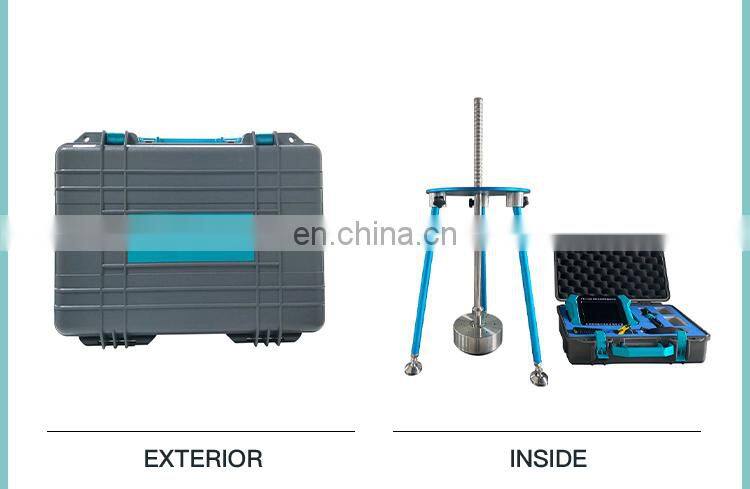

Unpacking display
