Product Description

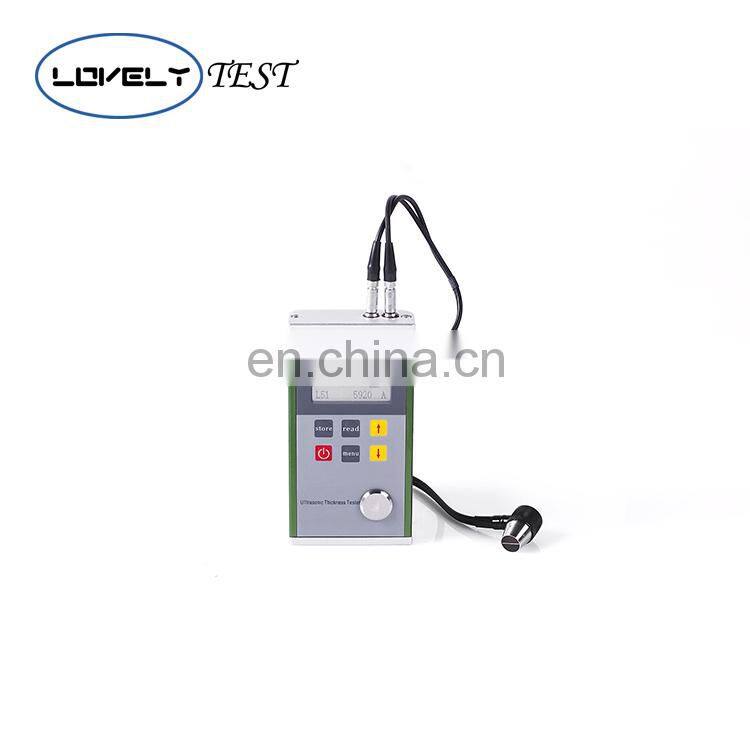

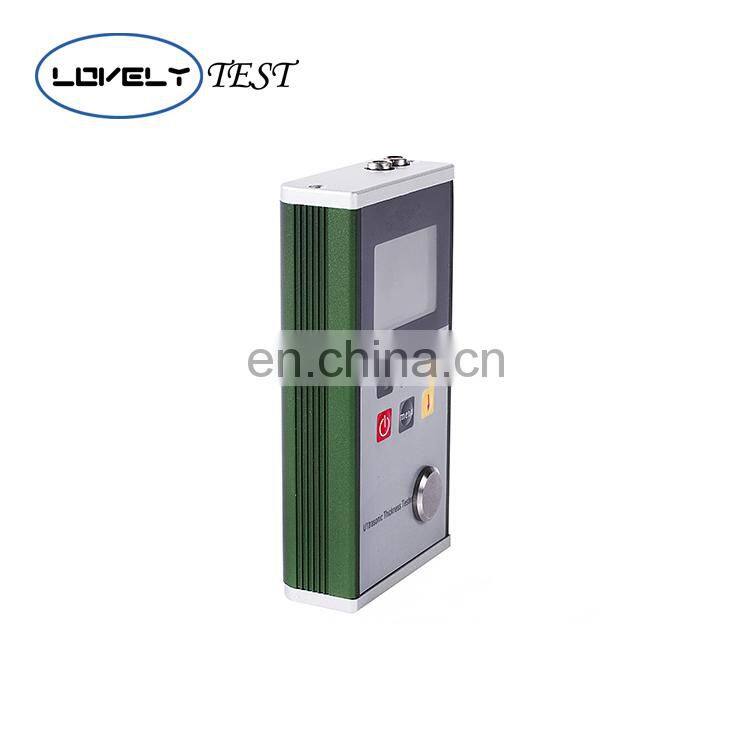

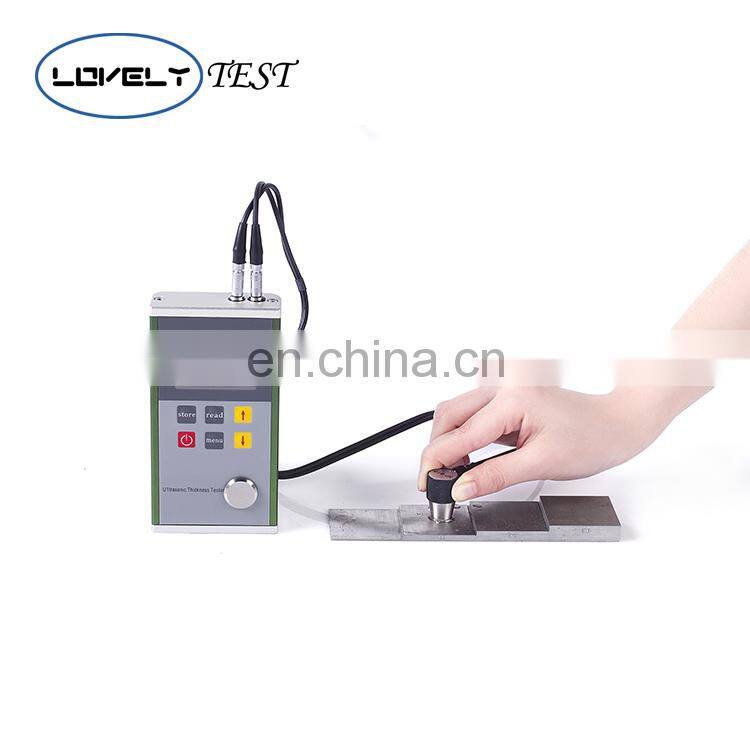

L332 Ultrasonic Thickness Gauge
Usage Overview
Product Usage
L332 Ultrasonic thickness gauge made is a simple-to-use, highly accurate, hand-held ultrasonic thickness gauge with the operating principle of ultrasonic wave measuring ,necessary specialized instrument for material protection This instrument can be widely used in the fields such as manufacturing, metal processing, chemistry and business inspecting Adapted to measure the thickness of good conductor for ultrasonic, such as metal(steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.
Apart from measuring the thickness of all sorts of materials, it can also make detection on various kinds of pipes and pressure containers of the manufacturing facilities about their thickness loss after corrosion.
Apart from measuring the thickness of all sorts of materials, it can also make detection on various kinds of pipes and pressure containers of the manufacturing facilities about their thickness loss after corrosion.
Product Description
1. Display contents: thickness value, coupling condition, power state, CAL calibration state, sound velocity.
2. Able to measure the ultrasonic velocity in turn if the thickness value is known in order to improve the measurement precision.
3.Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen.
4. Simply and easily operated.
5. Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
6. The test block of measuring sound velocity of known thickness.
7. Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve battery life.
8. Optional software to process the memory data on the PC.
9. Alarm function: setting the measurement limit and alarming for the results beyond the limit.
3.Zero adjustment: auto returning to zero when you press the key after the probe is put on the specimen.
4. Simply and easily operated.
5. Nonlinear correction, automatic compensation, in order to improve the measurement accuracy.
6. The test block of measuring sound velocity of known thickness.
7. Battery information indicates the rest capacity of the battery,Auto sleep and auto power off function to conserve battery life.
8. Optional software to process the memory data on the PC.
9. Alarm function: setting the measurement limit and alarming for the results beyond the limit.
Specification
Model | L332 |
Measuring range(mm) | 0.7~300 |
Resolution | 0.01mm |
Accuracy | ±(0.5%H+0.04)mm,H is thickness |
Velocity range(m/s) | 1000~9999 |
Velocity measurement | √ |
Storage | 2000 Groups |
Shell | Metal |
Operating Temperature | -10℃~60℃ |
Dampness | 20%~90% |
Dimensions | 130×70×25mm |
Power supply | 2 AAA alkaline batteries |
Weight | 0.42kg |
Standard Configuration | Main unit,Probes,Couplant bottle |
Optional Accessories | Probes,Couplant |

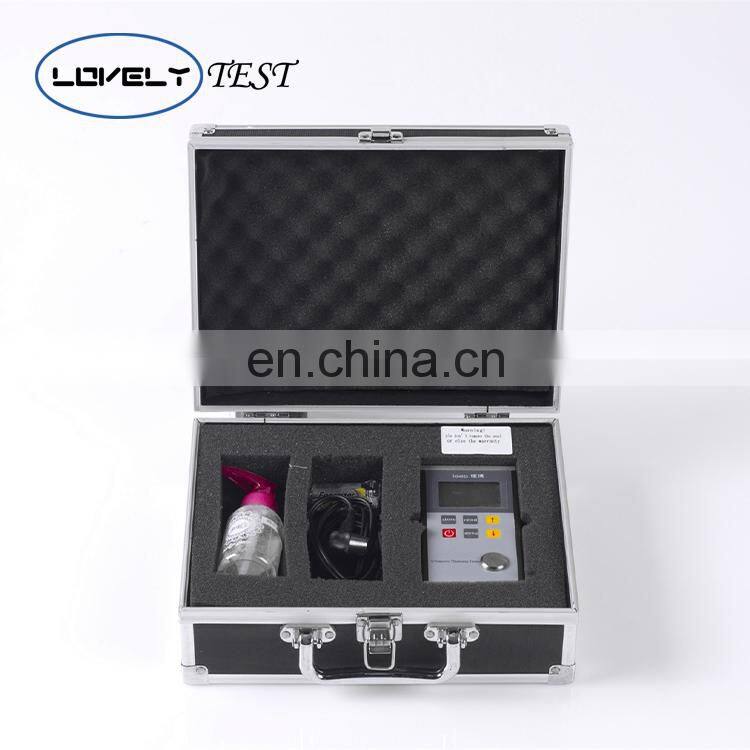

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
