Carbon Fiber Making Process High Temperature Carbonization Furnace With 2000 Celsius
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO287 & ISO1422 High Precision Moisture Content TesterNegotiableMOQ: 1 -
High Precision Portable SpectrophotometerNegotiableMOQ: 1
-
Digital Display Electronic Textile Thickness TesterNegotiableMOQ: 1
-
220g Capacity With Resolution of 0.0001g Analytical BalanceNegotiableMOQ: 1
-
JYW-200A Automatic Surface Tension TesterNegotiableMOQ: 1
Product Description

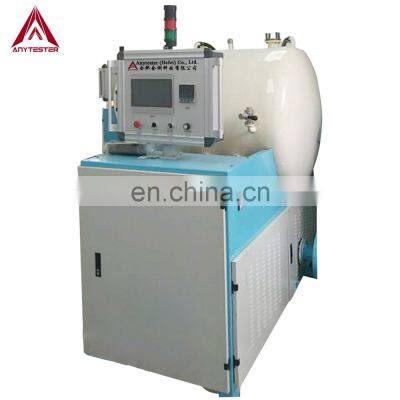

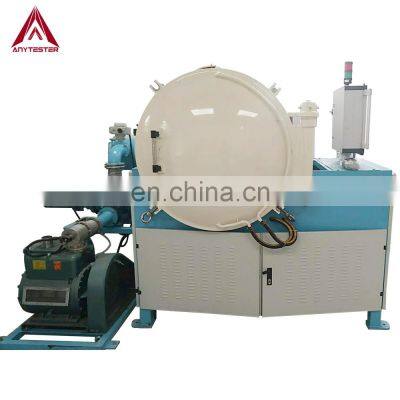

AT230 High-temperature Furnace is a laboratory type high temperature and high vacuum heat treatment furnace. The maximum
temperature can reach 2000 ℃, and the vacuum degree inside the cavity can reach 10-5Pa. This equipment is especially suitable for
advanced ceramic material heat treatment, refractory metal processing and carbon fiber graphitization.
High temperature and high vacuum, temperature up to 2000 ℃, vacuum degree in cavity up to 5Pa.
High purity graphite felt as insulation layer, isostatic pressure high density graphite as furnace material
Title goes here.
Temperature uniformity≦ 3℃
PLC intelligent early warning, alarm protection and power supply safety protection
Specification
Model |
AT230 |
Max. temperature |
2000℃（≦1hours） |
Furnace working mode |
Vacuum, N2, or Ar |
Continuous work temperature |
1900℃ |
Maximum heating rate |
20℃/min(RT-1900℃), 10℃/min(1900~2000℃) |
Temperature uniformity |
≦ 3℃ |
Control accuracy |
±1℃ |
Heating chamber size |
200*200*300mm |
Power supply |
AC380V 50Hz 60KW |
Weight |
Around 2000kg |
Packing & Delivery
Packaging |
||
Package Size
(cm)
|
760*1700*1860MM |
|
Weight |
300Kg |
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Item
|
T/T
|
EXW FOB CFR(C&F) CIF |
50% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
50% T/T in advance,paid the balance against copy of B/L
|
||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 50,000usd |
||||
Delivery Time |
60 days after receiving payment for one container |
||||
