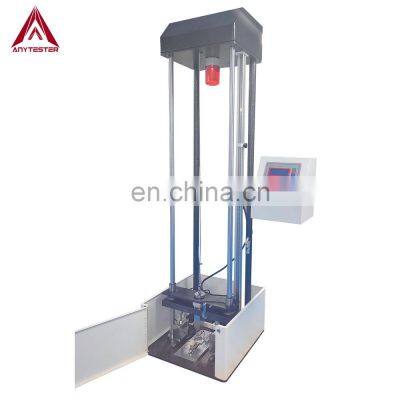

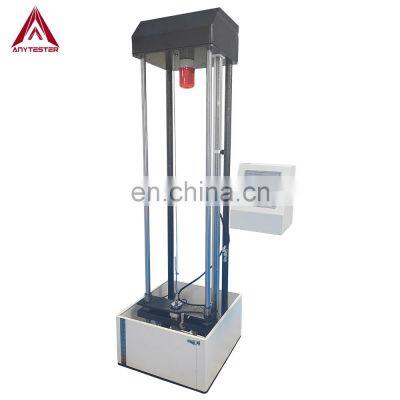

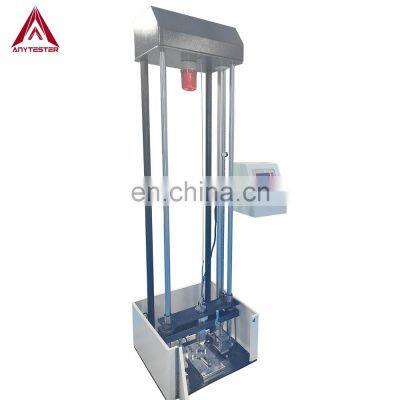

ENISO20344 Safety Shoes Impact Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Product Description
HY7610-II Safety Shoes Impact Tester in line with “national standard”, steel head of safety shoes placed in the bottom of machines red-edge, heavy hammer at a certain height free fall to impact, then check the degree of subsidence, the weight of heavy hammer is 23 ± 0.2kg . The sample fixed on the device, adjust the height of heavy hammer. Then make heavy hammer free-fall to impact test. After the test, remove the rubber to measure its size, the value ≥ 15mm is OK.
Standards |
||||||
EN ISO 20344 |
AS/NZS 2210.1 |
GB/T 20991 |
BS/EN 13274-3, EN 149 |
|||
CAN/CSA |
EN 12568 |
|||||
Note: For more standards, please contact us.
Futures
★ Machine equipped with impactor profile
★ Electronic height encoder
★ Rebound catcher to make sure the test value accurate
★ Electromagnet release device to protect operator
★ Electronic height encoder
★ Rebound catcher to make sure the test value accurate
★ Electromagnet release device to protect operator
Specification
Model |
HY7610-II |
Hammer |
20±0.2Kg, 22.7±0.2Kg, |
Impact of edge |
90°(R )3mm or other |
Impact energy |
(EN) 200J, (ANSI) 100±2J |
Horsepower |
HDC1/4HP |
Flexing grips |
12 sets |
Height of fall |
Not less than 1200mm |
Net weight |
190KG |
Volume |
75×85×163cm |
